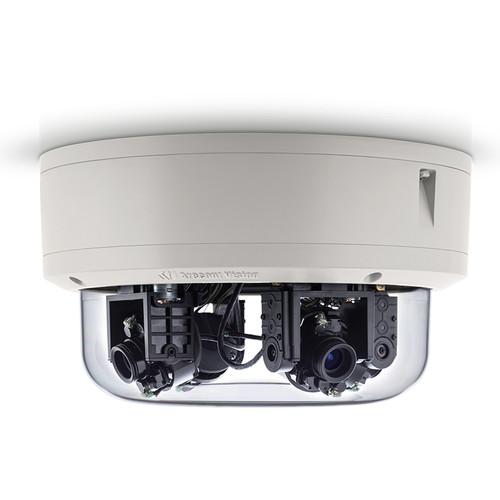

User Manual for Arecont Vision AV20375RS SurroundVideo Omni G3 20MP Outdoor Network Dome Camera with SNAPstream Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV20375RS SurroundVideo Omni G3
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV20375RS SurroundVideo Omni G3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The AV20375RS SurroundVideo Omni G3 20MP Outdoor Network Dome Camera from Arecont Vision comes with four 5MP sensors, each with a 2560 x 1920 resolution, for a total resolution of 20MP. With four individual gimbals, each of the sensors can be placed in any orientation around a 360° track for numerous viewing angles. Users can select a preset position to create a 360°, 270°, or 180° field of view, or use the intuitive interface to remotely pan, tilt, zoom, and focus each sensor. The camera also allows users to save up to two custom presets. Equipped with a mechanical IR cut filter, the camera assures good color rendition in up to 0.3 lux illumination. For applications with poor lighting conditions, binning mode increases the camera's low-light performance by combining pixels so that more light can be collected. The camera uses SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting the image quality. It offers improved streaming capabilities and transmits H.264 video to avoid straining the network. The camera interface or the AV IP Utility can be used for set up and updates, as can many MegaLab-certified VMS/NVR platforms. The security updates can be directly applied to the camera's Massively Parallel Image Processing (MPIP) architecture that runs on the Field Programmable Gate Array (FPGA) integrated circuit. Enclosed in an IP66-rated housing, the camera is suitable for use in both indoor and outdoor applications. The IK10-rated dome housing is suitable for resisting vandals since it can withstand impacts of 120 lb of force. Power can be supplied via a single PoE-compliant network cable or from an 18 to 48 VDC/24 VAC power supply. - Four individual camera gimbals can be independently placed in any orientation around a 360° track
- Preset positions to create a 360°, 270°, or 180° field of view, or save up to two custom presets
- SNAPstream (Advanced Compression Algorithm) technology reduces bandwidth without impacting image quality
- Forensic Zooming: zoom live or after the event while recording
- True day/night functionality with mechanical IR cut filter
- Binning mode for low-light performance
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, and Multicasting
- 18 to 48 VDC / 24 VAC PoE and auxiliary power
- Outdoor-rated IP66 and IK10 impact-resistant housing
In the Box Arecont Vision AV20375RS SurroundVideo Omni G3 20MP Outdoor Network Dome Camera with SNAPstream Auxiliary Power & Input/Output Cable Software CD Mounting Hardware Mounting Template Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV20375RS SurroundVideo Omni G3 20MP Outdoor Network Dome Camera with SNAPstream in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV20375 Specs | | | Image Sensor | 4 x 5 MP CMOS | | Optical Format | 1/2.5" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (Day Mode): 0.3 lux
Color Binning (Day Mode): 0.15 lux
B&W (Night Mode): 0.03 lux (IR sensitive) | | Resolution (H x V) | Full Field of View:
Total: 10,240 x 1920 V
Per Sensor: 2560 x 1920
1/4 Resolution:
Total: 5120 x 960
Per Sensor: 1280 x 960 | | Dynamic Range | 70.1 dB | | Frame Rates | At Maximum Resolution: 7 fps (10,240 x 1920)
Cropped: 10 fps (5120 x 960)
Binning Mode: 24 fps (5120 x 960) | | | | Focal Length | 3.3-6.6mm | | Aperture | f/1.7 | | Horizontal Field-of-View | 53 to 102° | | Maximum Distance | Distance to Pixel Density:
Tele:
30 ppf (100 ppm): 85' / 25.9 m
60 ppf (200 ppm): 42' / 12.8 m
90 ppf (300 ppm): 27.5' / 8.4 m
Wide:
30 ppf (100 ppm): 34' / 10.4 m
60 ppf (200 ppm): 15.5' / 4.7 m
90 ppf (300 ppm): 8.5' / 2.6 m | | | | Compression Type | H.264 (MPEG-4, Part 10)/MJPEG, 21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, IPv4, IPv6, QoS, 802.1x | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Optics | Remote focus, remote zoom, and pixel binning mode | | Picture-in-Picture | Simultaneous delivery of full field of view and zoomed images | | Shutter Speed | Programmable: Controls motion blur, 1 to 500 ms | | Motion Detection | Real time, 1024 detection zones | | Privacy Masking | Unlimited | | Mode | MoonLight: Extended exposure and noise cancellation | | Cropping | Flexible: Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264 | | Backlight Compensation | Auto multi-matrix white balance | | Control | Flicker 50/60 Hz selectable | | Image Rotation | 180° image flip or CorridorView (90, 180, and 270° image rotation) | | Scaling | Non-integer scaling down to 128 x 96 | | Noise Reduction | Low-light noise filter control | | Efficiency | SNAPstream (Smart Noise Adaptation and Processing)
Bit rate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | Auto Exposure | Supported | | AGC (Automatic Gain Control) | >120 dB | | Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint
Electronic pan, tilt, zoom (ePTZ)
Programmable shutter speed to help control motion blur | | | | Alarm I/O | 1 x Input
1 x Output | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Input | 18 to 48 VDC, 24 VAC | | Maximum Power Consumption | 12 W | | | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -40 to 140°F / -40 to 60°C | | | | Compliance | UL (CB) listed
FCC Compliance: 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
(CE) EN 55022:2010 Class A, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3: 2008, EN60950-1:2006+A11:2009+A1:2010+A12:2011, (UL) IEC 60950-1 (ed. 2) and IEC 60950-22 (ed. 1) | | Casing | Die-cast aluminum chassis with polycarbonate dome bubble | | Gimbal | Remotely adjustable, 3-axis with 360° pan and 135° tilt | | Dimensions | Camera Unit: Ø8.8 x 4.9" / Ø223.4 x 125.4 mm
Bubble Only: Ø7.2 x 2.3" / Ø183.3 x 59.3 mm | | Weight | 5.2 lb / 2.4 kg | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 11.2 x 11.0 x 7.4" |
