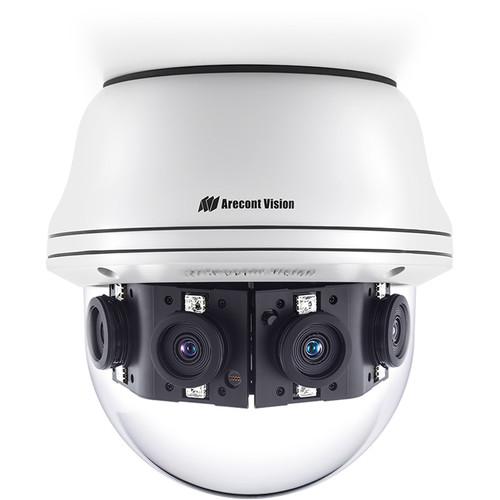

User Manual for Arecont Vision AV20CPD-118 Contera Panoramic 20MP Outdoor PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV20CPD-118 Contera Panoramic 20MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV20CPD-118 Contera Panoramic 20MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The AV20CPD-118 Contera Panoramic 20MP Outdoor PTZ Network Dome Camera from Arecont Vision has four 1/2.9" progressive scan CMOS sensors that each support up to 2592 x 1944 video at 30 fps. It can combine all 4 sensors to record panoramic video at a resolution of 10368 x 1944 at 30 fps. Eight IR LEDs project up to 100'. Each sensor features a 6mm fixed lens with an aperture of f/2.0 for a horizontal field of view of 180° and a vertical field of view of 30°. This camera has two-way digital audio streaming, an audio line output, and an alarm input and output. It is powered using PoE+ or by using a 12 VDC or 24 VAC adapter (sold separately). It is ONVIF compliant and features IP66 weatherproof protection and IK10 impact resistance. - Unlimited privacy masking
- Auto backlight compensation
- Auto and manual white balance mode
- SNAPstream+ smart noise adaptation and processing
- Bit rate and bandwidth limitation control
- Programmable brightness, contrast, sharpness, saturation, and hue
- Electronic pan, tilt, and zoom
- 16-digit ASCII character password
- Onscreen display including time, date, camera name, and custom text
- Live viewing/administrator for up to 10 clients
- Motion detection, tampering detection, and alarm event triggers
- Send/record message via email, FTP, NAS, and record JPG/MP4
- White (Pantone P179-1C) color
In the Box Arecont Vision AV20CPD-118 Contera Panoramic 20MP Outdoor PTZ Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV20CPD-118 Contera Panoramic 20MP Outdoor PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV20CPD Specs | | | Sensor | 4 x 5 MP 1/2.9" CMOS | | Lens Mount | M12 | | Focal Length | 6mm | | Maximum Aperture | f/2 | | Zoom | Digital | | Lens Field of View | Horizontal: 180°
Vertical: 30° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.05 Lux
B&W: 0.005 Lux | | Shutter Speed | 1/10,000 to 1/2 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 90° | | | | Streaming Resolution | 10368 x 1944 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, PCM | | External Audio Input | Terminal Block (Unspecified Pin Count) | | External Audio Output | Terminal Block (Unspecified Pin Count) | | | | Security | HTTPS, IEEE 802.1X, Password Protection | | Supported Protocols | DHCP, FTP, HTTP, IPv4/v6, NTP, ONVIF Profile S, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP, Zero Configuration | | | | Application Programming Interface (API) | ONVIF | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Recording Media | None | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 100' / 30.48 m | | Certifications | FCC (Part 15 Class A), UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, DC, PoE 802.3at (30 W) | | Power Consumption | PoE+: 24 W | | Material of Construction | Aluminum | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
