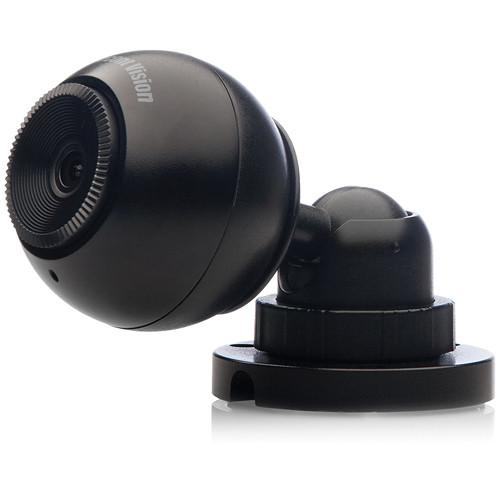

User Manual for Arecont Vision AV2145DN-3310-W MegaBall 2.07 Mp IP Day & Night Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV2145DN-3310-W MegaBall 2.07 Mp
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV2145DN-3310-W MegaBall 2.07 Mp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision MegaBall AV2145DN-3310-W 2.07 Mp IP Day & Night Camera is an all-in-one solution with an integrated megapixel IP camera and a 3.3 to 10mm varifocal lens. This wall mountable camera records high-definition videos at a resolution of up to 1920 x 1080. - Imaging
-
- 2.07 Mp Progressive Scan CMOS image sensor
- Full Resolution: 1920 (H) x 1080 (V) pixel array
- 1/2.7" optical format
- 3μm pixel pitch
- Dynamic range of 69 dB
- Maximum SNR of 45 dB
- Programmability
-
- Flexible cropping and low-light noise filter control
- Installer Friendly: External lens adjustment, cable management, 3-axis adjustment, and bubble options
- Easy 3-axis camera adjustment with 360° pan, 90° tilt, and 360° z-axis
- Casino mode maintains 30 fps
- Shutter Speed: 1 to 500 ms
- Backlight compensation and multi-matrix white balance
- On-camera motion detection and privacy mask with 1024 detection zones
- 50 / 60 Hz selectable flicker control
- Electronic PTZ (Pan, Tilt, Zoom) and image flip (180° rotation)
- MoonLight Mode: Extended exposure and proprietary noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Bitrate and bandwidth limitation control
- UL listed
- PSIA and ONVIF conformant
In the Box Arecont Vision AV2145DN-3310-W MegaBall 2.07 Mp IP Day & Night Camera Wall Mount Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV2145DN-3310-W MegaBall 2.07 Mp IP Day & Night Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV2145 Specs | | | Sensor | Type: 2.07 Mp CMOS image sensor
Format: 1/2.7" optical
Pixel: 3 μm pitch | | Mount | Type: Wall mount | | Minimum Illumination | Day & Night: 0 lux, IR sensitive | | Dynamic Range | 69 dB | | S/N Ratio | 45 dB | | Resolution | Full Field of View (FOV)
1920 x 1080 @ 2.07 Mp
960 x 540 @ 1/4 resolution
Cropped (FOV)
Flexible Cropping: Crop to 2 pixels in H.264 and 1 pixel in JPEG 1280 x 1024 @ 1.3 Mp
1280 x 720 HDTV - 720p
640 x 480 VGA | | Data Transmission | Video frame rate up to 31 fps at 1920 x 1080 | | Compression Type | H.264 (MPEG4, Part 10) / Motion JPEG
21 levels of quality | | Protocol | TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP image transmission protocols | | Network Interface | 100Base-T Ethernet Network Interface | | Streaming Capability | Multi-Streaming: 8 non-identical streams | | Electrical | General purpose opto-coupled input and output
Power over Ethernet (PoE): PoE 802.3af for camera
Auxiliary power 12 to 48 VDC, 24 VAC
Power Consumption: 5.1 W maximum | | Compliance | Class A FCC, Part 15; EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3 RoHS, REACH
CE Mark | | Standard | PSIA and ONVIF conformant | | Environmental | Operating Temperature: 23 to 122°F (-5 to 50˚C)
Stable Image Temperature: 32 to 122°F (0 to 50˚C)
Storage Temperature: -4 to 140°F (-20 to 60˚C)
Humidity: 0 to 90% (non-condensing) | | Mechanical | Casing: Plastic wall-mountable dome with polycarbonate bubble | | Dimensions (Ø x H) | 3 x 6.15" (76.2 x 156.2 mm) | | Weight | 1.20 lb (0.54 kg) | | | | Focal Length | 3.3 to 10 mm | | Aperture | F1.6 | | Field of View | Horizontal: 31 to 90° |
