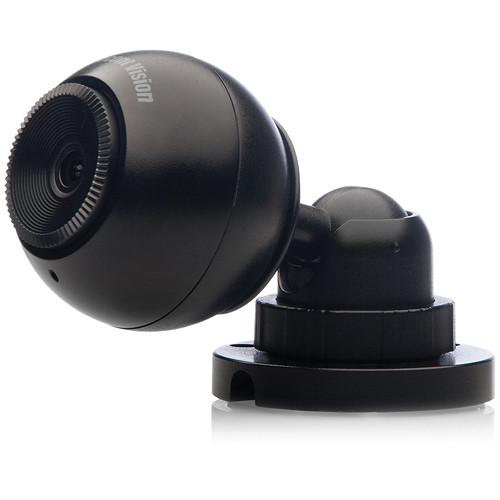

User Manual for Arecont Vision AV2146DN-3310-W 1080p WDR MegaBall Day Night Camera with 3.3 to 10mm Lens Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV2146DN-3310-W 1080p WDR MegaBall
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV2146DN-3310-W 1080p WDR MegaBall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision AV2146DN-3310-W 1080p WDR MegaBall Day/Night Camera with 3.3 to 10mm Lens is part of H.264 MegaBall Cameras. This fully compliant implementation of H.264 (MPEG-4, Part 10) provides full 1920 x 1080 megapixel resolution at full video frame rates of 30 fps.With the features of PSIA and ONVIF conformance, privacy masking, extended motion detection, and flexible cropping, it is a high sensitivity, PoE (IEEE 802.3af) compliant, day/night camera. Built with the MegaVideo processing technology, this camera offers high resolution and has the ability to output full real-time frame rates and deliver high-quality megapixel imaging. - All-in-one H.264 MegaBall indoor solution
- Installer Friendly: External lens adjustment, cable management, with or without bubble options
- Dual encoder H.264 (MPEG Part 10) and MJPEG
- PSIA and ONVIF conformant
- 1024 zones motion detection and privacy mask
- PoE & Auxiliary Power: 12 to 48VDC / 24VAC
- Casino mode always maintains 30 fps
- Flexible Cropping: Crop to 2 pixels in H.264 and 1 pixel in JPEG
- Low light noise filter control
- Auto backlight compensation and multi-matrix white balance
- MoonLight Mode: Extended exposure & proprietary noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Bit rate and bandwidth limitation control
- Auto adjustment between WDR and LDR modes
- General purpose opto-coupled input and output
In the Box Arecont Vision AV2146DN-3310-W 1080p WDR MegaBall Day/Night Camera with 3.3 to 10mm Lens Mounting Template 3 x Wood Screw Pack 3 x Dry Wall Anchor Security L-Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV2146DN-3310-W 1080p WDR MegaBall Day Night Camera with 3.3 to 10mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV2146 Specs | | | Pixel Density | 2.07 Mp | | Image Sensor | Progressive scan CMOS WDR image Sensor | | Shutter Speed | 1 to 500 ms | | Optical Format | 1/3.2" optical format | | Pixel Pitch | 2.2 μm | | Full Field of View Resolution | H x V: 1920 x 1080 | | Cropped (FOV) Resolution | 960 x 540 1.3 Mp: 1280 x 1024 720p HDTV: 1280 x 720 VGA: 640 x 480 | | Minimum Illumination | Color (non-binned): 0.3 lux @ F1.4
Day/Night: 0 lux, IR sensitive | | Wide Dynamic Range | up to 100 dB | | Signal to Noise Ratio | Maximum: 49 dB | | Video Frame Rate | 30 fps @ 1920x1080
41 fps @ 1280x1024 | | Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG 21 levels of quality | | Transmission Protocol | Unicast / Multicast: RTSP, RTP/TCP, RTP/UDP
Others: HTTP, DHCP, TFTP | | Ethernet Interface | Network: 100Base-T | | Multi-Streaming | 8 non-identical streams | | Motion Detection | On-Camera: up to 1024 detection zones | | White Balance | Auto multi-matrix white balance | | Flicker Filter Control | 50 / 60 Hz | | PTZ Control | Electronic pan, tilt, zoom | | Image Flip | Electronic: 180º rotation | | | | Lens Type | 3.3 to 10mm, F1.6 , ½.5" | | Field of View | H-FOV: 73 to 26° | | | | Power Over Ethernet | 802.3 af | | Auxiliary Power Input | 12 to 48 VDC and 24 VAC | | Power Consumption | 5.43 W | | | | Certification | CE Mark,WEEE | | Compliance | Class A FCC, Part 15; EN55022 Class A, RoHS, REACH,EN55024, EN61000-3-2, EN61000-3-3, EN60950 | | Standard | PSIA and ONVIF conformant | | | | Operating Temperature | 23 to 140°F (-5 to 60°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 0 to 90% (non condensing) | | | | Casing | Die-cast aluminum 3.0" (76.2 mm) metal ball and mount | | Mount | Embedded in-ceiling mount | | Adjustments | Camera: 3-axis camera adjustment with 360° pan, 90° tilt & 360° z-axis
Lens: External lens adjustment for zoom, focus and iris | | Dimensions | Diameter: Ø3.0 x 6.15" (76.2 x 6.15 mm) |
