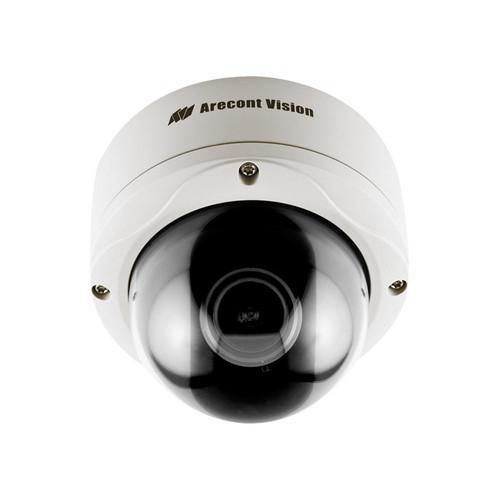

User Manual for Arecont Vision AV2155DN-16 IP MegaDome Day Night Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV2155DN-16 IP MegaDome Day
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV2155DN-16 IP MegaDome Day contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision AV2155DN-16 IP MegaDome Day/Night Camera (2 MP) is an all-in-one solution that includes a megapixel camera, 8-16mm IR corrected varifocal lens, and vandal-resistant dome enclosure. The camera with a 2 Megapixel CMOS image sensor delivers clear images in H.264 and MJPEG formats at a resolution of up to 1600(H) x 1200(V) at 24 fps. The camera uses a motorized IR cut filter to switch between color and B&W as per changes in ambient lighting. With easily adjustable 3-axis gimbal, the MegaDome camera allows for 360° pan, 90° tilt rotation, and 360° z-axis. With a minimum illumination of 0.1 lux at f/1.4, the day/night camera delivers clear images even in low light conditions. Additionally, MoonLight mode can be activated in low light areas to capture more light. The multi-streaming feature enables you to stream up to 8 concurrent non-identical streams with different frame-rates, bit-rates, resolutions, and picture quality. Forensic zooming allows the IP camera to become a replacement for other PTZ devices and also allows you to zoom either live recordings or 'after event' video when recording the full field-of-view in HD. This is useful when CCTV video footage needs to be previewed and analyzed in criminal and other legal cases. The on-camera motion detection feature consists of 64 detection zones. When motion is detected, either an audio alarm triggers or recording starts. The automatic gain control adjusts the signal strength to maintain constant brightness level and backlight compensation adjusts video gain to correct the exposure when the object being captured is in front of a bright light source. With the auto multi-matrix white balance feature, the camera takes a standard white color reference to adjust the RGB (red, green, and blue) colors to produce good quality images in different light conditions. The programmable shutter speed helps you to control motion blur, resulting in crisp and clear images. A recording ability at 1/4 resolution helps the camera save bandwidth and storage space. The IP66-rated vandal-resistant dome housing is made of aluminum and features a 4" polycarbonate dome bubble. - 2 megapixel CMOS image sensor delivers clear images in H.264 and MJPEG formats at resolution of 1600(H) x 1200(V) at 24 fps
- 8-16 mm IR corrected varifocal lens
- Minimum illumination of 0.1 lux at f/1.4
- Motorized IR cut filter to switch between color and B&W as per changes in ambient lighting
- MoonLight mode - extended exposure and proprietary noise cancellation
- Multi-streaming - enables you to stream up to 8 concurrent non-identical streams with different frame-rates, bit-rates, resolutions, and picture quality
- Forensic zooming - allows you to zoom either live recordings or 'after event' video when recording the full field-of-view in HD
- On-camera motion detection
- Automatic gain control - adjusts the signal strength to maintain constant brightness level
- Backlight compensation adjusts video gain to correct the exposure when the object being captured is in front of a bright light
- Auto multi-matrix white balance - takes a standard white color reference to adjust the RGB colors to produce good quality images in different light conditions
- Programmable shutter speed
- Electronic image flip - 180° rotation
- Resolution windowing down to 32 x 32 pixel window
- Recording ability at 1/4 resolution helps the camera save bandwidth and storage space
- Image cropping allows streaming of full density partial images
- IP66-rated vandal-resistant dome
- 4" polycarbonate dome bubble
In the Box Arecont Vision AV2155DN-16 IP MegaDome Day/Night Camera (2 MP) Limited 1-Year Warranty Guides & Manuals bvsyxrbyayarsysraeavyftyzzveaxftbc Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV2155DN-16 IP MegaDome Day Night Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Arecont Vision AV2155DN-16 IP MegaDome Day Night Camera can be downloaded in PDF format at the link stated below.
Technical parametersArecont Vision AV2155 Specs | Sensor | Type: 2 megapixel CMOS image sensor
Format: 1/2" optical format
Pixel: 1600 x 1200 pixel array
Filter: Bayer mosaic RGB filter | | Lens | 8-16 mm IR corrected Megapixel Varifocal Lens | | Minimum Illumination | Color: 0.1 Lux @ F1.4
Day/Night: 0 Lux, IR sensitive | | Dynamic Range | 61 dB | | Signal to Noise Ratio | 50 dB - maximum | | Resolution | Full Field of View (FOV) Resolutions
1600 x 1200 at 2 megapixel
800 x 600 at 1/4 resolution
Cropped Field of View Resolution
1280 x 1024 at 1.3 MP
1280 x 720 at HDTV - 720p
1024 x 768 at XGA
800 x 600 at SVGA
704 x 570 at PAL
704 x 480 at NTSC
640 x 480 at VGA
352 x 288 at CIF
320 x 240 SIF | | Data Transmission | Video frame rate up to:
24 fps at 1600 x 1200
32 fps at 1280 x 1024 | | Compression | H.264 (MPEG4, Part 10)
Motion JPEG
21 levels of quality | | Network Protocol | TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP image transmission protocols | | Network Interface | 100Base-T Ethernet Network Interface | | Data Rate | Bit rate control from 100Kbps to 10Mbps
Bit rate control available for full view, multi view, and archive
Unthrottled data rate in MJPEG up to 55Mbps | | Streaming | Multi-streaming: 8 non-identical streams | | Settings | Auto Exposure (AE) and Gain Control (AGC) >120dB
On-camera real-time motion detection with 64 detection zones
Auto multi-matrix white balance
50/60Hz selectable flicker control
Electronic pan, tilt, zoom (PTZ)
Electronic image flip - 180 degree rotation
Resolution windowing down to 32 x 32 pixels window
Programmable shutter speed to help control motion blur
MoonLight mode - extended exposure and proprietary noise cancellation
Programmable resolution, brightness, saturation, gamma, sharpness, tint
Picture-in-Picture: simultaneous delivery of full field of view and zoomed images
Bandwidth & storage savings by running at 1/4 resolution | | Electrical | General purpose opto-coupled input and output
Power over Ethernet (PoE): PoE 802.3af
Auxiliary power: 12-48VDC and 24VAC
Power consumption: 5 Watts maximum | | Regulatory | FCC, Class A
CE and RoHS compliant | | Environmental | IP66 weatherproofing standard
Operating temperature without heater: 32 ~ 122°F (0 ~ 50°C)
Operating temperature with heater: -22 ~ 122°F (-30 ~ 50°C)
Storage temperature: -4 ~ 140°F (-20 ~ 60°C)
Humidity: 0 ~ 90% (non condensing) | | Adjustments | Easily adjustable 3-axis camera gimbal with 360° pan, 90° tilt and 360° z-axis | | Construction | Die-cast aluminum chassis with polycarbonate dome bubble | | Dimensions (Diam. x H) | 5.5 x 4.9" (140 x 125mm)
Bubble Only: 4 x 2.4" (102 x 62mm) | | Weight | 2 lbs (0.9kg) |
