Arecont Vision AV2215PM-S MegaVideo G5 2MP

Search your instruction manual in PDF to download

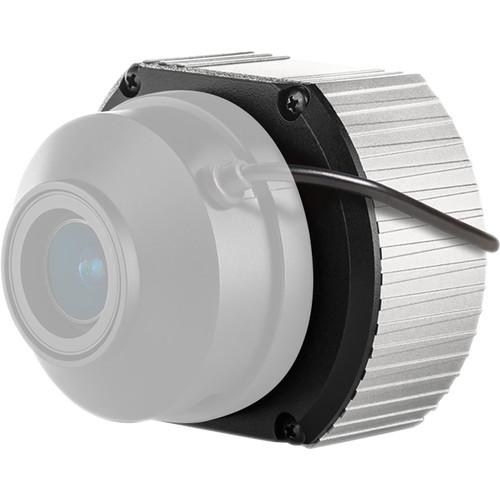

User Manual for Arecont Vision AV2215PM-S MegaVideo G5 2MP Network Box Camera

Click to enlarge the picture
Arecont Vision AV2215PM-S MegaVideo G5 2MP Network Box Camera Contents of the user manual for the Arecont Vision AV2215PM-S MegaVideo G5 2MP
  • Product category: Wired IP Cameras Arecont Vision
  • Brand: Arecont Vision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Arecont Vision Wired IP Cameras

User manual for the Arecont Vision AV2215PM-S MegaVideo G5 2MP contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Arecont Vision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!



Product description

Gain the upper hand in difficult lighting conditions with the AV2215PM-S MegaVideo G5 2MP Network Box Camera from Arecont Vision (lens available separately). Featuring a mechanical IR cut filter, the AV2215PM-S offers true day/night functionality with light sensitivity down to 0.02 lux in night mode. Additionally, the AV2215PM-S is compatible with P-iris lenses to enable precise aperture control and adaptability to dynamic light situations.

Versatile in use, the camera offers a Casino Mode that provides a continuous 30 fps frame rate for scenes typical in gaming and banking applications. An integrated SD card slot supports up to 32GB of convenient onboard storage. The camera can be powered via Power-over-Ethernet or a 12-48 VDC, 24 VAC power supply. ONVIF Profile S and PSIA compliance ensures compatibility with a wide range of surveillance devices.
  • 1920 x 1080 at 30 fps
  • P-Iris control for enhanced depth-of-field and image clarity
  • True day/night functionality with mechanical IR cut filter
  • CorridorView allows 90° image rotation for better coverage in hallways and corridors
  • Casino Mode for continuous 30 fps frame rate required by gaming industry regulations
  • Privacy mask, motion detection, flexible cropping, bit rate control, multi-streaming, and forensic zooming
  • Non-integer scaling
  • Dual encoded H.264/MJPEG
  • Network protocols include 802.1x, DHCP, QoS, and IPv6
  • PoE and 12 to 48 VDC / 24 VAC auxiliary power
  • SDHC card slot for onboard storage
  • Compatible with motorized P-iris, manual varifocal, and fixed focal lenses (available separately)
  • Small format allows for flexible mounting options
  • Can be used with Arecont Vision housings or as a standalone camera
In the Box Arecont Vision AV2215PM-S MegaVideo G5 2MP Network Box Camera
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Arecont Vision AV2215PM-S MegaVideo G5 2MP Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Arecont Vision AV2215 Specs

    Sensor 3 MP 1/3" CMOS
    Lens Mount CS
    IR Cut Filter Mechanical
    Day/Night True
    Minimum Illumination Color: 0.2 Lux
    B&W: 0.02 Lux
    Shutter Speed .001 to 0.5 Seconds
    Streaming Resolution 1920 x 1080 at 30 fps
    Supported Video Compression H.264, MJPEG
    Multi-View Streaming Yes, 8 Streams
    Event Trigger None
    Recording Media SD (Up to 32 GB)
    Pan/Tilt None
    Alarm I/O 1 / 1
    I/O Connections 1 x RJ45
    1 x 4-Pin Terminal Block
    IR Illuminators None
    Certifications UL, as per Manufacturer
    Internal Storage None
    Power Source AC, DC, PoE 802.3af (15 W)
    Power Consumption 6.9 W
    Material of Construction Aluminum
    Operating Temperature 23 to 122°F / -5 to 50°C
    Storage Temperature -4 to 140°F / -20 to 60°C
    Operating Humidity 0 to 90%
    Dimensions H: 2.5 x W: 3.0 x L: 1.2" / H: 6.3 x W: 7.6 x L: 3.0 cm
    Weight 0.6 lb / 272.2 g
    Package Weight 0.57 lb
    Box Dimensions (LxWxH) 4.15 x 4.05 x 3.75"
