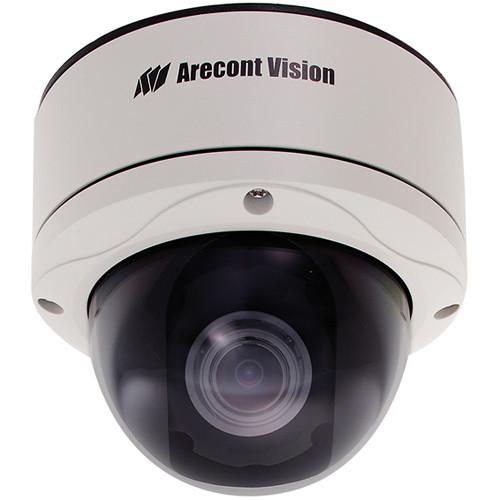

User Manual for Arecont Vision AV2255AM-HK 1080p Day Night IP MegaDome 2 Camera with Heater Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV2255AM-HK 1080p Day Night
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV2255AM-HK 1080p Day Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision AV2255AM-HK 1080p Day/Night IP MegaDome 2 Camera with Heater is an all-in-one innovative security device designed to record high-definition color videos with resolution up to 1920 x 1080. With its 2.07 MP CMOS sensor, the camera can capture excellent imagery of the surveillance area at up to 32 fps. Integrated casino mode ensures that the camera maintains continuous full-motion recording at 30 fps.
Featuring Day/Night functionality with removable IR filter operation, the camera switches between color and B&W as per changes in the ambient lighting, ensuring accurate color reproduction in daylight and enhanced B&W images at night.
With the forensic zooming feature, the MegaDome Camera allows you to zoom in for post-event investigations when CCTV video footage needs to be previewed and analyzed in criminal and other legal cases. Video footage can be stored in either MJPEG or H.264 (MPEG4, Part 10) compression format. The latter uses less network bandwidth and ensures that your file size is small, without compromising on quality. For efficient data management, you can send videos using up to 8 concurrent, non-identical streams with different frame or bit rates, resolutions, and picture quality.
With up to 1024 distinct motion detection zones, the camera triggers an alarm if any movement is detected in these zones. In addition, you can protect the privacy of people in the surveillance area by blocking multiple regions of a video in almost any arbitrary shape.
The Power over Ethernet (PoE) feature transfers both power and data over a single Ethernet network cable, eliminating the need to hard-wire the camera or use a separate power supply. The MegaDome 2 IP camera is encased in a die-cast aluminum chassis with a 4” vandal-resistant polycarbonate dome bubble. This enables you to safely install the camera indoors or outdoors and also ensures uninterrupted surveillance in harsh weather conditions. An integrated heater is used to regulate the internal temperature of the camera, enabling it to operate in temperatures ranging from -40 to 122°F (-40 to 50°C). - Imaging
-
- Records high-definition color videos at resolution up to 1920 x 1080 at 32 fps
- 2.7 MP CMOS sensor
- Minimum illumination of 0.1 lux (non-binned) ensures clear images even in low-light conditions
- Remote focus, zoom and auto-iris lens
- True day/night functionality with removable IR cut filter
- Data Transmission
-
- Dual encoder H.264 (MPEG Part 10) and MJPEG
- Multi-streaming function enables you to send videos using up to 8 concurrent, non-identical streams with different frame or bit rates, resolutions, and picture quality
- Forensic Zooming
-
- Allows you to zoom in for post-event investigations when CCTV video footage needs to be previewed and analyzed in criminal and other legal cases
- Programmability
-
- Flexible cropping to eliminate unnecessary portions of an image
- Casino mode ensures that the camera maintains 30 fps
- Bit rate control feature to maintain the required bandwidth and storage size
- Backlight compensation adjusts video gain to correct the exposure when the object being captured is in front of a bright light
- Automatic gain control adjusts the signal strength to maintain a constant brightness level
- Auto multi-matrix white balance
- Programmable resolution, brightness, saturation, gamma, sharpness, and tint
- Picture-in-Picture offers simultaneous delivery of full field-of-view and zoomed images
- Programmable shutter speed to help control motion blur
- On-camera real-time motion detection with 1024 detection zones with extended motion detection grid
- Privacy masking allows you to block videos in multiple regions in almost any arbitrary shape
- Electronic 180° image flip
- 50/60Hz selectable flicker control ensures seamless viewing of moving images
- Electronic pan, tilt, and zoom (PTZ)
- MoonLight mode extends exposure and proprietary noise cancellation
- Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264
- Bandwidth and storage savings by running at 1/4 resolution
- Housing
-
- Die-cast aluminum chassis with 4” vandal-resistant polycarbonate dome bubble
- IP66-rated / weatherproof, vandal-resistant IK10 rated
- Easily adjustable 3-axis camera gimbal with 360° pan, 90° tilt & 360° z-axis
- Power Supply
-
- Power over Ethernet (PoE) transfers both power and data over a single Ethernet network cable, eliminating the need to hard-wire the camera or use a separate power supply
- Auxiliary power - 12 to 48 VDC / 24 VAC
- Heater
-
- Regulates the internal temperature of the camera
- Enabling it to operate in temperatures ranging from -40 to 122°F (-40 to 50°C)
In the Box Arecont Vision AV2255AM-HK 1080p Day/Night IP MegaDome 2 Camera with Heater Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV2255AM-HK 1080p Day Night IP MegaDome 2 Camera with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV2255 Specs | Sensor | Type: 2.07 MP CMOS image sensor
Format: 1/2.7" optical
Pixel: 3 μm pitch
Filter: Bayer mosaic RGB | | Lens | 3 to 9 mm, F1.2, remote focus, zoom and auto-iris lens
H-FOV: 115 to 37° | | Minimum Illumination | Color (non-binned): 0.1 lux at F1.2
Day/Night: 0 lux, IR sensitive | | Dynamic Range | 69 dB | | S/N Ratio | 45 dB | | Resolution | Full Field of View (FOV)
1920 x 1080 at 2.07 MP
960 x 540 at 1/4 resolution
Cropped (FOV)
Flexible Cropping - Crop to 2 pixels in H.264 and 1 pixel in JPEG
1280 x 1024 at 1.3MP
1280 x 720 at HDTV-720p
640 x 480 at VGA | | Data Transmission | 32 fps at 1920 x 1080 | | Compression | H.264 (MPEG4, Part 10) / Motion JPEG
21 levels of quality | | Protocol | TFTP, HTTP, RTP/TCP, RTP/UDP image transmission protocols | | Network Interface | 100Base-T Ethernet Network Interface | | Data Rate | Bit rate control from 100 Kbps to 10 Mbps | | Multi-Streaming | 8 non-identical streams | | Electrical | General purpose: opto-isolated input and output
Power over Ethernet (PoE): PoE 802.3af for camera
Auxiliary power: 12 to 48V DC, 24V AC
Power consumption: 12.8 W | | Heater | Power output: 2.28 W Max
Switch: On: 62.6°F (17°C), Off: 86°F (30°C)
Total PoE solution: No external power requirement | | Compliance | Class A FCC, Part 15; EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RoHS, REACH, IK-10 (EN62262), IP66 (EN60529)
Marks: cULus, CE Mark
PSIA compliance | | Environmental | Operating temperature: -40 to 122°F (-40 to 50°C)
Stable image temperature: 32 to 122°F (0 to 50˚C)
Storage temperature: -40 to 140°F (-40 to 60˚C)
Humidity: 0 to 90% (non condensing) | | Casing | Die-cast aluminum chassis with 4" polycarbonate dome bubble | | Ratings | IP66 weatherproof standard
Vandal-resistant, IK10 rated | | Dimensions (Ø x H) | 5.5 x 4.9" (140.3 x 124.6 mm)
Bubble only: 4.0 x 2.4" (102 x 61.8 mm) | | Weight | 2.25 lb (1.02 kg) |
