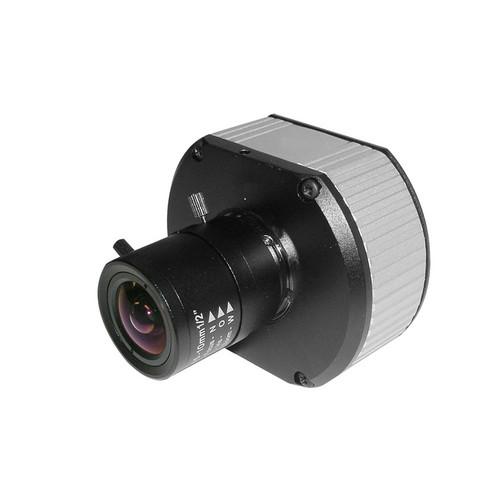

User Manual for Arecont Vision AV3110 3 Megapixel IP MegaVideo Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV3110 3 Megapixel IP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV3110 3 Megapixel IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision AV3110 3 Megapixel IP MegaVideo Camera (Color) with a 1/2" CMOS image sensor delivers clear images in MJPEG format and maintains full motion progressive scan 2048 x 1536 video at 15 fps to deliver high-quality imagery. With a minimum illumination of 0.2 lux at f/1.4, the color camera delivers clear images even in low light conditions. Additionally, MoonLight mode can be activated in low light areas to capture more light. The multi-streaming feature enables you to stream up to 8 concurrent non-identical streams with different frame-rates, bit-rates, resolutions, and picture quality. Forensic zooming allows the camera to become a replacement for other PTZ devices and also allows you to zoom either live recordings or 'after event' video when recording the full field-of-view in HD. This is useful when CCTV video footage needs to be previewed and analyzed in criminal and other legal cases. The on-camera motion detection feature consists of 64 detection zones. When motion is detected, either an audio alarm triggers or recording starts. The camera is powered by PoE, which supplies power to the camera from the network itself without needing any extra wiring for auxiliary power outlets. Automatic gain control adjusts the signal strength to maintain constant brightness level and backlight compensation adjusts video gain to correct the exposure when the object being captured is in front of a bright light. With the auto multi-matrix white balance feature, the camera takes a standard white color reference to adjust the RGB (red, green, and blue) colors to produce good quality images in different light conditions. The programmable shutter speed helps you control motion blur, resulting in crisp and clear images. A recording ability at 1/4 resolution helps the camera save bandwidth and storage space. - 1/2" CMOS image sensor delivers clear images in MJPEG format
- Maintains full motion progressive scan 2048 x 1536 video at 15 fps to deliver high-quality images
- Minimum illumination of 0.2 lux at f/1.4
- MoonLight mode - extended exposure and proprietary noise cancellation
- Multi-streaming - enables you to stream up to 8 concurrent non-identical streams with different frame-rates, bit-rates, resolutions, and picture quality
- Forensic zooming - allows you to zoom either live recordings or 'after event' video when recording the full field-of-view in HD
- On-camera motion detection
- PoE - supplies power to the camera from the network itself without any extra wiring for auxiliary power outlets
- Automatic gain control - adjusts the signal strength to maintain constant brightness level
- Adjusts video gain to correct the exposure when the object being captured is in front of a bright light
- Auto multi-matrix white balance - takes a standard white color reference to adjust the RGB colors to produce good quality images in different light conditions
- Programmable shutter speed
- Electronic image flip - 180° rotation
- Resolution windowing down to 32 x 32 pixel window
- Picture-in-picture - simultaneous delivery of full field-of-view and zoomed images
In the Box Arecont Vision AV3110 3 Megapixel IP MegaVideo Camera (Color) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV3110 3 Megapixel IP MegaVideo Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3110 Specs | Sensor | Type: 3 megapixel CMOS image sensor
Format: 1/2" optical format
Pixel: 1280 x 1024 pixel array
Filter: Bayer mosaic RGB filter
Pixel: 3.2 μm pixel pitch | | Lens Mount | C/CS | | Minimum Illumination | Color: 0.2 Lux @ F1.4
Day/Night: 0 Lux, IR sensitive | | Dynamic Range | 61 dB | | Signal to Noise Ratio | 49 dB - maximum | | Resolution | Full Field of View (FOV) Resolutions
2048 x 1536 at 3 megapixel
1024 x 768 at 1/4 resolution
Cropped Field of View Resolution
1920 x 1200 at WUXGA
1920 x 1080 at HDTV - 1080p
1600 x 1200 at 2 MP
1280 x 1024 at 1.3 MP
1280 x 720 at HDTV - 720p
1024 x 768 at XGA
800 x 600 at SVGA
704 x 570 at PAL
704 x 480 at NTSC
640 x 480 at VGA
352 x 288 at CIF
320 x 240 SIF | | Data Transmission | Video frame rate up to:
15 fps at 2048 x 1536
20 fps at 1920 x 1200
22 fps at 1920 x 1080
24 fps at 1600 x 1200
32 fps at 1280 x 1024 | | Compression | Motion JPEG with 21 levels of quality | | Network Protocol | TFTP and HTTP image transmission protocols | | Network Interface | 100Base-T Ethernet Network Interface | | Data Rate | Data rate up to 55Mbps | | Streaming | Multi-streaming: 8 non-identical streams | | Settings | Auto Exposure (AE) and Gain Control (AGC) >120dB
On-camera real-time motion detection with 64 detection zones
Auto backlight compensation
Auto multi-matrix white balance
50/60Hz selectable flicker control
Electronic pan, tilt, zoom (PTZ)
Electronic image flip - 180 degree rotation
Resolution windowing down to 32 x 32 pixels window
Programmable shutter speed to help control motion blur
MoonLight mode - extended exposure and proprietary noise cancellation
Programmable resolution, brightness, saturation, gamma, sharpness, tint
Picture-in-Picture: simultaneous delivery of full field of view and zoomed images
Bandwidth & storage savings by running at 1/4 resolution | | Electrical | General purpose opto-coupled input and output
Power over Ethernet (PoE): PoE 802.3af
Power consumption: 3 Watts maximum | | Regulatory | FCC, Class A
CE and RoHS compliant | | Environmental | Operating temperature: 32 ~ 122°F (0 ~ 50°C)
Storage temperature: -4 ~ 140°F (-20 ~ 60°C )
Humidity: 0 ~ 90% (non-condensing) | | Dimensions (WxHxD) | 3 x 2.5 x 1.3" (76 x 64 x 32mm) - w/o lens | | Weight | 5.8 oz (164g) - w/o lens | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 4.1 x 4.0 x 3.7" |
