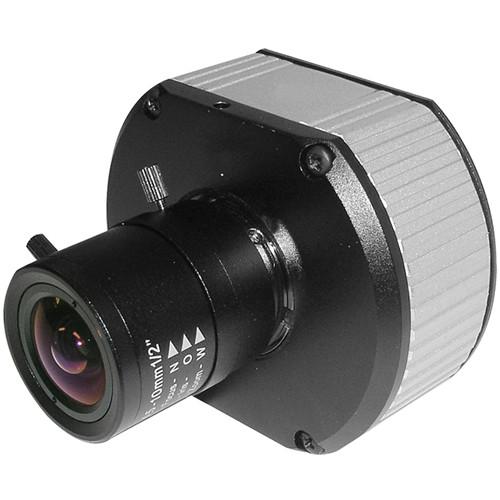

User Manual for Arecont Vision AV3115DNAIV1 3 MP H.264 IP MegaVideo Day & Night Camera with Auto-Iris Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV3115DNAIV1 3 MP H.264
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV3115DNAIV1 3 MP H.264 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision AV3115DNAIV1 3 MP H.264 IP MegaVideo Day & Night Camera with Auto-Iris is a 3 megapixel IP camera that records high-definition videos at a resolution of up to 2048 x 1536. - Imaging
-
- 3 MP effective CMOS image sensor
- Full Resolution: 2048 (H) x 1536 (V) pixel array
- 1/2.5" optical format
- 2.2 µm pixel pitch
- Dynamic range of 70.1 dB
- Maximum SNR of 45 dB
- Programmability
-
- Low-light noise filter control
- True Day / Night functionality with removable IR cut filter
- Bit rate and bandwidth limitation control
- On-camera real-time motion detection and privacy mask with 1024 detection zones
- Backlight compensation
- Auto multi-matrix white balance
- 50 / 60 Hz selectable flicker control
- Electronic PTZ (Pan, Tilt, Zoom)
- Electronic Image Flip: 180˚ rotation
- Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264
- Programmable shutter speed to help control motion blur
- MoonLight Mode: Extended exposure and noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Simultaneous delivery of full field of view and zoomed images
- Bandwidth and storage savings by running at 1/4 resolution
In the Box Arecont Vision AV3115DNAIV1 3 MP H.264 IP MegaVideo Day & Night Camera with Auto-Iris Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV3115DNAIV1 3 MP H.264 IP MegaVideo Day & Night Camera with Auto-Iris in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Arecont Vision AV3115DNAIV1 3 MP H.264 IP MegaVideo Day & Night Camera with Auto-Iris can be downloaded in PDF format at the link stated below.
Technical parametersArecont Vision AV3115 Specs | Sensor | Type: 3 MP effective CMOS image sensor
Format: 1/2.5" optical format
Pixel: 2.2 μm pixel pitch | | Lens Mount | C/CS | | Maximum Resolution | Full FOV: 1920 (H) x 1080 (V)
1/4 Resolution: 960 (H) x 540 (V) | | Minimum Illumination | Day / Night: 0 lux, IR sensitive | | Dynamic Range | 70.1 dB | | S/N Ratio | Maximum SNR of 45 dB | | Resolution | Cropped (FOV) Resolution
Flexible Cropping: Crop to 2 pixels in H.264 and 1 pixel in JPEG
1920 x 1200 WUXGA
1920 x 1080 HDTV - 1080p
1600 x 1200 @ 2 MP
1280 x 1024 @ 1.3 MP
1280 x 720 HDTV - 720p
640 x 480 VGA | | Data Transmission | Video Frame Rate up to:
21 fps @ 2048 x 1536
31 fps @ 1600 x 1200
29 fps @ 1920 x 1080
41 fps @ 1280 x1024
In Binned Mode up to:
46 fps @ 1024 x 768
64 fps @ 800 x 600
64 fps @ 860 x 540
64 fps @ 640 x 512 | | Compression Type | H.264 (MPEG4, Part 10) / Motion JPEG
21 levels of quality | | Protocol | TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP image transmission protocols | | Network Interface | 100Base-T Ethernet Network Interface | | Streaming Capability | Multi-Streaming: 8 non-identical streams | | Electrical | General purpose opto-coupled input and output
Power over Ethernet (PoE): PoE 802.3af for camera
Auxiliary power 12 to 48 VDC, 24 VAC
Power Consumption: 5.1 W maximum | | Compliance | Class A FCC, Part 15; EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3 RoHS, REACH, CE Mark, UL Listed | | Standard | PSIA and ONVIF conformant | | Environmental | Operating Temperature: 23 to 122°F (-5 to 50˚C)
Stable Image Temperature: 32 to 122°F (0 to 50˚C)
Storage Temperature: -4 to 140°F (-20 to 60˚C)
Humidity: 0 to 90% (non-condensing) | | Dimensions (W x H x D) | 3 x 2.5 x 1.25" (76 x 63.5 x 31.7 mm) without lens | | Weight | 5.8 oz (164 g) without lens | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 4.0 x 3.9 x 3.6" |
