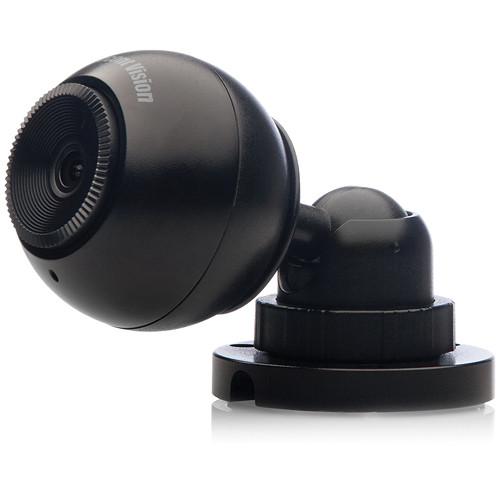

User Manual for Arecont Vision AV3146DN-3310-W Megaball 3Mp IP Day Night WDR Indoor Dome Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV3146DN-3310-W Megaball 3Mp IP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV3146DN-3310-W Megaball 3Mp IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The AV3146DN-3310-W Megaball 3Mp IP Day/Night WDR Indoor Dome Camera from Arecont Vision is an all-in-one camera and is part of H.264 MegaBall camera series. This fully compliant implementation of H.264 (MPEG-4, Part 10) provides full 2048 (H) x 1536 (V) megapixel resolution at full video frame rates of 21 fps (Frames per Second). This indoor dome camera comes with 3.3 to 10mm varifocal lens.With the features of PSIA and ONVIF conformance, privacy masking, extended motion detection and flexible cropping, the AV3146 Camera is a high sensitivity, PoE (IEEE 802.3af) compliant, day/night camera. Built with the MegaVideo processing technology, this camera offers high resolution and the ability to output full real-time frame rates and deliver high-quality megapixel imaging. - All-in-one 3Mp H.264 MegaBall indoor solution
- Installer Friendly: External lens adjustment for zoom, focus, and iris, cable management, 3-axis adjustment, wall mountable
- Dual encoder H.264 (MPEG Part 10) and MJPEG
- 1024 zones motion detection and privacy mask
- Wide dynamic range switch control
- Binning mode improves low-light performance
- Auto multi-matrix white balance
- Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264
- Programmable shutter speed to help control motion blur
- MoonLight Mode: Extended exposure and noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, tint •
- Simultaneous delivery of full field of view and zoomed images
- Bandwidth and storage savings by running at 1/4 resolution
- General purpose opto-coupled input and output
- PoE & Auxiliary Power: 12 to 48VDC / 24VAC
- Day/ night functionality with removable IR-cut filter
- Flexible Cropping: Crop to 2 pixels in H.264 and 1 pixel in JPEG
- PSIA and ONVIF conformant
In the Box Arecont Vision AV3146DN-3310-W Megaball 3Mp IP Day/Night WDR Indoor Dome Camera Mounting Template 3 x Wood Screw Pack 3 x Dry Wall Anchor Security L-Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV3146DN-3310-W Megaball 3Mp IP Day Night WDR Indoor Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3146 Specs | | | Pixel Density | 3 Mp | | Image Sensor | Progressive scan CMOS WDR image Sensor | | Shutter Speed | 1 to 500 ms | | Optical Format | 1/3.2" optical format | | Pixel Pitch | 2.2 μm | | Frame Rate | 21 fps | | Full Field of View Resolution | 2048 x 1536 | | Cropped (FOV) Resolution | WUXG: 1920 x 1200 <br>1920 x 1080 HDTV - 1080p<br> 1600 x 1200 2MP <br>1280 x 1024 1.3MP <br>1280 x 720 HDTV - 720p<br> 640 x 480 VGA | | Minimum Illumination | Color (Binning): 0.15 lux @ F1.6 Day/Night: 0 lux, IR sensitive | | Wide Dynamic Range | up to 100 dB | | Signal to Noise Ratio | Maximum: 49 dB | | Video Frame Rate | Up to 21 fps @ 2048 x 1536
Up to 31 fps @ 1600 x 1200
Up to 30 fps @ 1920 x 1080
Up to 41 fps @ 1280 x 1024
In Binning Mode 21 fps @ 1024 x 768
27 fps @ 800 x 600
31 fps @ 860 x 540
32 fps @ 640 x 512 | | Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG 21 levels of quality | | Transmission Protocol | Unicast / Multicast: RTSP, RTP/TCP, RTP/UDP
Others: HTTP, DHCP, TFTP | | Ethernet Interface | Network: 100Base-T | | Multi-Streaming | 8 non-identical streams | | Motion Detection | On-Camera: up to 1024 detection zones | | White Balance | Auto multi-matrix white balance | | Flicker Filter Control | 50 / 60 Hz | | PTZ Control | Electronic pan, tilt, zoom | | Image Flip | Electronic: 180º rotation | | | | Lens Type | 3.3 to 10.0 mm, F1.6 , ½.5" | | Field of View | H-FOV: 78 to 28° | | | | Power Over Ethernet | 802.3 af | | Auxiliary Power Input | 12 to 48 VDC and 24 VAC | | Power Consumption | PoE Class II
DC: 6.0 W maximum | | | | Certification | CE Mark,WEEE | | Compliance | Class A FCC, Part 15; EN55022 Class A, RoHS, REACH,EN55024, EN61000-3-2, EN61000-3-3, EN60950 | | Standard | PSIA and ONVIF conformant | | | | Operating Temperature | 23 to 140°F (-5 to 60°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 0 to 90% (non condensing) | | | | Casing | Die-cast aluminum 3" (7.6 cm) metal ball and mount | | Mount | Embedded in-ceiling mount | | Adjustments | Camera: 3-axis camera adjustment with 360° pan, 90° tilt & 360° z-axis
Lens: External lens adjustment for focus | | Dimensions | Ø 3 x 6.15" H (76.2 x 156.2 mm) | | Weight | 1.2 lb (0.54 kg) |
