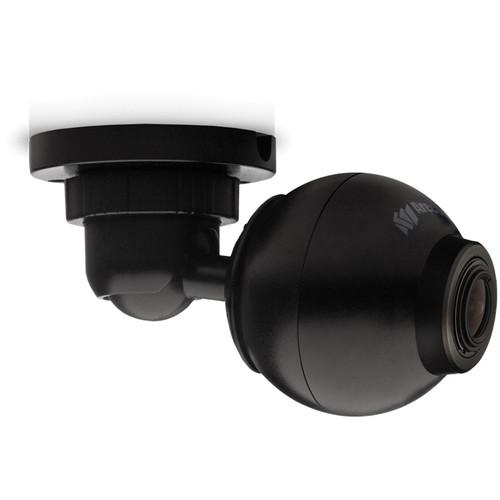

User Manual for Arecont Vision AV3146DN-3310-WA MegaBall 3 MP Day Night All-In-One Wall Mount Indoor IP Ball Camera with 3.3-10mm Lens Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV3146DN-3310-WA MegaBall 3 MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV3146DN-3310-WA MegaBall 3 MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The AV3146DN-3310-WA MegaBall 3MP Day/Night All-In-One Wall Mount Indoor IP Ball Camera with 3.3-10mm Lens from Arecont Vision supports H.264 (MPEG-4, Part 10) compression and provides a full 2048 x 1536 resolution at full video frame rates of 21 fps. With features of PSIA conformance, privacy masking, extended motion detection, and flexible cropping, the camera is a high sensitivity, PoE (IEEE 802.3af) compliant, day/night camera with audio. Built with MegaVideo processing technology, this camera offers high resolution and real-time frame rates to deliver clear megapixel imaging. - 1/3.2" CMOS image sensor with 3 MP resolution
- Wide dynamic range switch control
- On-camera real-time motion detection and privacy mask with 1024 detection zones
- Auto multi-matrix white balance
- 50/60Hz selectable flicker control
- Electronic pan, tilt, zoom (PTZ)
- Electronic image flip with 180° rotation
- Resolution windowing down to 1x1 pixel for JPEG & 2x2 pixels for H.264
- Programmable shutter speed to help control motion blur
- MoonLight mode offers extended exposure and noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Simultaneous delivery of full field of view & zoomed images
- Bandwidth & storage savings by running at 1/4 resolution
- Wide dynamic range up to 100 dB
In the Box Arecont Vision AV3146DN-3310-WA MegaBall 3 MP Day/Night All-In-One Wall Mount Indoor IP Ball Camera with 3.3-10mm Lens Mounting Template 3 x Wood Screw Pack 3 x Dry Wall Anchor Security L-Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV3146DN-3310-WA MegaBall 3 MP Day Night All-In-One Wall Mount Indoor IP Ball Camera with 3.3-10mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3146 Specs | | | Pixel Density | 3 MP | | Image Sensor | Progressive scan CMOS WDR image Sensor | | Optical Format | 1/3.2" optical format | | Pixel Pitch | 2.2 μm | | Frame Rate | 21 fps | | Full Field of View Resolution | 2048 x 1536 | | Cropped (FOV) Resolution | H x V: 1024 x 768 | | Minimum Illumination | Color (non-binned): 0.3 lux @ F1.6
Color (binned): 0.15 lux @ F1.6
Day/Night: 0 lux, IR sensitive | | Wide Dynamic Range | up to 100 dB | | Signal to Noise Ratio | Maximum: 49 dB | | Video Frame Rate | Up to 21 fps @ 2048 x 1536
Up to 31 fps @ 1600 x 1200
Up to 30 fps @ 1920 x 1080
Up to 41 fps @ 1280 x 1024 | | Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG 21 levels of quality | | Transmission Protocol | TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP | | Ethernet Interface | Network: 100Base-T | | Multi-Streaming | 8 non-identical streams | | Motion Detection | On-Camera: up to 1024 detection zones | | White Balance | Auto multi-matrix white balance | | Flicker Filter Control | 50/60 Hz | | PTZ Control | Electronic pan, tilt, zoom | | Image Flip | Electronic: 180º rotation | | | | Lens Type | 3.3 to 10.0 mm, F1.6 | | Field of View | H-FOV: 78 to 28° | | | | Power Over Ethernet | 802.3 af | | Auxiliary Power Input | 12 to 48 VDC and 24 VAC | | Power Consumption | PoE 802.3af for camera
DC: 5.43 W maximum | | | | Certification | CE Mark, UL Listed | | Compliance | Class A FCC, Part 15; EN55022 Class A, RoHS, REACH,EN55024, EN61000-3-2, EN61000-3-3, EN60950 | | Standard | PSIA conformant | | | | Operating Temperature | 23 to 122°F (-5 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 0 to 90% (non condensing) | | | | Casing | Die-cast aluminum 3" (7.6 cm) metal ball and mount | | Mount | Embedded in-ceiling mount | | Adjustments | Camera: 3-axis camera adjustment with 360° pan, 90° tilt & 360° z-axis
Lens: External lens adjustment for focus | | Dimensions | Ø 3 x 6.15" H (76.2 x 156.2 mm) | | Weight | 2.25 lb (1.02 kg) |
