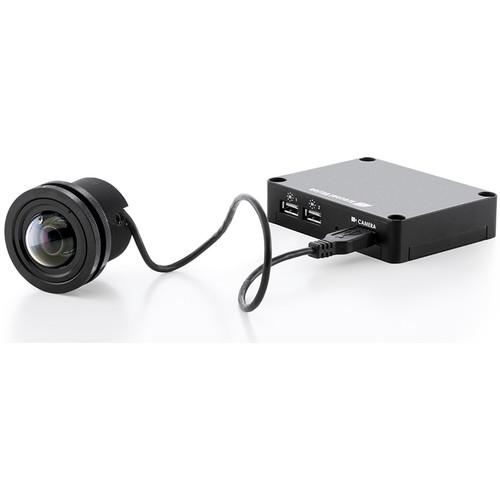

Product description The AV3196DN MegaVideo Flex 3MP Modular Network Camera from Arecont Vision delivers 2048 x 1536 resolution video at a 21 fps frame rate, whether viewing live or recorded/archived video. It features a pixel binning mode, which makes it suitable for applications with challenging lighting conditions due to strong backlight. The camera uses SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting the image quality. Furthermore, true WDR (Wide Dynamic Range) of up to 100 dB ensures clear images in shaded as well as bright light conditions.The AV3196DN MegaVideo Flex is comprised of the camera sensor, a metal mounting bracket, a USB cable, and the main camera unit. It can be surface-mounted via the supplied bracket or flush-mounted in a ceiling or wall with the two fastening nuts. No additional mounting accessories are required. For added flexibility, the USB cable allows the sensor to be mounted in one area while the main camera unit is mounted up to 40' away. For easy identification of events or intruders in low-light applications, the main unit features two USB ports to add optional infrared illuminators (sold separately). Each IR illuminator includes six infrared 850nm LEDs with a range of up to 50'.The MegaVideo Flex camera transmits H.264 video to avoid straining your network. Power can be supplied via a single network cable or a 12 to 48 VDC/24 VAC power supply. The camera's interface is designed for intuitive, fast, and easy configuration. The AV IP Utility tool allows users to configure multiple cameras at one time when required. - 2048 x 1536 resolution at 21 fps
- Camera sensor and main unit can be up to 40' apart
- SNAPstream (Smart Noise Adaptation and Processing) capability to reduce bandwidth without impacting image quality
- Low-light performance with pixel binning mode
- True day/night functionality with mechanical IR cut filter
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Non-Integer Scaling
- True WDR (Wide Dynamic Range) of up to 100 dB at full resolution
- All-in-one Power over Ethernet (PoE) solution
- microSD/SDHC card slot for onboard storage (card sold separately)
- Weather-resistant from front of the sensor and optional IR units
- Vibration- and shock-resistant (EN61373)
In the Box Arecont Vision AV3196DN MegaVideo Flex 3MP Modular Network Camera with SNAPstream & WDR (No Lens) Main Unit Sensor Unit USB 2.0 to Micro-USB Cable (40') USB 2.0 to Micro-USB Cable (5') Metal Sheet Bracket with Attached Plate White Cover with Bubble Mounting Template for Main Unit Mounting Template for Sensor Unit Mounting Hardware Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV3196DN MegaVideo Flex 3MP Modular Network Camera with SNAPstream & WDR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3196 Specs | | | Image Sensor | 3 MP | | Optical Format | 1/3.2" CMOS | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color Day Mode: 0.2 lux
Color Binning (Day Mode): 0.1 lux
B&W Night Mode: 0.02 lux, IR sensitive | | Resolution (H x V) | Full Field of View:
2048 x 1536
1/4 Resolution:
1024 x 768
Scaled Resolution:
720p (1280 x 720)
XVGA (1024 x 768)
DVGA, 16:9 (1136 x 640)
DVGA, 3:2 (960 x 640)
SVGA (800 x 600)
D1, PAL (720 x 576)
4CIF, PAL (704 x 576)
D1, NTSC (720 x 480)
4CIF, NTSC (704 x 480)
VGA (640 x 480)
2CIF, PAL (704 x 288)
HVGA, 4:3 (480 x 360)
2CIF, NTSC (704 x 240)
HVGA, 8:3 (640 x 240)
HVGA, 3:2 (480 x 320)
HVGA, 16:9 (480 x 272)
CIF, PAL (352 x 288)
CIF, NTSC (352 x 240)
QVGA, SIF (320 x 240)
QCIF, PAL (176 x 144)
QCIF, NTSC (176 x 120)
SQCIF (128 x 96) | | Dynamic Range | Up to 100 dB | | Frame Rates | At Maximum Resolution: 21 fps (2048 x 1536)
Cropped: 21 fps (1920 x 1080, 1280 x 1024)
Binning Mode: 21 fps (1024 x 768, 800 x 600, 960 x 540, 640 x 512) | | | | Optics | M12 lens and remote focus module | | Low Light Capability | Pixel binning mode | | Picture-in-Picture | Simultaneous delivery of full field of view and zoomed images | | Shutter Speed | Programmable: Controls motion blur, 1 to 500 ms | | Motion Detection | Real-time, 1024 detection zones | | Privacy Masking | Unlimited | | Cropping | Flexible: Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264 | | Backlight Compensation | Custom white balance | | Flicker Filter Control | 5 to 255 Hz adjustable | | Image Rotation | CorridorView (90°, 180°, and 270° image rotation) | | Wide Dynamic Range | Auto switch control adjustment between WDR and LDR modes | | Noise Reduction | Low-light noise filter control | | Efficiency | SNAPstream (Smart Noise Adaptation and Processing)
Bit rate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | Onboard Storage | microSD/SDHC card slot for up to 32 GB storage (card sold separately) | | Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint
Electronic pan, tilt, zoom (ePTZ) | | | | Compression Type | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, QoS, IPv4, IPv6, 802.1x | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Industry Standards | ONVIF Profile S conformant | | Listings | UL CB Scheme: IEC 60950-1(Ed.2), IEC 60950-1(Ed.2); Am.1, IEC 60950-1(Ed.2); Am.2, IEC 60950-22(Ed.1)) | | FCC Compliance | Title 47, Part 15 (47 CFR 15) Subpart B Class A | | Environmental | REACH 1907/2006/EC, WEEE 2012/19/EU | | CE Compliance | 2014/30/EU (EMC Directive), 2014/35/EU (Low Voltage Directive), 2011/65/EU (RoHS Directive) EN 55022:2010 Class A, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3: 2008 EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 | | Mechanical | Shock and vibration (EN61373), IK10 | | | | Operating Temperature | -4°F to 122°F / -20 to 50°C | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Alarm Input / Output | General purpose opto-coupled
1 x Input
1 x Output | | Power Over Ethernet (PoE) | PoE 802.3af, Class 3 | | Power Consumption | 10.5 W DC Power max
14.2 W DC Power max (with two IR units on) | | Auxiliary Power Input | 12 to 48 VDC / 24 VAC (Barrel plug, 2.1 mm I.D. x 5.5 mm O.D. x 9.5 mm) | | | | Casing | Tamper-resistant housing, IK10 impact-resistant
Weather-resistant from front | | USB Cable Length | 5' / 1.5 m
40' / 12 m | | Dimensions | Main Unit: 0.9 x 3.2 x 4.1" / 2.4 x 8.2 x 10 cm
Sensor Unit: Ø1.8 x 1.7" / Ø4.5 x 4.4 cm | | Weight | 0.7 lb / 0.3 kg |
