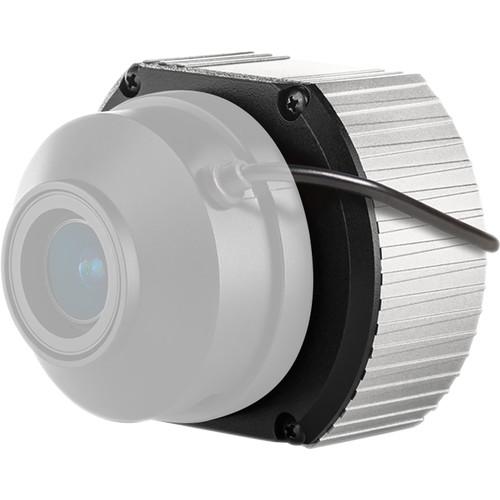

User Manual for Arecont Vision AV3215PM-S MegaVideo G5 3MP Network Compact Box Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV3215PM-S MegaVideo G5 3MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV3215PM-S MegaVideo G5 3MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The AV3215PM-S MegaVideo G5 3MP Network Compact Box Camera from Arecont Vision delivers a maximum resolution of 2048 x 1536 at a 21 fps frame rate, whether viewing live or recorded/archived video. The microSD card slot supports memory cards up to 32GB for convenient on-board storage. The camera's power can be supplied via a PoE-compliant network cable connection or a 12 to 48 VDC / 24 VAC power supply. This MegaVideo G5 camera is ONVIF Profile S (Open Network Video Interface Forum) and PSIA-compliant (Physical Security Interoperability Alliance), providing interoperability between network video products regardless of manufacturer. - 2048 x 1536 at 21 fps (maximum resolution)
- True day/night functionality with mechanical IR cut filter
- Compatible with 2.8 to 8.5mm varifocal lenses (available separately)
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- microSDHC card slot for onboard storage
- Privacy masking, motion detection, flexible cropping, bit rate control, multi-streaming, forensic zooming
- 12 to 48 VDC / 24 VAC PoE and auxiliary power
- Small size for flexible mounting options
- Binning mode for improved low-light performance
In the Box Arecont Vision AV3215PM-S MegaVideo G5 3MP Network Compact Box Camera (No Lens) Software CD C to CS Lens Adapter 0.5mm Lens Spacer Ring 6-Position External Power and I/O Plug 0.05" Hex L-Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV3215PM-S MegaVideo G5 3MP Network Compact Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3215 Specs | | | Image Sensor | 3 MP | | Optical Format | 1/3" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (Day Mode): 0.1 lux
Color Binning (Day Mode): 0.05 lux
B&W (Night Mode): 0.02 lux (IR sensitive) | | Resolution | Full FOV (H x V): 2048 x 1536
1/4 Resolution (H x V): 1024 x 768 | | Dynamic Range | 69.5 dB | | Signal to Noise Ratio | 44 dB maximum | | Frame Rates | At Maximum Resolution: 21 fps (2048 x 1536)
Cropped: 30 fps (1920 x 1080), 41 fps (1280 x 1024)
Binning Mode: 46 fps (1024 x 768), 64 fps (960 x 540) | | Lens | 2.8 to 8.5mm, f/1.2 (lens available separately) | | | | Compression Type | H.264 (MPEG-4, Part 10)/MJPEG, 21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, QoS, IPv4, IPv6 | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Optics | Remote focus, remote zoom, and pixel binning mode
P-iris control (when remote focus/zoom lens is used) | | Picture-in-Picture | Simultaneous delivery of full field of view and zoomed images | | Shutter Speed | Programmable: Controls motion blur, 1 to 500 ms | | Motion Detection | Real time, 1024 detection zones | | Privacy Masking | Unlimited | | Mode | MoonLight: Extended exposure and noise cancellation | | Cropping | Flexible: Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264 | | Backlight Compensation | Auto multi-matrix white balance | | Control | Flicker 50/60 Hz selectable | | Image Rotation | 180° image flip or CorridorView (90, 180, and 270° image rotation) | | Scaling | Non-integer scaling down to 128 x 96 | | Noise Reduction | Low-light noise filter control | | Efficiency | Bit rate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | Onboard Storage | microSDHC card slot; supports up to 32 GB (card sold separately) | | Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint
Electronic pan, tilt, zoom (ePTZ) | | | | Alarm I/O | 1 x Input / 1 x output | | Power Over Ethernet | PoE 802.3af, Class 2 | | Auxiliary Power Input | 12 to 48 VDC, 24 VAC | | Maximum Power Consumption | 6.9 W (including lens) | | | | Operating Temperature | 23 to 122°F / -5 to 50°C
23 to 104°F / -5 to 40°C in D4SO housings | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Compliance | Industry Standard: ONVIF Profile S and PSIA-conformant
UL (CB) listed
FCC Compliance: 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
(CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-CoO1 | | Casing | Die-cast aluminum chassis
C/CS lens mount (lens sold separately) | | Dimensions | 3 x 1.25 x 2.5" / 7.6 x 3.2 x 6.4 cm | | Weight | 0.6 lb / 0.3 kg |
