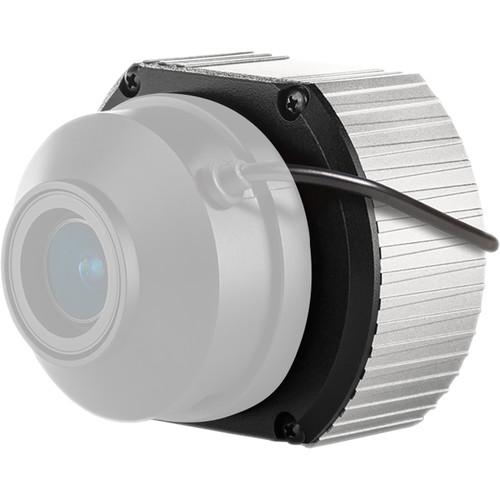

User Manual for Arecont Vision AV3216PM-S MegaVideo G5 3MP Network Box Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV3216PM-S MegaVideo G5 3MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV3216PM-S MegaVideo G5 3MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The AV3216PM-S MegaVideo G5 3MP Network Box Camera from Arecont Vision delivers 2048 x 1536 resolution video at a 21 fps frame rate. It features a C/CS lens mount and is designed to be used with select motorized P-iris, manual varifocal, and manual fixed focal lenses (available separately). It is suitable for applications with challenging lighting conditions caused by strong backlighting or reflections from wet flooring/puddles. The SD card slot supports up to 32GB of storage capacity (available separately) for convenient on-board storage. The camera's power can be supplied via a Power-over-Ethernet-compliant network connection or from a 12 to 48 VDC / 24 VAC power supply.
The MegaVideo G5 is ONVIF Profile S (Open Network Video Interface Forum) compliant, providing interoperability between network video products regardless of manufacturer. - True day/night functionality with mechanical IR cut filter
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Privacy masking, motion detection, flexible cropping, bit rate control, multi-streaming, multi-casting, and forensic zooming
- SNAPstream capability to reduce bandwidth without impacting image quality
- Enhanced wide dynamic range of up to 100 dB
- Binning mode for strong low light performance
- 12 to 48 VDC / 24 VAC PoE and auxiliary power
- Small size for flexible mounting options
- Use with Arecont Vision housings or as a standalone camera
- Compatible with MPL2.8-8.5MPI, MPL9-36MPI, MPL4-10, MPL4-12, MPL8-16, MPL12-40, MPL33-12A, MPL1.55, MPL3.5, MPL4.0, and MPL8.0 lenses (available separately)
UPC: 847778000975 In the Box Arecont Vision AV3216PM-S MegaVideo G5 3MP Network Box Camera (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV3216PM-S MegaVideo G5 3MP Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3216 Specs | | | Sensor | 3 MP 1/3.2" | | Lens Mount | CS | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.2 Lux
B&W: 0.02 Lux | | Shutter Speed | 1/1000 to 1/2 Seconds | | | | Streaming Resolution | 2048 x 1536 at 21 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 8 Streams | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | DHCP, HTTP, IPv4/v6, QoS Layer 3 DiffServ, RTP, RTSP, TCP, TFTP, UDP | | | | Application Programming Interface (API) | ONVIF | | Event Trigger | Yes | | Event Action | Alarm | | Data Streaming | Yes | | | | Recording Media | SD (Up to 32 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | Certifications | EN 55022 Class A, EN 55024, FCC (Part 15 Class A), IEC 61000-3-2, IEC 61000-3-3, IEC60950-1, REACH, RoHS, UL, WEEE, as per Manufacturer | | Internal Storage | None | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | 7.8 W | | Material of Construction | Aluminum | | Operating Temperature | 23 to 122°F / -5 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 90% | | Dimensions | H: 2.5 x W: 3.0 x L: 1.2" / H: 6.3 x W: 7.6 x L: 3.0 cm | | Weight | 0.6 lb / 0.3 kg |
