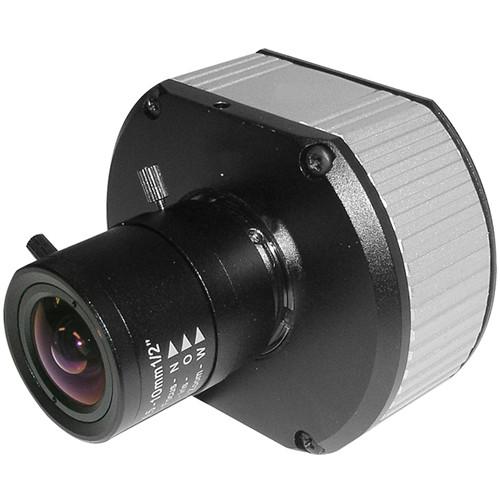

User Manual for Arecont Vision AV5115DNV1 5 MP Compact H.264 IP MegaVideo Day & Night Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV5115DNV1 5 MP Compact
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV5115DNV1 5 MP Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision AV5115DNV1 5 MP Compact H.264 IP MegaVideo Day & Night Camera features a 1/2.5" 5 MP CMOS image sensor and records high-definition color videos at a resolution of up to 2592 x 1944. It is a true day and night camera that captures crisp and clear images in a minimum illumination of up to 0 lux thanks to the removable ICR (IR Cut Filter). It supports dual streaming in H.264 and MJPEG formats. It also features binning mode of data transfer for faster transmission rate. - Imaging
-
- 5 MP CMOS image sensor
- 1/2.5" optical format
- Full Resolution (H x V): 2592 x 1944 pixel array
- Frame rate of up to 14 fps @ 2592 x 1944
- 2.2 μm pixel pitch
- Minimum Illumination:
Color (Non-Binned): 0.3 lux @ f/1.4
Color (Binned): 0.15 lux @ f/1.4
Day & Night: 0 lux, IR sensitive - Dynamic range of 70.1 dB
- Maximum S/N ratio of 45 dB
- Programmability
-
- Binned mode to increase light sensitivity and low-light performance
- Flexible cropping
- Low-light noise filter control
- Bit rate and bandwidth limitation control
- On-camera real-time motion detection and privacy mask with 1024 detection zones
- Backlight compensation
- Auto multi-matrix white balance
- 50/60 Hz selectable flicker control
- Electronic PTZ (Pan, Tilt, Zoom)
- Electronic Image Flip: 180° rotation
- Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264
- Programmable shutter speed to help control motion blur
- MoonLight mode allows extended exposure and noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Simultaneous delivery of full field of view and zoomed images
- Bandwidth and storage savings by running at 1/4 resolution
In the Box Arecont Vision AV5115DNV1 5 MP Compact H.264 IP MegaVideo Day & Night Camera Rubber Gasket (Pre-installed on the Camera) CD with AV100 Software and User Manuals (License Key Required for Recording) C to CS Lens Adapter 0.5 mm Lens Spacer Ring 6-Position External Power & Input/Output Plug 0.05" Hex L-Key Limited 3-Year Warranty User Manual PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV5115DNV1 5 MP Compact H.264 IP MegaVideo Day & Night Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV5115 Specs | Sensor | Type: 5 MP CMOS image sensor
Format: 1/2.5" optical
Pixel: 2.2 μm pitch | | Lens Mount | C/CS | | Minimum Illumination | Color:
0.3 lux @ f/1.4 non-binned mode
0.15 lux @ f/1.4 binned mode
Day & Night:
0 lux, IR sensitive | | Dynamic Range | 70.1 dB | | S/N Ratio | 45 dB | | Resolution | Full Field of View 2592 x 1944 @ 5 MP
1296 x 972 @ 1/4 resolution
Cropped Field of View
Flexible Cropping: Crop to 2 pixels in H.264 and 1 pixel in JPEG
1280 x 720 at HDTV-720p, 640 x 480 at VGA, 352 x 288 at CIF, 320 x 240 at SIF | | Data Transmission | Video Frame Rate
In Non-Binned Mode:
Up to 14 fps @ 2592 x 1944
Up to 16 fps @ 2560 x 1600
Up to 21 fps @ 2048 x 1536
Up to 31 fps @ 1600 x 1200
Up to 29 fps @ 1920 x 1080
Up to 41 fps @ 1280 x 1024
In Binned Mode:
Up to 34 fps @ 1286 x 972
Up to 41 fps @ 1280 x 800
Up to 46 fps @ 1024 x 768
Up to 64 fps @ 800 x 600, 860 x 540, and 640 x 512 | | Compression | H.264 (MPEG4, Part 10) / Motion JPEG
21 levels of quality | | Protocol | RTSP, RTP/TCP, RTP/UDP, HTTP, and TFTP | | Network Interface | 100Base-T Ethernet | | Streaming Capability | Multi-streaming: 8 non-identical streams | | Electrical | General purpose opto-coupled input and output
PoE (Power over Ethernet): 802.3af for camera
Auxiliary Power: 12 to 48 VDC, 24 VAC
Power Consumption: 5.59 W maximum | | Compliance | Compliance: Class A FCC, Part 15; EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3 RoHS, REACH
CE mark, UL listed | | Compliance | PSIA and ONVIF conformant | | Environmental | Operating Temperature: 23 to 122°F (-5 to 50˚C)
Stable Image Temperature: 32 to 122°F (0 to 50˚C)
Storage Temperature: -4 to 140°F (-20 to 60˚C)
Humidity: 0 to 90% (non-condensing) | | Dimensions (W x H x D) | 3 x 2.5 x 1.25" (76 x 63.5 x 31.7 mm) without lens | | Weight | 5.8 oz (164 g) without lens | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 4.0 x 4.0 x 3.6" |
