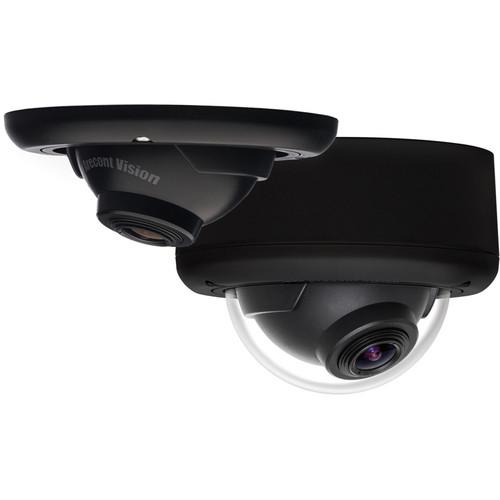

User Manual for Arecont Vision AV5145DN-3310-DA 5 Mp MegaBall Indoor Day Night Camera with 3.3 to 10mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV5145DN-3310-DA 5 Mp MegaBall
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV5145DN-3310-DA 5 Mp MegaBall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The stylish AV5145DN-3310-DA MegaBall Indoor Day / Night Camera from Arecont Vision provides a 5 Mp resolution to zoom-in for details in live or recorded video. This indoor camera integrates an IR-corrected 3.3 to 10mm varifocal lens and provides fast frame rates of 14 fps. It comes in a plastic surface / in-ceiling dome with an acrylic bubble.
The H.264 compression reduces network bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing on image quality. Furthermore, a pixel Binning mode provides increased low-light sensitivity, while day / night functionality allows for 24-hour surveillance. General Features - All-in-one indoor 3" (76.2mm) ball shaped IP camera
- 3.3 to 10mm varifocal lens
- Embedded surface / flush mount
- Installer Friendly: External lens adjustment, cable management, and 3-axis adjustment
- User-friendly webpage loaded with easy-to-use menus to adjust and fine tune camera settings enables easy installation, configuration, and ongoing control
- Slider bars and numeric text boxes allow complete control of camera features such as image settings, video compression, H.264 stream settings, network options, motion detection, privacy mask settings, administration, & camera details
- Binning mode for strong low-light performance at 5 Mp resolution
- Privacy mask, motion detection, flexible cropping
- Impressive resolution to capture significant detail whether viewing live or recorded / archived video, with the ability to digitally Pan-Tilt-Zoom (PTZ) images, view details you need to see at any time, such as license, plates, faces, and other objects of interest
- Forensic zoom enabled through enhanced resolution & varying fields of view that enables the camera to provide critical forensic information
- True day / night functionality with mechanical IR cut filter provides low-light enhancing technology such as adaptive noise cancellation
- Dual encoder H.264 / MJPEG
- Bracket design encloses all cables, providing protection from tampering and a more professional installation
Compliant H.264 Compression - Implementation of H.264 allows full frame rates and full resolution without sacrificing image quality
- H.264 & MJPEG dual compression support with simultaneous streaming
- Decreases the CPU load both at the client (decompression) side and the server / storage side
- Lower bandwidth and storage relative to MJPEG
- Bit rate control to maintain desired bandwidth and storage size
- RTSP (Real Time Streaming Protocol) allows for compatibility with media players such as Apple QuickTime, VLC, and others
Programmability - Motion detection and privacy mask with 1,024 detection zones
- Flexible cropping (resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264)
- Low-light noise filter control
- Bit rate and bandwidth limitation control
- Backlight compensation and multi-matrix white balance
- Electronic pan, tilt, zoom (PTZ) and image flip 180°, 50 / 60 Hz selectable flicker control
- Programmable resolution, brightness, saturation, gamma, sharpness, tint, shutter speed
Compliance - Industry Standard: PSIA and ONVIF Conformant
- FCC Compliance: 47 CFR 15 Class A
- Environmental: RoHS, REACH, WEEE
- Markings: (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950
In the Box Arecont Vision AV5145DN-3310-DA 5 Mp MegaBall Indoor Day / Night Camera with 3.3 to 10mm Varifocal Lens AV100 Software CD Mounting Template Pack of 3 Wood Screws & 3 Dry Wall Anchors Security L-Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV5145DN-3310-DA 5 Mp MegaBall Indoor Day Night Camera with 3.3 to 10mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV5145 Specs | | | Image Sensor | 5 Mp CMOS image sensor | | Optical Format | 1/2.5" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | 0 lux, IR sensitive | | Resolution (H x V) | Full FOV: 2592 x 1944
1/4 Resolution: 1296 x 972 | | Dynamic Range | 70.1 dB | | Frame Rates | At Maximum Resolution: 14 fps (2592 x 1944)
Cropped:
21 fps (2048 x 1536)
29 fps (1920 x 1080)
41 fps (1280 x 1024)
Binning Mode:
34 fps (1296 x 972)
46 fps (1024 x 768)
64 fps (960 x 540) | | Lens | 3.3 to 10 mm, 1/2.5", F1.6, 95 to 32° (HFOV)
External lens adjustment for zoom, focus, and iris | | | | Compression Type | H.264 (MPEG-4, Part 10) / Motion JPEG
H.264 (MPEG-4, Part 10) / Motion JPEG | | Protocols | RTSP, RTP / TCP, RTP / UDP, HTTP, DHCP, TFTP | | Network Interface | 100 Base-T Ethernet Network Interface | | Multi-Streaming | 8 non-identical streams | | | | Digital Input | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 2 | | Power | Aux Power: 12 to 48 VDC, 24 VAC | | Maximum Power Consumption | 5.3 W DC Power | | | | Streaming | 2-way | | Compression | G.711 PCM 8 kHz | | Input & Output | Integrated microphone / line output | | | | Casing | Plastic surface / in-ceiling dome with acrylic bubble | | Gimbal | Easy 3-axis camera adjustment with 360° pan, 90° tilt and 360° z-axis | | Mount | Surface / Flush Mount | | | | Operating Temperature | -23 to 122°F (-5 to +50°C) | | Stable Image Temperature | 32 to 122°F (0 to +50°C) | | Storage Temperature | -4 to 140°F (-20 to +60°C) | | Humidity | 0 to 90% (non-condensing) | | | | Dimensions (Ø x H) | 5.10 x 1.74" (129.54 x 44.19 mm) | | Weight | 2.25 lb (1.02 kg) |
