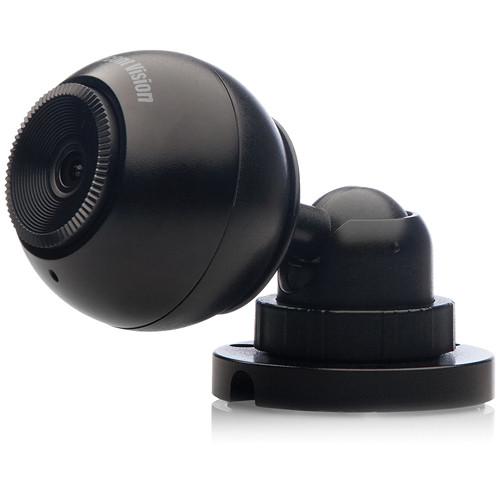

Product description The Arecont Vision AV5145DN-3310-W MegaBall 5 Mp IP Wall Mount Day & Night Camera is an all-in-one indoor surveillance solution. It is a 3.0" (76.2 mm) ball-shaped unit with an integrated H.264 5 Mp camera, 3.3 to 10mm lens, and wall mount bracket. This camera features a 1/2.5" 5 Mp CMOS image sensor and records high-definition color videos at a resolution of up to 2592 x 1944 at 14 fps. It is a true day and night camera that captures crisp and clear images in a minimum illumination of up to 0 lux thanks to the removable ICR (IR Cut Filter). It supports dual streaming in H.264 and MJPEG formats. It also features binning mode of data transfer for faster transmission rate, increased sensitivity, and low-light performance. - Imaging
-
- 5 Mp Progressive Scan CMOS image sensor
- 1/2.5" optical format
- 2.2μm pixel pitch
- Frame rate of up to 14 fps @ 2592 x 1944
- Minimum Illumination:
Color (Non-Binned): 0.3 lux @ f/1.8
Color (Binned): 0.15 lux @ f/1.8
Day & Night: 0 lux, IR sensitive - Dynamic range up to 70.1 dB
- Maximum S/N ratio of 45 dB
- Programmability
-
- Binned mode
- Flexible cropping and low-light noise filter control
- Shutter speed of 1 to 500 ms
- Backlight compensation and Multi-Matrix White Balance
- On-camera real-time motion detection and Privacy Mask feature with 1,024 detection zones
- 50 / 60 Hz selectable flicker control
- Electronic PTZ (Pan, Tilt, Zoom)
- Image Flip: 180° rotation
- MoonLight Mode for extended exposure and noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Bit rate and bandwidth limitation control
- Multi-streaming with 8 non-identical streams
- Additional Features
-
- External lens adjustment for zoom, focus, and iris
- Three-axis camera adjustment with 360° pan, 90° tilt, and 360° motion about z-axis
- UL listed
- PSIA & ONVIF Conformant
In the Box Arecont Vision AV5145DN-3310-W MegaBall 5 Mp IP Wall Mount Day & Night Camera (3.3 to 10mm Lens) CD with AV100 Software (License Key Required for Recording) Mounting Template Pack of 3 Wood Screws & 3 Dry Wall Anchors Security L-Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV5145DN-3310-W MegaBall 5 Mp IP Wall Mount Day & Night Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV5145 Specs | Sensor | Type: 5 Mp Progressive Scan CMOS image sensor
Format: 1/2.5" optical format
Pixel: 2.2 μm pitch | | Lens | 3.3 to 10 mm, f/1.6
Horizontal Field of View: 32 to 95° | | Minimum Illumination | Color (Non-Binned): 0.3 lux @ f/1.8
Color (Binned): 0.15 lux @ f/1.8
Day & Night: 0 lux, IR sensitive | | Dynamic Range | 70.1 dB | | S/N Ratio | 45 dB, maximum | | Resolution | Full Field of View
2592 x 1944 @ 5 Mp
1296 x 972 @ 1/4 resolution
Cropped Field of View
Flexible Cropping: Crop to 2 pixels in H.264 and 1 pixel in JPEG
2560 x 1600 at QWXGA, 2048 x 1536 at 3 Mp, 1920 x 1080 at HDTV-1080p, 1280 x 1024 at 1.3 Mp, 1280 x 720 at HDTV-720p, 640 x 480 at VGA | | Data Transmission | Video Frame Rate
In Non-Binned Mode:
Up to 14 fps @ 2592 x 1944
Up to 21 fps @ 2048 x 1536
Up to 29 fps @ 1920 x 1080
Up to 41 fps @ 1280 x 1024
In Binned Mode:
Up to 34 fps @ 1296 x 972
Up to 46 fps @ 1024 x 768
Up to 64 fps @ 960 x 540 | | Compression | H.264 (MPEG4, Part 10) / Motion JPEG
21 levels of quality | | Protocol | RTSP, RTP/TCP, RTP/UDP, HTTP, TFTP | | Network Interface | 100Base-T Ethernet | | Electrical | General purpose opto-isolated input and output
PoE 802.3af for camera
Auxiliary Power: 12 to 48 VDC, 24 VAC | | Power Consumption | 5.59 W | | Compliance | Class A FCC, Part 15; EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 RoHS, REACH
CE Mark | | Standard | PSIA and ONVIF conformant | | Environmental | Operating Temperature: 23 to 122°F (-5 to 50˚C)
Stable Image Temperature: 32 to 122°F (0 to 50˚C)
Storage Temperature: -4 to 140°F (-20 to 60˚C)
Humidity: 0 to 90% (non-condensing) | | Casing | Die-cast aluminum, 3.0" (76.2 mm) metal ball and mount | | Dimensions (Ø x H) | 3.00 x 6.15" (76.20 x 156.20 mm) | | Weight | 1.20 lb (0.54 kg) |
