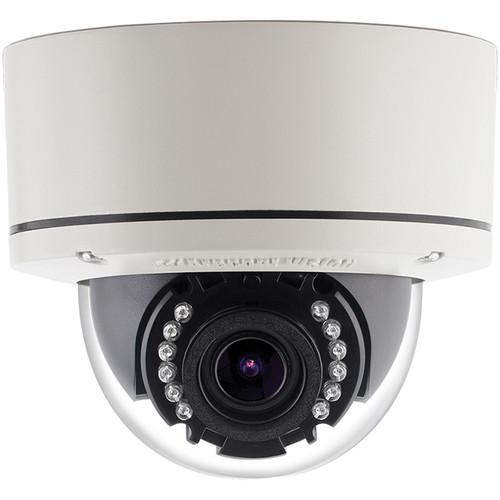

User Manual for Arecont Vision AV5355PMIR-SH MegaDome G3 5MP Outdoor PTZ Network Dome Camera with Heater Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV5355PMIR-SH MegaDome G3 5MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV5355PMIR-SH MegaDome G3 5MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The AV5355PMIR-SH MegaDome G3 3MP Outdoor PTZ Network Dome Camera from Arecont Vision is a 1/2.5" sensor camera that supports video resolutions up to 2560 x 1920 at 14 fps. It has a heater and features true day and night functionality with a mechanical IR cut filter and IR LEDs. A 3-8mm wide-angle lens is included with an aperture of f/1.4. It has a 113 to 43° field of view controlled by a 100Base-T Ethernet interface, and event alarm input and output connections. An SD card slot supports up to 32GB of local storage. This camera can be powered using PoE or a 12-48 VDC or 24 VAC power supply (available separately). Included in the package are a software CD, connection cables, and mounting hardware. - Remote focus/zoom via motorized P-iris lens
- SNAPstream reduces bandwidth without impacting image quality
- P-iris control video for depth of field and image clarity
- Binning mode for strong low-light performance
- CorridorView allows 90° image rotation for coverage in hallways and corridors
- Privacy mask, motion detection, flexible cropping, bit rate control, multi-streaming, multi-casting, and forensic zooming
- Total PoE solution (no external power required for heater)
- Outdoor rated IP66 and IK10 impact-resistant housing
In the Box Arecont Vision AV5355PMIR-SH MegaDome G3 5MP Outdoor PTZ Network Dome Camera with Heater Dome Cover Mounting Plate Mounting Hardware Mounting Template Magnetic Core I/O Cable AC & DC Auxiliary Power Cable Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV5355PMIR-SH MegaDome G3 5MP Outdoor PTZ Network Dome Camera with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV5355 Specs | | | Sensor | 5 MP 1/2.5" | | Focal Length | 3 to 8mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 2.67x
Digital: 20x | | Lens Field of View | Horizontal: 113 to 43° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.3 Lux
B&W: 0.03 Lux | | Shutter Speed | 1/1000 to 1/2 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 77° | | | | Streaming Resolution | 2048 x 1536 at 21 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 8 Streams | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | DHCP, HTTP, IPv4/v6, QoS Layer 3 DiffServ, RTP, RTSP, TCP, TFTP, UDP | | | | Application Programming Interface (API) | ONVIF | | Event Trigger | Yes | | Event Action | Alarm | | | | Recording Media | SD (Up to 32 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x Power
1 x RJ45 | | IR Illuminators | 12 x 850 nm | | IR Range | 50' / 15.24 m at 60/80° | | Certifications | EN 55022 Class A, EN 55024, IEC 61000-3-2, IEC 61000-3-3, IEC60950-1, UL, as per Manufacturer | | Internal Storage | None | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | 2.28 W (With Heater) | | Material of Construction | Aluminum | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
