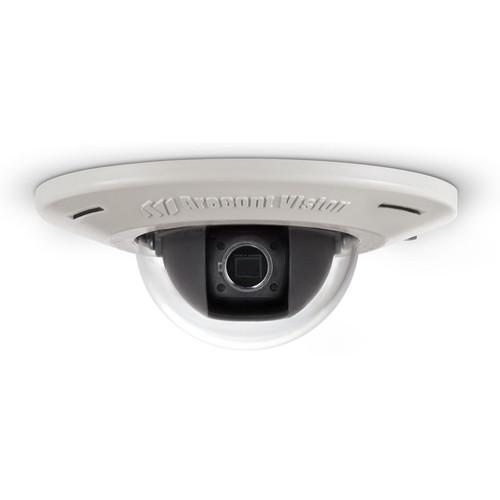

User Manual for Arecont Vision AV5455DN-F MicroDome H.264 Ultra Low Profile Recessed Mount Day Night IP Camera with No Lens Click to enlarge the picture
Contents of the user manual for the Arecont Vision AV5455DN-F MicroDome H.264 Ultra
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision AV5455DN-F MicroDome H.264 Ultra contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision AV5455DN-F MicroDome H.264 Ultra Low Profile Recessed Mount Day / Night IP Camera is a Megapixel IP camera that delivers 5 Mp 2592 x 1944 resolution at 14 fps. This small, ultra-low profile camera offers high image quality, compression, and fast frame rate. Its spring arm design makes installation a snap. All you have to do is simply slide the camera through the hole and secure the magnetized cover ring with a single screw. The camera comes equipped with a mechanical Day / Night switcher, while pixel binning delivers enhanced low-light capabilities. - Easy installation / factory focused
- Ultra low profile design / small size
- True Day / Night functionality with a mechanical IR cut filter
- All-in-one H.264 total PoE (Power over Ethernet) solution with integrated 4mm lens and dome housing
- Dual Encoder H.264 / MJPEG
- Binning Mode for strong low light performance
- Privacy mask, motion detection, flexible cropping, and forensic zooming
- ONVIF and PSIA conformant for maximum interoperability
In the Box Arecont Vision AV5455DN-F MicroDome H.264 Ultra Low Profile Recessed Mount Day/Night IP Camera with No Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV5455DN-F MicroDome H.264 Ultra Low Profile Recessed Mount Day Night IP Camera with No Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV5455 Specs | Image Sensor | 5 Mp (CMOS) | | Optical Format | 1/2.5" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color: 0.5 lux at F1.6Color Binning: 0.15 lux at F1.8Day / Night: 0 lux, IR sensitive | | Field of View | 2592 x 1944 (H x V) | | Cropped (FOV) Resolution | 1296 x 972 (H x V) | | Dynamic Range | 70.1 dB | | Frame Rates | At Maximum Resolution: 14 fps (2592 x 1944)Cropped: 21 fps (2048 x 1536), 29 fps (1920 x 1080), 41 fps (1280 x 1024) | | Binning | 34 fps (1296 x 972), 46 fps (1024 x 768), 64 fps (960 x 540) | | | | Compression Type | H.264 (MPEG-4, Part 10) / Motion JPEG 21 levels of quality | | Transmission Protocol | RTSP, RTP / TCP, RTP / UDP, HTTP, TFTP, DHCP | | Data Rate | Bit rate control from 100 Kb/s to 10 Mb/s 100Base-T Ethernet network interface | | Multi-Streaming | 8 non-identical streams | | Programmability | Motion detection and privacy mask with 1024 detection zonesShutter Speed: 1 to 500 msPixel Binning ModeMoonLight Mode: extended exposure and proprietary noise cancellationFlexible cropping (resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264)Low light noise filter controlBit rate and bandwidth limitation controlBacklight compensation and multi-matrix white balance50/60 Hz selectable flicker control Electronic PTZ (pan, tilt, zoom), and image flip 180°Programmable resolution, brightness, saturation, gamma, sharpness, tint | | | | Standard | Industry Standard: PSIA and ONVIF conformant | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Marking | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 | | | | Temperature | Operating Temperature: 23 to 140°F (-5 to 50°C)Stable Image Temperature: 32 to 122°F (0 to 50°C)Storage Temperature: -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 90% (non-condensing) | | | | Input & Output | General purpose opto-coupled | | PoE | PoE 802.3af, Class 3 | | Maximum Power Consumption | 5.59 W | | | | Casing | In-ceiling mount with die-cast aluminum cover and 2.00" (5.08 cm) polycarbonate dome bubble vandal resistant | | Lens | 4 mm board mount (M12), fixed iris, 1.6 mm aperture | | Gimbal | Easy 2 axis camera adjustment with 359° pan and 90° tilt | | Dimensions (Ø x H) | 4.00 x 3.10" (10.16 x 7.87 cm) | | Weight | 0.7 lb (0.3 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
