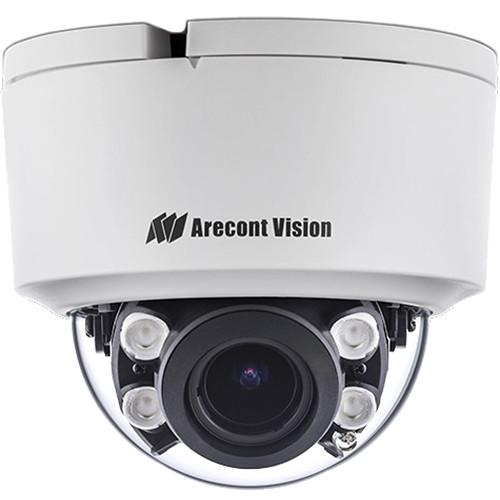

User Manual for Arecont Vision Contera AV05CID-100 5MP Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision Contera AV05CID-100 5MP Network
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision Contera AV05CID-100 5MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Contera AV05CID-100 5MP Network Dome Camera from Arecont Vision uses a 1/2.9" progressive scan CMOS sensor to capture 2592 x 1944 resolution video at up to 30 fps. Four IR LEDs provide up to 66' of illumination in low-light conditions. The camera's 2.7-13.5mm motorized varifocal lens delivers a 79-22° horizontal field of view and 5x optical zoom. A built-in memory card slot accepts microSDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. - Smart IR and NightView technology for low-light conditions
- Mechanical IR cut filter for day and night functionality
- H.265, H.264, and MJPEG video compressions
- SNAPstream+ (Smart Noise Adaptation and Processing) optimizes bandwidth efficiency
- 500 to 0.1 ms programmable shutter speed
- Multicasting, forensic zooming, and scaling
- Camera pivots 350° horizontally and 60° vertically
- Auto and manual white balance
- Auto backlight compensation
- Enhanced wide dynamic range up to 120 db
- Supports adjustment between wide dynamic range and low dynamic range modes
- Image settings include programmable brightness, contrast, sharpness, saturation, and hue
- Unlimited privacy masking
- Motion detection for up to 1024 zones
- Smart region of interest (ROI) and group of pictures (GOP)
- Event triggers include motion detection, tampering detection, and alarm in
- Notifications include send/record message via email/FTP/NAS/microSD card, and record JPG/MP4
- CorridorView (90, 180, and 270° image rotation) and mirroring
- Live viewing/administrator for up to 10 clients
- 16-digit ASCII character password
- FCC, RoHS, REACH, WEEE, and CE compliant
In the Box Arecont Vision Contera AV05CID-100 5MP Network Dome Camera Mounting Template Accessory Pack Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision Contera AV05CID-100 5MP Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV05CID Specs | | | Sensor | 5 MP 1/2.9" CMOS | | Focal Length | 2.7 to 13.5mm | | Maximum Aperture | f/1.3 | | Zoom | Optical: 5x | | Lens Field of View | Horizontal: 79 to 22°
Vertical: 59 to 16° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.1 Lux
B&W: 0.01 Lux | | | | Streaming Resolution | 2592 x 1944 at 30 fps (8 Mb/s ) | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | DHCP, FTP, HTTP, IPv4/v6, NTP, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP, Zero Configuration | | | | Application Programming Interface (API) | ONVIF Profiles S & G | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45 | | IR Range | 66' / 20.12 m | | Internal Storage | None | | External Storage Options | NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | 7.7 W | | Material of Construction | Plastic, Polymer | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 10 to 90% | | Dimensions |
