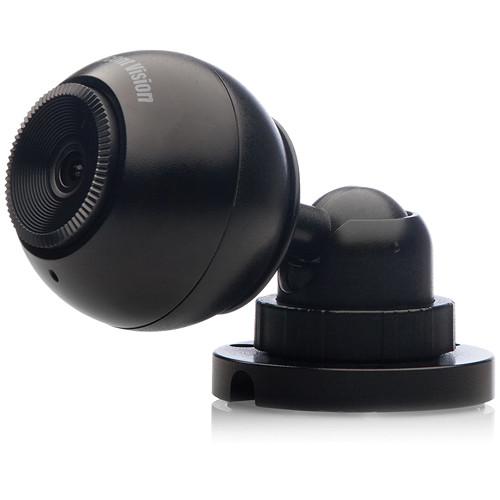

User Manual for Arecont Vision MegaBall 2 Day Night 5MP Indoor Wall Mount IP Dome Camera with ImmerVision Enables Panomorph Lens Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaBall 2 Day Night
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaBall 2 Day Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The black MegaBall 2 Day/Night 5MP Indoor Wall Mount IP Dome Camera with Panomorph Lens from Arecont Vision supports the H.264 (MPEG-4, Part 10) format and provides 2592 x 1944 resolution images at a full video frame rate of 14 fps. The panomorph lens offers a close proximity panoramic view through the use of an ImmerVision Enables panomorph lens and software system. The elliptical panomorph image is dewarped to provide 180° or 360° views with impressive resolution. With day/night capabilities, this camera allows for 24-hour surveillance.This camera provides ample resolution to zoom in for details in live or recorded video. H.264 compression reduces network bandwidth and storage requirements, while delivering full frame rates and full resolution without sacrificing image quality. It also features the Binning Mode that allows you to capture color images in illumination levels as low as 0.15 lux. With bit-rate control, the CPU load is decreased at both the client (decompression) side and the server/storage side, allowing lower bandwidth and storage relative to MJPEG. Real Time Streaming Protocol (RTSP) allows for compatibility with media players such as Apple QuickTime, VLC, and others.With the ability to digitally Pan-Tilt-Zoom (PTZ) images, you can view the details you need to see at any time, such as license plates, faces, and other objects of interest. - Integrated ImmerVision Panomorph solution for 180° and 360° field of view
- Motion detection and privacy masking with 1024 detection zones
- Binning mode for optimum low-light performance
- True day/night functionality with mechanical IR cut filter
- Programmable shutter speed to help control motion blur
- Flexible cropping (resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264)
- Low-light noise filter control
- Bit rate and bandwidth limitation control
- Backlight compensation and multi-matrix white balance
- 50/60 Hz selectable flicker control
- Electronic pan, tilt, zoom (PTZ), and image flip 180°
- Programmable resolution, brightness, saturation, gamma, sharpness, and tint
- Installer-friendly cable management, 3-axis adjustment, wall mount dome
- PoE and Auxiliary Power: 12 to 48VDC/24VAC
- Privacy masking, motion detection, flexible cropping, bit-rate control, multi-streaming, and forensic zooming
- Unique bracket design encloses all cables, providing better protection from tampering and a more professional installation
In the Box Arecont Vision MegaBall 2 Day/Night 5MP Indoor Wall Mount IP Dome Camera with ImmerVision Enables Panomorph Lens (Black) Mounting Template AV100 Software CD (License Key Required for Recording) Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaBall 2 Day Night 5MP Indoor Wall Mount IP Dome Camera with ImmerVision Enables Panomorph Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV5245 Specs | | | Image Sensor | 5 MP | | Optical Format | 1/2.5" CMOS | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (day mode): 0.3 lux
Color Binning (day mode): 0.15 lux
B/W (night mode): 0 lux, IR sensitive | | Resolution | FOV: H x V: 2592 x 1944 (5 MP)
1/4 Resolution: H x V: 1296 x 972 (1/4 resolution) | | Dynamic Range | 70.1 dB | | Signal to Noise Ratio | 45 dB maximum | | Frame Rates | At maximum resolution: 14 fps @ 2592 x 1944, 16.5 fps @ 2560 x 1600, 21 fps @ 2048 x 1536, 31 fps @ 1600 x 1200, 29 fps @ 1920 x 1080, 41 fps @ 1280 x 1024
Binning Mode: 34 fps @ 1286 x 972, 41 fps @ 1280 x 800, 47 fps @ 1024 x 768, 64 fps @ 800 x 600, and 64 fps @ 860 x 540 | | Lens | Manual Panomorph Lens: 0.04" (0.98 mm) (short axis), 0.05" (1.12 mm) (long axis)
F2.0, M12, H-FOV = 182° | | | | Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG, 21 levels of quality | | Transmission Protocol | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP
100Base-T Ethernet Network Interface | | Multi-Streaming | 8 non-identical streams | | Compliance | Industry Standard: PSIA Conformant
Listings UL (CB): FCC Compliance 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
Markings: (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 | | Motion Detection | 1024 zones | | PTZ | Electronic multiple PTZ windows | | Image Settings | Electronic image flip, privacy mask, binning mode | | I/O | 1 Input / 1 Output | | Shutter | 1 to 500 ms | | | | Alarm I/O | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 2 | | Auxiliary Power Input | DC Input: Aux. 12 to 48 VDC
AC Input: Aux. 24 VAC
5.3 W | | Maximum Power Consumption | DC: 6.3 W | | | | Operating Temperature | -23 to 122°F (-5 to 50°C) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to +60°C) | | Humidity | 0 to 90% (non-condensing) | | | | Control Software | AV100/AV200 | | Regulatory Compliance | FCC, CE, UL Listed, REACH, RoHS, WEEE | | Industry Standards | PSIA | | Casing | Die-cast aluminum 3.0" (7.6 cm) metal ball and mount | | Gimbal | Easy 3-axis camera adjustment with 360° pan, 90° tilt and 360° z-axis | | Dimensions (Ø x H) | 3.0 x 6.2" (7.6 x 15.6 cm) | | Weight | 1.20 lb (0.54 kg) |
