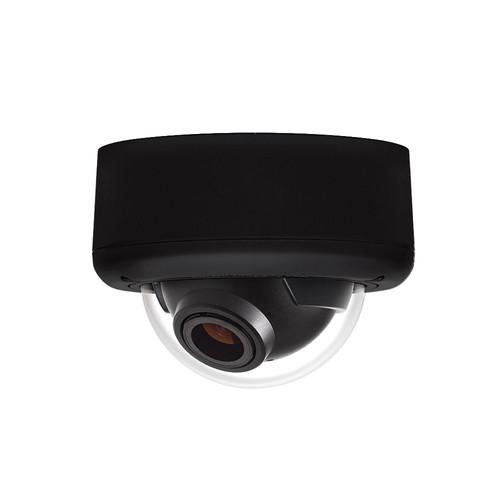

User Manual for Arecont Vision MegaBall 2 Series AV3245PM-D 3MP H.264 Motorized P-Iris Lens Day Night Surface Mount Indoor Dome IP Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaBall 2 Series AV3245PM-D
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaBall 2 Series AV3245PM-D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaBall 2 Series AV3245PM-D 3MP H.264 Motorized P-Iris Lens Day/Night Surface Mount Indoor Dome IP Camera from Arecont Vision is housed in a black plastic housing and provides ample resolution to zoom-in for details in live or recorded video. This indoor all-in-one solution features a 3MP image sensor with fast frame rates and an IR corrected, motorized, varifocal, P-iris lens. H.264 compression reduces network bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing image quality. Thanks to the day/night functionality, the camera offers clear images even in complete darkness. The binning mode allows for increased low-light sensitivity. - Remote focus/zoom P-iris lens
- P-iris control offers remarkable depth of field and image clarity
- Binning mode for efficient low-light performance at 3MP resolution
- True day/night functionality with mechanical IR-cut filter
- PoE and 12 to 48VDC/24VAC auxiliary power
- Dual encoder-H.264 and MJPEG
- H.264 compression reduces network bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing image quality
- Fast frame rates across different recording resolutions
- Multi-streaming and forensic zooming
- Motion detection and privacy masking with 1024 detection zones
- Programmable shutter speed to help control motion blur
- Flexible cropping (resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264)
- Low light noise filter control
- Bit-rate and bandwidth limitation control
- Backlight compensation and multi-matrix white balance
- 50/60 Hz selectable flicker control
- Electronic pan, tilt, zoom (PTZ) and image flip 180°
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Installer friendly cable management, 3-axis adjustment, surface mount dome
- Plastic surface mount black housing
In the Box Arecont Vision MegaBall 2 Series AV3245PM-D 3MP H.264 Motorized P-Iris Lens Day/Night Surface Mount Indoor Dome IP Camera (Black) Surface Mount Dome Cover (Bubble) O-Ring AV100 Software CD Security L-Key Pack of 3 Wood Screws & 3 Dry Wall Anchors Mounting Template Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaBall 2 Series AV3245PM-D 3MP H.264 Motorized P-Iris Lens Day Night Surface Mount Indoor Dome IP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3245 Specs | | | Image Sensor | 3 MP CMOS | | Optical Format | 1/2.5" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (day mode): 0.3 lux
Color Binning (day mode): 0.15 lux
B/W (night mode): 0 lux, IR sensitive | | Resolution | FOV: H x V: 2048 x 1536
1/4 Resolution: H x V: 1024 x 768 | | Dynamic Range | 70.1 dB | | Signal to Noise Ratio | 45 dB maximum | | Frame Rates | At maximum resolution: 21 fps (2048 x 1536)
Cropped: 29 fps (1920 x 1080), 41 fps (1280 x 1024)
Binning Mode: 46 fps (1024 x 768), 64 fps (960 x 540) | | Lens | Motorized Lens: 3 to 10 mm, 1/2.7", F1.3, remote zoom and focus, P-iris, H-FOV: 86 to 28° | | | | Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG, 21 levels of quality | | Transmission Protocol | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP
100Base-T Ethernet Network Interface | | Multi-Streaming | 8 non-identical streams | | Compliance | Industry Standard: PSIA Conformant
Listings UL (CB): FCC Compliance 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
Markings: (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 | | | | Alarm I/O | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 2 | | Auxiliary Power Required | 12 to 48 VDC, 24 VAC | | Maximum Power Consumption | 6.3 W DC | | | | Operating Temperature | -23 to 122°F (-5 to +50°C) | | Humidity | 0 to 90% (non-condensing) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to +60°C) | | | | Casing | Black surface dome with acrylic bubble | | Gimbal | Easy 3-axis camera adjustment with 360° pan, 90° tilt and 360° z-axis | | Dimensions (Ø x H) | 5.10 x 3.85" (13.00 x 9.8 cm) | | Weight | 1.20 lb (0.54 kg) |
