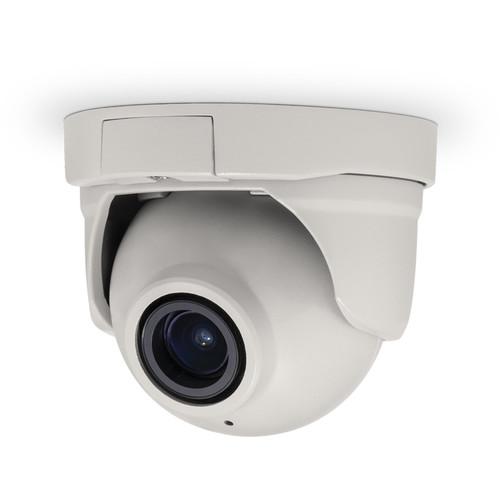

User Manual for Arecont Vision MegaBall G2 3MP Network Bell Mount Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaBall G2 3MP Network
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaBall G2 3MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaBall G2 3MP Network Bell Mount Camerafrom Arecont Vision is housed in a light gray plastic housing and records at up to 2048 x 1536 resolution and can zoom in for details in live or recorded video. This indoor all-in-one solution features a 3MP image sensor and an IR corrected, motorized, varifocal, P-iris lens. H.264 compression reduces network bandwidth and storage requirements while delivering full frame rate and full resolution video without sacrificing image quality. Thanks to the day/night functionality, the camera captures video in even complete darkness. Wide dynamic range (WDR) up to 100 dB at full resolution balances light and dark areas in the same scene and binning mode promotes increased low-light sensitivity. - Remote focus/zoom P-iris lens
- P-iris control offers remarkable depth of field and image clarity
- True wide dynamic range (WDR) up to 100 dB at full resolution balances light and dark areas in the same scene
- Binning mode for strong low-light performance at 3MP resolution
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- True day/night functionality with mechanical IR cut filter
- PoE and 12 to 48 VDC/24 VAC auxiliary power
- Dual encoder H.264 and MJPEG
- Fast frame rates across different recording resolutions
- Multi-streaming and forensic zooming
- Motion detection and privacy masking with 1024 detection zones
- Programmable shutter speed to help control motion blur
- Flexible cropping (resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264)
- Low light noise filter control
- Bit rate and bandwidth limitation control
- Backlight compensation and multi-matrix white balance
- 50/60 Hz selectable flicker control
- Electronic pan, tilt, zoom (PTZ) and image flip 180°
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Installer friendly cable management, 3-axis adjustment, bell surface mount
- Light gray bell mount housing
UPC: 847778007936 In the Box Arecont Vision MegaBall G2 3MP Network Bell Mount Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaBall G2 3MP Network Bell Mount Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3246 Specs | | | Image Sensor | 3 MP | | Optical Format | 1/2.5" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (day mode): 0.3 lux
Color Binning (day mode): 0.15 lux
B&W (night mode): 0 lux, IR sensitive | | Resolution | FOV: H x V: 2048 x 1536
1/4 Resolution: H x V: 1024 x 768 | | Dynamic Range | WDR up to 100 dB | | Signal to Noise Ratio | 49 dB maximum | | Frame Rates | At Maximum Resolution: 21 fps (2048 x 1536)
Cropped: 30 fps (1920 x 1080), 41 fps (1280 x 1024)
Binning Mode: 21 fps (1024 x 768), 27 fps (800 x 600), 31 fps (960 x 540), 32 fps (640 x 512) | | Lens | Motorized Lens: 2.8 to 8.5mm, f/1.2, remote zoom and focus, P-iris, HFOV: 94 to 32° | | Angle of View | 94 to 32° | | | | Compression Type | H.264 (MPEG-4, Part 10)/MJPEG, 21 levels of quality | | Transmission Protocol | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, IPv4, IPv6, QoS
100Base-T Ethernet Network Interface | | Multi-Streaming | 8 non-identical streams | | Compliance | Industry Standard: PSIA-Conformant
Listings: UL (CB)
FCC Compliance: 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
Markings: (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 | | | | Alarm I/O | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Required | 12 to 48 VDC, 24 VAC | | Maximum Power Consumption | 7.8 W | | | | Operating Temperature | -23 to 122°F (-5 to +50°C) | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -4 to 140°F (-20 to +60°C) | | | | Casing | Surface bell mount with die-cast aluminum housing | | Gimbal | Easy 3-axis camera adjustment with 360° pan, 90° tilt and 360° z-axis | | Dimensions (Ø x H) | 3.9 x 3.2" (10 x 8.7 cm) | | Weight | 1.15 lb (0.52 kg) |
