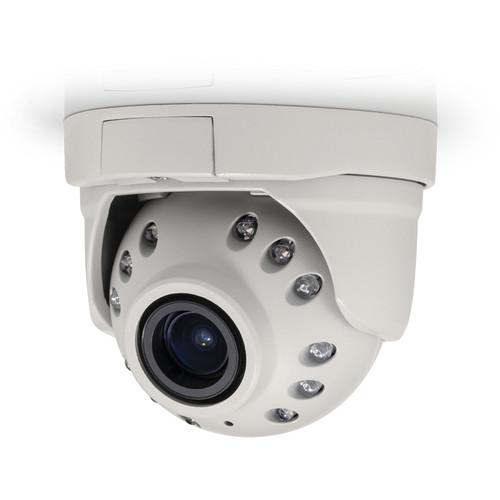

User Manual for Arecont Vision MegaBall G2 5MP Motorized Network Bell Mount Camera with P-Iris Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaBall G2 5MP Motorized
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaBall G2 5MP Motorized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaBall G2 5MP Motorized Network Bell Mount Camera from Arecont Vision is housed in a light gray plastic housing and provides ample resolution to zoom in for details in live or recorded video. This indoor all-in-one solution features a 5MP image sensor with high frame rates and an IR corrected, motorized, varifocal, P-iris lens. H.264 compression reduces network bandwidth and storage requirements while delivering full frame rates and resolution without sacrificing image quality. Thanks to its day/night functionality with binning mode the camera has increased low light sensitivity. The camera is equipped with 12 adjustable IR LEDs that allow it to record in complete darkness and an SDHC card slot that supports up to 32GB onboard storage. - Remote focus/zoom P-iris lens
- P-iris control offers remarkable depth of field and image clarity
- Binning mode for efficient low-light performance at 5MP resolution
- True day/night functionality with mechanical IR-cut filter
- PoE and 12 to 48VDC/24VAC auxiliary power
- Dual encoder H.264 and MJPEG
- H.264 compression reduces network bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing image quality
- High frame rates across different recording resolutions
- Multi-streaming and forensic zooming
- Adjustable IR illumination up to 50' for scenes with low or no ambient lighting
- Variable illumination ensures that IR light is evenly disbursed
- Motion detection and privacy masking with 1024 detection zones
- Programmable shutter speed to help control motion blur
- Flexible cropping (resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264)
- Low light noise filter control
- Bit rate and bandwidth limitation control
- Backlight compensation and multi-matrix white balance
- 50/60 Hz selectable flicker control
- Electronic pan, tilt, zoom (PTZ) and image flip 180°
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- SDHC card slot for onboard storage
- Installer-friendly cable management and 3-axis adjustment
- Light gray surface bell mount housing
UPC: 847778007950 In the Box Arecont Vision MegaBall G2 5MP Motorized Network Bell Mount Camera with P-Iris Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaBall G2 5MP Motorized Network Bell Mount Camera with P-Iris Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV5245 Specs | | | Image Sensor | 5 MP CMOS | | Optical Format | 1/2.5" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (day mode): 0.3 lux
Color Binning (day mode): 0.15 lux
B&W (night mode): 0 lux, IR sensitive | | Resolution (H x V) | FOV: 2592 x 1944
1/4 Resolution: 1296 x 972 | | Dynamic Range | 70.1 dB | | Signal to Noise Ratio | 45 dB maximum | | Frame Rates | Maximum Resolution: 14 fps (2592 x 1944)
Cropped: 21 fps (2048 x 1536), 29 fps (1920 x 1080), 41 fps (1280 x 1024)
Binning Mode: 34 fps (1296 x 972), 46 fps (1024 x 768), 64 fps (960 x 540) | | Lens | Motorized 3.4 to 10mm, 1/2.5", f/1.4, remote zoom and focus, P-iris, H-FOV: 102 to 35° | | IR LED / Night Vision Range | 12 x 850 nm adjustable LEDs, adjustable
50' (15 m) | | | | Compression Type | H.264 (MPEG-4, Part 10)/MJPEG, 21 levels of quality | | Transmission Protocol | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP
100Base-T Ethernet Network Interface | | SD Card Slot | Supports up to 32 GB of storage capacity for convenient onboard storage | | Multi-Streaming | 8 non-identical streams | | Compliance | PSIA
Listings UL (CB): FCC 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
Markings: (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 | | | | Alarm I/O | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 2 | | Auxiliary Power Required | 12 to 48 VDC, 24 VAC | | Maximum Power Consumption | 8.7 W | | | | Operating Temperature | -23 to 122°F (-5 to +50°C) | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -4 to 140°F (-20 to +60°C) | | | | Casing | Bell surface mount with die-cast aluminum housing | | Gimbal | Easy 3-axis camera adjustment with 360° pan, 90° tilt and 360° z-axis | | Dimensions (Ø x H) | 3.9 x 3.2" (10 x 8.7 cm) | | Weight | 1.15 lb (0.52 kg) |
