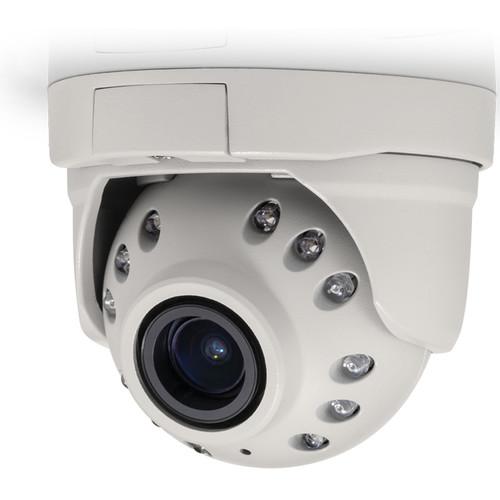

User Manual for Arecont Vision MegaBall G2-Series 1.2MP Network Ball Camera with Night Vision and STELLAR Low-Light Technology Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaBall G2-Series 1.2MP Network
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaBall G2-Series 1.2MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The light gray MegaBall G2-Series 1.2MP Network Ball Camera from Arecont Vision features CorridorView, a function that allows 90° image rotation for improved coverage in hallways and corridors. It uses non-integer scaling down to 128x96 and features a built-in SDHC card slot that accepts cards up to 32GB. The camera features a 1/3" sensor and a 2.8-8.5mm varifocal lens with a 102 to 34° field of view for capturing images at a maximum resolution of 1280 x 960.
This day/night camera provides 24-hour surveillance thanks to the removable IR-cut filter and built-in IR LEDs with a range of up to 50'. It can be powered via a PoE-compliant network cable connection or from a 12 to 48 VDC / 24 VAC power supply.The camera's interface allows for an intuitive, fast, and easy configuration, while the AV IP Utility tool allows users to quickly configure multiple cameras at one time. The camera is ONVIF Profile S (Open Network Video Interface Forum) and PSIA (Physical Security Interoperability Alliance) compliant, providing interoperability between network video products regardless of manufacturer. - 1.2MP, 1280 x 960 resolution
- 2.8-8.5mm wide angle lens with remote focus/zoom
- P-Iris control for optimum depth of field and image clarity
- Manually adjustable beam angle and LED intensity
- True day/night functionality with mechanical IR-cut filter
- Installer-friendly cable management and 3-axis adjustment
- Dual encoder (H.264/MJPEG)
- Multi-streaming and forensic zooming
- STELLAR (Spatio Temporal Low Light Architecture)
- Adjustable IR illumination up to 50' for scenes with low or no ambient lighting
- Variable illumination ensures that IR light is evenly disbursed
- SDHC card slot for onboard storage
- Programmable shutter speed to control motion blur
- Real-time motion detection with 1024 detection zones and privacy masking
- Flexible cropping with resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264
- Backlight compensation with auto multi-matrix white balance
- 50/60 Hz selectable flicker control
- Non-integer scaling down to 128x96
- Low-light noise filter control
- Bit rate and bandwidth limitation control
- Sharpness control with selectable enhancement level
- Programmable resolution, brightness, saturation, gamma, and tint
- 16-digit ASCII character password
In the Box Arecont Vision MegaBall G2-Series 1.2MP Network Ball Camera with Night Vision and STELLAR Low-Light Technology (Bell Mount) Bell Mount Mounting Template Security L-Key Installation Hardware Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaBall G2-Series 1.2MP Network Ball Camera with Night Vision and STELLAR Low-Light Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV1245 Specs | | | Image Sensor | 1.2 MP | | Optical Format | 1/3" | | Pixel Pitch | 3.75 μm | | Minimum Illumination | Color (Day Mode): 0.02 lux
B&W (Night Mode):0.002 lux, 0 lux, IR sensitive | | Resolution (H x V) | FOV: 1280 x 960
1/4 Resolution: 640 x 480 | | Dynamic Range | 83.5 dB | | Signal to Noise Ratio | 54 dB maximum | | Frame Rates | Maximum Resolution: 37 fps (1280 x 960) | | Lens | Motorized 2.8-8.5mm f/1.2, remote zoom and focus, P-iris
H-FOV: 102 to 34° | | LEDs | 12 x 850 nm adjustable LEDs with adjustable IR | | IR Range | 50' / 15 m maximum | | Projection Angle | 60° and 80° | | | | Compression Type | H.264 (MPEG-4, Part 10)/MJPEG, 21 levels of quality | | Transmission Protocol | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, IPv4, IPv6, QoS
100Base-T ethernet network interface | | Multi-Streaming | 8 non-identical streams | | Compliance | Industry Standard: ONVIF Profile S, PSIA conformant
Listings: UL (CB)
FCC Compliance: 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
Markings: (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 | | | | Alarm Output | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Required | 12 to 48 VDC, 24 VAC | | Maximum Power Consumption | 8.2 W | | | | Operating Temperature | -23 to 122°F / -5 to +50°C | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -4 to 140°F / -20 to +60°C | | | | Casing | Surface mount with die-cast aluminum housing | | Storage | SDHC card slot (Up to 32 GB supported) | | Gimbal | Easy 3-axis camera adjustment with 360° pan, 90° tilt and 360° z-axis | | Dimensions | 3.9 x 3.2" / 10 x 8.7 cm | | Weight | 1.15 lb / 0.52 kg |
