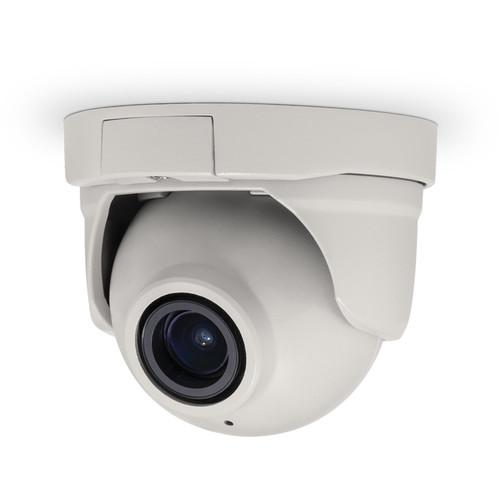

User Manual for Arecont Vision MegaBall G2 Series 1080p Network Ball Camera with 2.8 to 8.5mm Motorized Lens Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaBall G2 Series 1080p
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaBall G2 Series 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaBall G2 Series 1080p Network Ball Camera from Arecont Vision features a 2.07MP image sensor and an IR corrected, motorized, varifocal, P-iris lens. The H.264 compression reduces network bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing image quality. Night vision-capable, it can capture images in total darkness with the use of an IR emitter (available separately). Wide dynamic range (WDR) up to 100 dB at full resolution balances light and dark areas in the same scene. - Remote focus/zoom P-iris lens
- P-iris control offers remarkable depth of field and image clarity
- True Wide Dynamic Range (WDR) up to 100 dB at full resolution balances light and dark areas in the same scene
- True day/night functionality with mechanical IR cut filter
- PoE and 12 to 48 VDC/24 VAC auxiliary power
- Dual codec encoding (H.264 and MJPEG)
- H.264 compression reduces network bandwidth and storage requirements while delivering full frame rates and resolution without sacrificing image quality
- Multi-streaming and forensic zooming
- Motion detection and privacy masking with 1024 detection zones
- Programmable shutter speed to help control motion blur
- Flexible cropping (resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264)
- Low light noise filter control
- Bit rate and bandwidth limitation control
- Backlight compensation and multi-matrix white balance
- 50/60 Hz selectable flicker control
- Electronic pan, tilt, zoom (PTZ), and image flip 180°
- Programmable resolution, brightness, saturation, gamma, sharpness, and tint
- Light gray plastic bell mount housing
UPC: 847778007882 In the Box Arecont Vision MegaBall G2 Series 1080p Network Ball Camera with 2.8 to 8.5mm Motorized Lens Bell Mount Software CD Security L-Key Installation Hardware Mounting Template Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaBall G2 Series 1080p Network Ball Camera with 2.8 to 8.5mm Motorized Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV2246 Specs | | | Image Sensor | 2.07 MP | | Optical Format | 1/3.2" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (Day Mode): 0.3 lux
B&W (Night Mode): 0 lux, IR sensitive | | Resolution (H x V) | FOV: 1920 x 1080
1/4 Resolution: 960 x 540 | | Dynamic Range | WDR up to 100 dB | | Signal to Noise Ratio | 49 dB maximum | | Frame Rates | Maximum Resolution: 30 fps (1920 x 1080)
Cropped: 41 fps (1280 x 1024) | | Lens | Motorized 2.8 to 8.5mm, f/1.2, remote zoom and focus, P-iris, H-FOV: 88 to 30° | | | | Compression Type | H.264 (MPEG-4, Part 10)/MJPEG, 21 levels of quality | | Transmission Protocol | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP
100Base-T Ethernet network interface | | Multi-Streaming | 8 non-identical streams | | Compliance | Industry Standard: ONVIF Profile S, PSIA-conformant
Listings: UL (CB)
FCC Compliance: 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
Markings: (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 | | | | Alarm I/O | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 2 | | Auxiliary Power Required | 12 to 48 VDC, 24 VAC | | Maximum Power Consumption | 7.8 W | | | | Operating Temperature | -23 to 122°F (-5 to +50°C) | | Humidity | 0 to 90% (non-condensing) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to +60°C) | | | | Casing | Surface mount with die-cast aluminum housing | | Gimbal | Easy 3-axis camera adjustment with 360° pan, 90° tilt and 360° z-axis | | Dimensions | 3.9 x 3.2 (10 x 8.7 cm) | | Weight | 1.15 lb (0.52 kg) |
