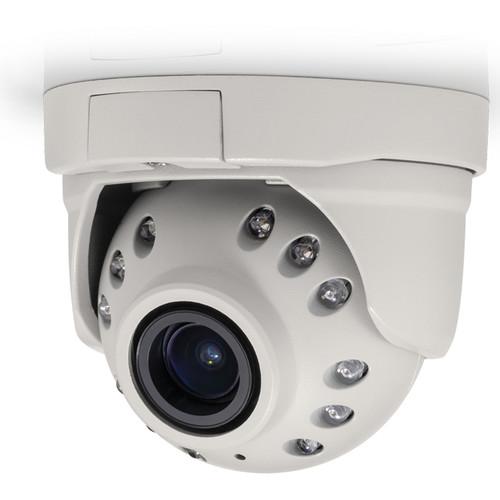

User Manual for Arecont Vision MegaBall G2 Series 2.07MP Network Ball Camera with Night Vision and Audio

• Product category: Wired IP Cameras Arecont Vision
• Brand: Arecont Vision
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Arecont Vision Wired IP Cameras

Product description

• 2.07MP, 1920 x 1080 resolution

• 2.8-8.5mm wide angle lens with remote focus/zoom

• P-iris control for optimum depth of field and image clarity

• Manually adjustable beam angle and LED intensity

• True day/night functionality with mechanical IR cut filter

• Tamper-resistant housing

• Installer-friendly cable management and 3-axis adjustment

• Dual encoder (H.264/MJPEG)

• Multi-streaming and forensic zooming

• Casino Mode for maintaining 30 fps

• Adjustable IR illumination up to 50' for scenes with low or no ambient lighting

• Variable illumination ensures that IR light is evenly disbursed

• SDHC card slot for onboard storage

• Programmable shutter speed to control motion blur

• Real-time motion detection with 1024 detection zones and privacy masking

• Flexible Cropping: Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264

• Backlight Compensation: Auto multi-matrix white balance

• 50/60 Hz selectable flicker control

• Non-integer scaling down to 128 x 96

• Low-light noise filter control

• Bit rate and bandwidth limitation control

• Selectable sharpness enhancement level

• Programmable resolution, brightness, saturation, gamma, and tint

• 16-digit ASCII character password

Camera
• Dynamic Range: 69.5 dB
  Signal to Noise Ratio: 44 dB maximum

Compliance
• Industry Standard: ONVIF Profile S, PSIA-conformant
  Listings: UL (CB)
  FCC Compliance: 47 CFR 15 Class A
  Environmental: RoHS, REACH, WEEE
  Markings: (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Arecont Vision AV2245 Specs

Recording Media	SD (Up to 32 GB)
Pan/Tilt	Manual Pan: 360° Manual Tilt: 90°
Alarm I/O	1 / 1
I/O Connections	1 x RJ45
IR Illuminators	12 x 850 nm
IR Range	50' / 15.24 m at 80°
Internal Storage	None
Power Source	DC, PoE 802.3af (15 W)
Power Consumption	8.1 W
Material of Construction	Aluminum
Operating Temperature	-23 to 122°F / -30 to 50°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90%
