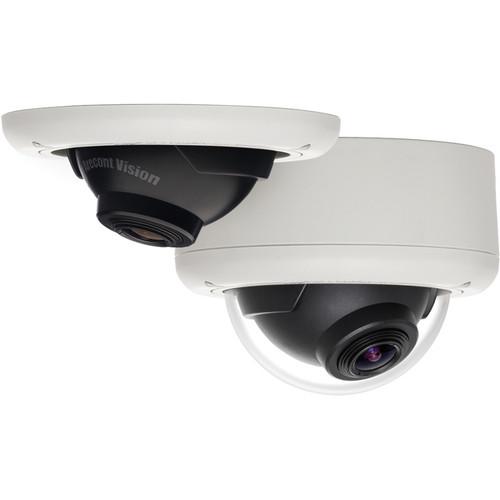

User Manual for Arecont Vision MegaBall Series AV2146DN-3310-D-LG 3.3 to 10mm 1080p 2.07 Mp IP WDR Indoor Day Night Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaBall Series AV2146DN-3310-D-LG 3.3
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaBall Series AV2146DN-3310-D-LG 3.3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The stylish MegaBall Series AV2146DN-3310-D-LG 3.3 to 10mm 2.07 Mp IP WDR Indoor Day / Night Camera from Arecont Vision provides ample resolution to zoom-in for details in live or recorded video. This 1080p indoor all-in-one IP camera integrates a 2.07 Mp lens with fast frame rates of 30 fps and an IR-corrected 3.3 to 10mm varifocal lens with a light gray surface dome housing. The H.264 compression reduces network bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing image quality. As part of the Day / Night operation, the MegaBall camera includes low-light enhancing technology such as adaptive noise cancellation. Also, the day / night functionality allows for 24-hour surveillance. Furthermore, the WDR (Wide Dynamic Range) feature delivers a dynamic range of up to 100 dB at full resolution and balances light and dark areas in the same scene (1080p and 3 Mp).
For easy install configuration and ongoing control, the user-friendly Web interface management system is loaded with easy-to-use menus to adjust and fine tune your camera settings. Slider bars and numeric text boxes allow complete control of camera features such as image settings, video compression, H.264 stream settings, network options, user-friendly Web interface, motion detection, privacy mask settings, administration, and camera details.
The MegaBall camera delivers impressive resolution to capture significant detail whether viewing live or recorded / archived video. With the ability to digitally Pan-Tilt-Zoom (PTZ) images, you can view the details you need to see at any time, such as license plates, faces, and other objects of interest. The enhanced resolution along with varying fields of view allows it to do the work of multiple conventional cameras and provide critical forensic information, all without the need and associated expense of system operators having to catch activities of interest as they occur.
Users can achieve clear images in extreme low-light conditions with the WDR-enabled camera at resolutions of 1080p and 3 Mp. WDR up to 100 dB at full resolution balances light and dark areas in the same scene, such as in the lobby of an office building or the loading dock at a distribution facility. General Features - All-in-One H.264 indoor 3" (76.2mm) ball shape camera with 2.07 Mp integrated lens
- WDR (wide dynamic range) & auto exposure
- True day / night functionality with Mechanical IR cut filter
- 3.3 to 10mm vari-focal lens
- Tamper-resistant light gray dome housing
- Installer Friendly: external lens adjustment, cable management, 3-axis adjustment, acrylic bubble
- Dual encoder H.264 (MPEG Part 10) & MJPEG
- 1024 zones motion detection and privacy mask
- PoE & Auxiliary Power: 12 to 48VDC / 24VAC
- True WDR up to 100 dB at full resolution allows users to see clearly in shaded and bright light conditions simultaneously
- Enhanced low-light performance
- User-friendly Web interface
Enhanced Low Performance - As part of the superior Day / Night operation, the MegaBall camera includes low-light enhancing technology such as adaptive noise cancellation.
User-Friendly Web Interface - For easy install configuration and ongoing control, the user-friendly web interface management system is loaded with easy to use menus to adjust and fine tune your camera settings. Slider bars and numeric text boxes allow complete control of camera features such as image settings, video compression, H.264 stream settings, network options, user-friendly web interface, motion detection, privacy mask settings, administration, and camera details.
Compliant H.264 Compression - Compliant implementation of H.264 allows full frame rates and full resolution without sacrificing image quality
- H.264 and MJPEG dual compression support with simultaneous streaming
- Decreases the CPU load both at the client (decompression) side and the server / storage side
- Lower bandwidth and storage relative to MJPEG
- Bit-rate control to maintain desired bandwidth and storage size
- RTSP (Real Time Streaming Protocol) allows for compatibility with media players such as Apple QuickTime, VLC, and others
Forensic Zooming - The MegaBall camera delivers impressive resolution to capture significant detail whether viewing live or recorded / archived video. With the ability to digitally Pan-Tilt-Zoom (PTZ) images, you can view the details you need to see at any time, such as license plates, faces and other objects of interest. The superior resolution along with varying fields of view allows it to do the work of multiple conventional cameras and provide critical forensic information, all without the need and associated expense of system operators having to catch activities of interest as they occur.
Wide Dynamic Range - Users can achieve clear images in extreme light conditions with the WDR enabled camera at resolutions of 1080p and 3 Mp. Wide Dynamic Range up to 100 dB at full resolution balances light and dark areas in the same scene, such as in the lobby of an office building or the loading dock at a distribution facility.
Programmability - Wide dynamic range switch control
- Flexible cropping (resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264)
- Low-light noise filter control
- Bit rate and bandwidth limitation control
- Backlight compensation and multi-matrix white balance
- Electronic PTZ (pan, tilt, zoom) and image flip 180°, 50 / 60 Hz selectable flicker control
- Programmable resolution, brightness, saturation, gamma, sharpness, tint, and shutter speed
- Programmable shutter speed to help control motion blur
- MoonLight mode for extended exposure and noise cancellation
- Simultaneous delivery of full field of view & zoomed images
- Bandwidth & storage savings by running at 1/4 resolution
Compliance - Industry Standard: PSIA & ONVIF Conformant
- FCC Compliance: 47 CFR 15 Class A
- Environmental: RoHS, REACH, WEEE
- Markings: (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950
In the Box Arecont Vision MegaBall Series AV2146DN-3310-D-LG 3.3 to 10mm 1080p 2.07 Mp IP WDR Indoor Day / Night Camera AV100 Software CD Mounting Template Pack of 3 Wood Screws & 3 Dry Wall Anchors Security L-Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaBall Series AV2146DN-3310-D-LG 3.3 to 10mm 1080p 2.07 Mp IP WDR Indoor Day Night Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV2146 Specs | | | Image Sensor | 2.07 Mp (1080p) CMOS image sensor | | Optical Format | 1/3.2" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | 0 lux, IR sensitive | | Resolution (H x V) | Full FOV: 1920 x 1080
1/4 Resolution: 960 x 540 | | Dynamic Range | WDR up to 100 dB | | SNR | 49 dB (maximum) | | Frame Rates | At Maximum Resolution: 30 fps (1920 x 1080)
Cropped: 41 fps (1280 x 1024) | | Lens | 3.3 to10 mm, 1/2.5", F1.6 , 90 to 31° (HFOV)
External lens adjustment for zoom, focus, and iris | | | | Compression Type | H.264 (MPEG-4, Part 10) / Motion JPEG
H.264 (MPEG-4, Part 10) / Motion JPEG | | Protocols | RTSP, RTP / TCP, RTP / UDP, HTTP, DHCP, TFTP | | Network Interface | 100 Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Digital Input | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 2 | | Power | Aux Power: 12 to 48 VDC, 24 VAC | | Maximum Power Consumption | 6 W DC power | | | | Casing | Plastic surface dome with Acrylic bubble | | Gimbal | Easy 3-axis camera adjustment with 360° pan, 90° tilt, and 360° z-axis | | Mount | Surface Mount | | | | Operating Temperature | -23 to 122°F (-5 to +50°C) | | Stable Image Temperature | 32 to 122°F (0 to +50°C) | | Storage Temperature | -4 to 140°F (-20 to +60°C) | | Humidity | 0 to 90% (non-condensing) | | | | Dimensions (Ø x H) | 5.10 x 3.85" (129.54 x 97.79 mm) | | Weight | 2.25 lb (1.02 kg) |
