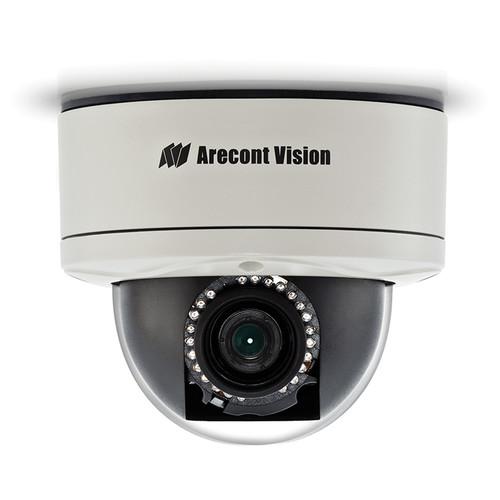

User Manual for Arecont Vision MegaDome 2 3MP Outdoor Vandal-Resistant Network Dome Camera with Night Vision and Heater Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaDome 2 3MP Outdoor
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaDome 2 3MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaDome 2 3MP Outdoor Vandal-Resistant Network Dome Camera with Night Vision and Heater from Arecont Vision has a 1/2.5" CMOS sensor and a 2.8-8mm varifocal lens to capture high-quality 2048 x 1536 resolution video at up to 21 fps. Integrated IR LEDs around the lens help the camera produce clear images in complete darkness from up to 50' away.
The motorized lens allows you to monitor a specific area, while PoE technology makes installation quick and simple. The camera is housed in an IP66- and IK10-rated enclosure for protection against dust, water, and impact, making it suitable for use outdoors and in high-risk areas. - 3MP 1/2.5" CMOS sensor captures 2048 x 1536 resolution video at up to 21 fps
- Mechanical IR cut filter and IR LEDs provide visibility of objects in complete darkness from up to 50' away
- 2.8-8mm varifocal lens with remote focus and zoom and a 94-34° field of view
- Built-in heater for operation in extreme temperatures down to -40°F
- SD/SDHC card slot for local video storage
- P-iris control for depth of field and image clarity
- Binning mode for low-light performance
- CorridorView allows 90° image rotation
- Privacy mask, motion detection, flexible cropping, bit rate control, multi-streaming, forensic zooming, and non-integer scaling
- H.264 and MJPEG dual compression
- RJ45 Ethernet connection with PoE for quick installation
- IP66- and IK10-rated enclosure for use outdoors and in high-risk environments
In the Box Arecont Vision MegaDome 2 3MP Outdoor Vandal-Resistant Network Dome Camera with Night Vision and Heater AC and DC Power Cable I/O Cable Security L-Key Single-Sided Hex Key Double-Sided Hex Key Magnetic Core Mounting Hardware Mounting Template Software CD with License Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaDome 2 3MP Outdoor Vandal-Resistant Network Dome Camera with Night Vision and Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3255 Specs | | | Image Sensor | 3 MP CMOS | | Optical Format | 1/2.5" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color: 0.3 lux
Color Binning: 0.15 lux
B&W: 0 lux, IR sensitive | | Resolution | Full Field of View: 2048 x 1536
1/4: 1024 x 768 | | Dynamic Range | 70.1 dB | | Signal to Noise Ratio (SNR) | 45 dB | | Lens | 1/2.7" 2.8-8mm varifocal, remote zoom and focus, P-iris | | Aperture | f/1.2 | | Field of View | 94-34° | | Video Frame Rate | 21 fps at 2048 x 1536
29 fps at 1920 x 1080
41 fps at 1280 x 1024
46 fps at 1024 x 768
64 fps at 960 x 540 | | Day/Night | Mechanical IR cut filter | | Number of IR LEDs and Range | 24 x IR LEDs, up to 50' (15 m) | | IR LED Wavelength | 850 nm | | IR LED | 40° beam angle | | | | Compression Type | H.264 (MPEG-4, Part 10) and MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Motion Detection | Up to 1,024 detection zones | | Scaling | Non-integer scaling down to 128 x 96 | | Cropping | Flexible Cropping: Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264 | | Control | Flicker Control: 50/60 Hz selectable
Low-light noise filter control
Bit rate and bandwidth limitation control | | PTZ | ePTZ | | Shutter Speed | Programmable | | White Balance | Backlight compensation and multi-matrix white balance | | Flicker Frequency | 50/60 Hz | | Image Adjustments | 180° image flip or CorridorView (90, 180, and 270°) | | Settings | Programmable resolution, brightness, saturation, gamma, sharpness, tint | | | | Interoperability | ONVIF Profile S, PSIA conformant | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | IP Rating | IP66 | | IK Rating | IK10 | | | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Humidity | 0 to 90%, non-condensing | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | | | Input/Output | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Input | 12-48 VDC and 24 VAC | | Maximum Power Consumption | Camera: 12.1 W
Heater: 2.28 W | | | | Memory Card Support | SD/SDHC card up to 32 GB (available separately) | | Casing | Die-cast aluminum chassis with 4" (10.2 cm) polycarbonate dome bubble | | Gimbal | Easily adjustable, 3-axis with 360° pan, 90° tilt, and 360° z-axis | | Dimensions | 5.5 x 4.9" (140 x 125 mm) | | Weight | 2.25 lb (1 kg) |
