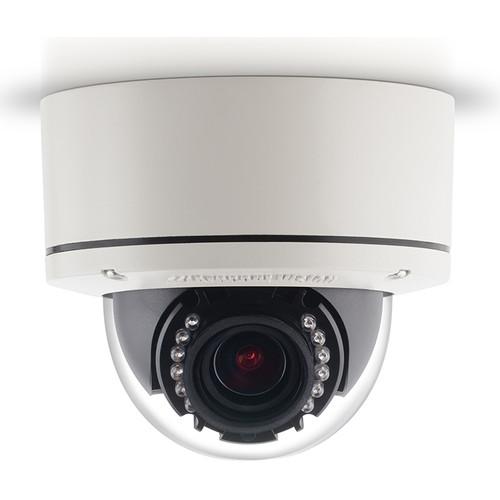

Product description The MegaDome 4K 8.3MP Outdoor Network Dome Camera from Arecont Vision delivers a maximum resolution of 3840 x 2160 at a 30 fps frame rate, whether viewing live or recorded/archived video. The built-in dual mode allows the camera to switch between 4K and 1080p. It features a 4.4-10mm P-iris lens with remote focus and zoom function.The camera uses SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting the image quality. With NightView technology and pixel binning mode, the camera is suitable for applications with challenging lighting conditions. The camera comes with a microSDHC card slot that supports up to 32GB of on-board storage (card available separately). The IP66-rated water/dust-resistant and IK10-rated vandal-resistant dome enclosure ensures reliable video surveillance for a variety of indoor and outdoor applications. - Delivers 8.3MP resolution at 30 fps in full frame and 1080p resolution at 60 fps in binning mode
- Built-in dual mode allows the camera to switch between 4K and 1080p
- SNAPstream technology reduces bandwidth without impacting image quality
- 4.4-10mm P-iris lens with remote focus and zoom
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Non-Integer Scaling
- NightView technology and pixel binning mode for strong low-light performance
- True day/night functionality with mechanical IR cut filter
- IR LEDs with adjustable beam angle and LED intensity offer night vision up to 50'
- microSDHC card slot for onboard storage (up to 32GB)
- Easy three-axis gimbal adjustment
- IP66- and IK10-rated housing for indoor as well as outdoor applications
- PoE and Auxiliary Power: 12 to 24 VAC
In the Box Arecont Vision MegaDome 4K 8.3MP Outdoor Network Dome Camera with Night Vision Input / Output Cable AC & DC Auxiliary Power Cable Software CD Mounting Template Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaDome 4K 8.3MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV08ZMD Specs | Image Sensor | 8.3 MP, 1/1.7" CMOS | | Pixel Pitch | 1.85 μm | | Minimum Illumination | Color (Day Mode): 0.5 lux
Color Binning (Day Mode): 0.25 lux
B/W (Night Mode): 0.02 lux, IR sensitive | | Resolution (H x V) | Full Field of View:
3840 x 2160
1/4 Resolution:
1920 x 1080
Scaled Resolutions:
720p (1280 x 720)
XVGA (1024 x 768)
DVGA, 16:9 (1136 x 640)
DVGA, 3:2 (960 x 640)
SVGA (800 x 600)
D1, PAL (720 x 576)
4CIF, PAL (704 x 576)
D1, NTSC (720 x 480)
4CIF, NTSC (704 x 480)
VGA (640 x 480)
2CIF, PAL (704 x 288)
HVGA, 4:3 (480 x 360)
2CIF, NTSC (704 x 240)
HVGA, 8:3 (640 x 240)
HVGA, 3:2 (480 x 320)
HVGA, 16:9 (480 x 272)
CIF, PAL (352 x 288)
CIF, NTSC (352 x 240)
QVGA, SIF (320 x 240)
QCIF, PAL (176 x 144)
QCIF, NTSC (176 x 120)
SQCIF (128 x 96) | | Dynamic Range | 70.7 dB | | Signal to Noise Ratio | Maximum: 40.1 dB | | Frame Rates | At Max Resolution: 30 fps (3840 x 2160)
Binning Mode: 60 fps (1920 x 1080) | | | | Focal Length | 4.4-10mm | | Aperture | f/1.2 | | Horizontal Field-of-View | 43 to 96° | | Maximum Distance | Distance to Pixel Density:
Tele:
30 ppf (100 ppm): 170' / 51.8 m
60 ppf (197 ppm): 86' / 26.2 m
90 ppf (295 ppm): 56.5' / 17.2 m
Wide:
30 ppf (98 ppm): 61' / 18.6 m
60 ppf (197 ppm): 28.5' / 8.7 m
90 ppf (295 ppm): 16.5' / 5 m | | | | Optics | Remote focus, remote zoom, and P-iris | | Low Light Capability | NightView technology
Pixel binning mode | | Picture-in-Picture | Simultaneous delivery of full field of view and zoomed images | | Shutter Speed | Programmable; controls motion blur from 1 to 500 ms | | Motion Detection | Real-time, 1024 detection zones | | Privacy Masking | Unlimited | | Cropping | Flexible: Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264 | | Backlight Compensation | Auto multi-matrix white balance | | Flicker Frequency | 5 to 255 Hz adjustable | | Image Rotation | 180° image flip | | Noise Reduction | Low-light noise filter control | | Efficiency | SNAPstream (Smart Noise Adaptation and Processing)
Bit rate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | Additional Features | Programmable resolution, brightness, saturation, gamma, tint
Electronic pan, tilt, zoom (PTZ) | | Onboard Storage | microSDHC slot up to 32 GB (card not included) | | | | LEDs | 12 x 850 nm with adjustable IR distance and beam angle | | IR Distance | Maximum: 50' / 15 m | | Beam Angle | 60° and 80° | | | | Compression | H.264 MPEG-4, Part 10 ISO/IEC 14496-10 AVC
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP1.0, HTTP1.1, TFTP, DHCP, HTTPS, IPv4, 802.1x | | Network Interface | 100/1000Base-T Ethernet | | Multi-Streaming | 4 non-identical streams | | | | Listings | UL CB Scheme: IEC 60950-1(Ed.2), IEC 60950-1(Ed.2); Am.1, IEC 60950-1(Ed.2); Am.2, IEC 60950-22(Ed.1) | | FCC Compliance | Title 47, Part 15 (47 CFR 15) Subpart B Class A | | Environmental | REACH 1907/2006/EC, WEEE 2012/19/EU | | Marking | CE: 2014/30/EU (EMC Directive), 2014/35/EU (Low Voltage Directive), 2011/65/EU (RoHS Directive) EN 55022:2010 Class A, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3: 2008 EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 | | Network Standard | IEEE 802.3af-2003 PoE Standard, Class 3, IPv4, HTTPS, 802.1x | | Mechanical | IK10 (EN62262), IP66 (EN60529) | | | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Humidity | 0 to 90% (non-condensing) | | Stable Image Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | | | Alarm Input / Output | General purpose opto-coupled, 1 x Input / 1 x Output | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Input | 12 to 24 VDC | | Power Consumption | 12.4 W
14.1 W (IR on) | | | | Casing | Die-cast aluminum chassis with 4" / 10.2 cm polycarbonate dome bubble | | Gimbal | Adjustable, 3-axis with 360° pan, 77° tilt (with full field of view from mounting surface), and 180° z-axis | | Dimensions (Ø x H) | Ø5.8 x 5" / Ø146.7 x 128 mm | | Weight | 2.3 lb / 1.0 kg | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 6.9 x 6.8 x 5.9" |
