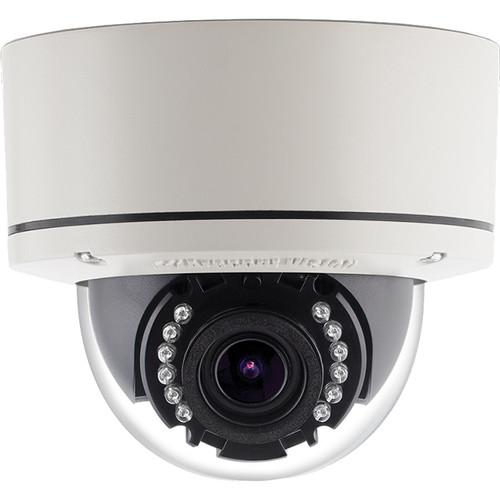

User Manual for Arecont Vision MegaDome G3 AV10355PMIR-SH 10MP Outdoor PTZ Network Dome Camera with Heater Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaDome G3 AV10355PMIR-SH 10MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaDome G3 AV10355PMIR-SH 10MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaDome G3 AV10355PMIR-SH Outdoor PTZ Network Dome Camera from Arecont Vision supports video up to 3648 x 2752 at 7 fps. This camera has a 4-8mm wide angle lens with an aperture of f/1.6 and a 89-47° horizontal field of view. It features 12 IR LEDs that cast infrared light up to 50' and comes with a heater. A SDHC card slot supports storage up to 32GB. This camera features an alarm input and output and is powered via PoE or by using an external power supply (available separately). - SNAPstream reduces bandwidth without impacting image quality
- Remote focus/zoom motorized P-iris control lens
- True day/night functionality with mechanical IR cut filter and IR LEDs
- Binning mode for strong low light performance
- Privacy mask, motion detection, flexible cropping, bit rate control, multi-streaming, multi-casting, and forensic zooming
- Non-integer scaling down to 128 x 96
- IK-10 impact-resistant housing rated IP66 for outdoor use
- Total PoE solution, no external power required for heater and IR LEDs
- Real-time motion detection with 1024 detection zones
- Multi-matrix white balance backlight compensation
- 5-255 Hz adjustable flicker control
- CorridorView 90°, 180°, and 270° image rotation
- Selectable enhancement level sharpness
- Programmable resolution, brightness, saturation, gamma, and tint
- Electronic pan, tilt, and zoom
In the Box Arecont Vision MegaDome G3 AV10355PMIR-SH 10MP Outdoor PTZ Network Dome Camera with Heater Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaDome G3 AV10355PMIR-SH 10MP Outdoor PTZ Network Dome Camera with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV10355 Specs | | | Sensor | 10 MP 1/2.3" CMOS | | Focal Length | 4 to 8mm | | Maximum Aperture | f/1.6 | | Zoom | Optical: 2x
Digital | | Lens Field of View | Horizontal: 89 to 47° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.21 Lux
B&W: 0.04 Lux | | Shutter Speed | 1/1000 to 1/2 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 77° | | | | Streaming Resolution | 3648 x 2752 at 7 fps
2592 x 1944 at 12 fps
2048 x 1536 at 18 fps
1920 x 1080 at 25/29 fps
1824 x 1376 at 26 fps
1296 x 972 at 43 fps
1280 x 1024 at 37 fps
1024 x 768 at 54 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 4 Streams | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | DHCP, HTTP, IPv4/v6, QoS Layer 3 DiffServ, RTP, RTSP, TCP, TFTP, UDP | | | | Application Programming Interface (API) | ONVIF | | Event Trigger | Yes | | Event Action | Alarm | | Data Streaming | Yes | | | | Recording Media | SD (Up to 32 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 12 x 850 nm | | IR Range | 50' / 15.24 m at 60/80° | | Certifications | EN 55022 Class A, EN 55024, FCC (Part 15 Class A), IEC 61000-3-2, IEC 61000-3-3, IEC60950-1, REACH, RoHS, UL, WEEE, as per Manufacturer | | Internal Storage | None | | Power Source | PoE 802.3af (15 W) | | Power Consumption | PoE: 2.28 W | | Material of Construction | Aluminum | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
