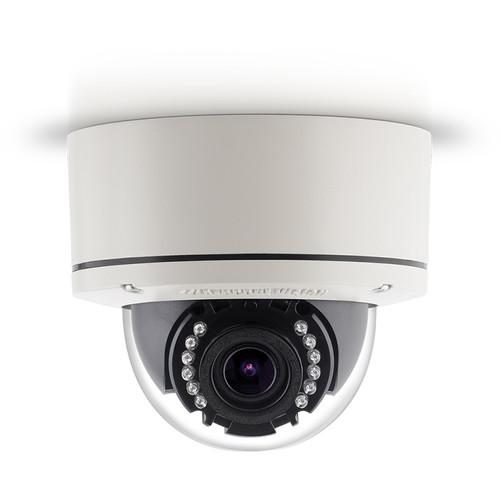

User Manual for Arecont Vision MegaDome G3 AV1355PMIR-S 1.2MP Outdoor Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaDome G3 AV1355PMIR-S 1.2MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaDome G3 AV1355PMIR-S 1.2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description Capture evidence and zoom in for details in live or recorded video with the MegaDome G3 AV1355PMIR-S 1.2MP Outdoor Network Dome Camera from Arecont Vision. Designed for use both indoors and outdoors, this all-in-one solution features a 1.2MP sensor to capture video at a frame rate of 37 fps. SNAPstream (Smart Noise Adaptation and Processing) technology and H.264/MJPEG compression reduce bandwidth use without impacting image quality.
Easy to install and manage, the MegaDome G3 AV1355PMIR-S uses an IR-corrected, motorized, P-iris wide-angle lens with remote focus and remote zoom capabilities. The installer-friendly housing is not only IP66 rated for weather resistance, but also IK10 vandal resistant, making the camera suitable for deployment in high-risk locations. The MegaDome G3 includes Spatio Temporal Low-Light Architecture (STELLAR) for capturing details in near-complete darkness. - Motorized P-Iris lens with remote focus/zoom
- SNAPstream technology reduces bandwidth use without impacting image quality
- P-iris control optimizes depth of field and image clarity
- Spatio Temporal Low-Light Architecture (STELLAR) reduces motion blur, noise, and storage requirements while enhancing contrast and allowing color imaging in near complete darkness
- True day/night functionality with mechanical IR cut filter and IR LEDs
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Privacy mask, motion detection, flexible cropping, bit rate control, multi-streaming, multicasting, and forensic zooming
- SDHC card slot for onboard storage
- Network protocols include HTTPS, 802.1x, and DHCP
- PoE and 12-48 VDC / 24 VAC auxiliary power
- Total PoE solution—no external power required
- IP66 outdoor rated and IK10 vandal-resistant housing
- Easily adjustable 3-axis gimbal
In the Box Arecont Vision MegaDome G3 AV1355PMIR-S 1.2MP Outdoor Network Dome Camera Dome Cover Mounting Plate Mounting Hardware Mounting Template Magnetic Core I/O Cable AC & DC Auxiliary Power Cable Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaDome G3 AV1355PMIR-S 1.2MP Outdoor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV1355 Specs | | | Sensor | 1.2 MP 1/3" CMOS | | Focal Length | 3 to 9mm | | Maximum Aperture | f/1.2 | | Zoom | Optical: 3x
Digital: 20x | | Lens Field of View | Horizontal: 32 to 101° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.02 Lux
B&W: 0.002 Lux | | Shutter Speed | 1/1000 to 1/2 Seconds | | Camera Angle Adjustment | Horizontal: -180 to 180°
Vertical: 0 to 77° | | | | Streaming Resolution | 1280 x 960 at 37 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 8 Streams | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | DHCP, HTTP, IPv4/v6, ONVIF Profile S, RTP, RTSP, UDP | | | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Alarm | | Data Streaming | Yes | | | | Recording Media | SD (Up to 32 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 12 x 850 nm | | IR Range | 50' / 15.24 m at 80° | | Video Management Software | AV200 | | Certifications | EN 55022 Class B, EN 55024, FCC (Part 15 Class A), IEC60950-1, UL, as per Manufacturer | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 11.9 W | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
