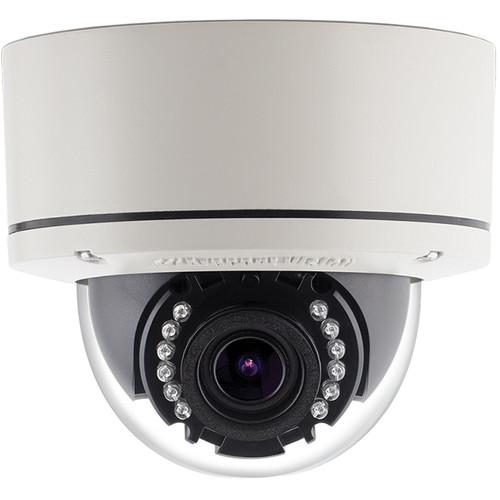

User Manual for Arecont Vision MegaDome G3 AV2356PMIR-S 1080p Outdoor Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaDome G3 AV2356PMIR-S 1080p
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaDome G3 AV2356PMIR-S 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description Capture 1920 x 1080 video at 30 fps and zoom in on details with the MegaDome G3 AV2356PMIR-S 1080p Outdoor Network Dome Camera from Arecont Vision. Designed for use both indoors and outdoors, this all-in-one solution integrates a 2.1MP sensor. SNAPstream (Smart Noise Adaptation and Processing) technology and H.264/MJPEG compression reduce bandwidth use without impacting image quality.
Designed to be easy to install and manage, the MegaDome G3 AV2356PMIR-S uses an IR corrected, motorized P-iris varifocal lens with remote focus and zoom capabilities. An SD card slot supports up to 32GB of local storage. The installer-friendly housing is not only IP66 rated for use outdoors, but also IK10 vandal resistant for deployment in high-risk locations. Included in the package are a software CD, connection cables, and mounting hardware. - Motorized P-iris lens with remote focus/zoom
- P-iris control optimizes depth of field and image clarity
- SNAPstream technology reduces bandwidth use without impacting image quality
- Wide-angle varifocal lens
- Wide dynamic range up to 100 dB
- True day/night functionality with mechanical IR cut filter and IR LEDs
- Casino mode provides a continuous 30 fps frame rate required by gaming industry regulations
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Privacy mask, motion detection, flexible cropping, bit rate control, multi-streaming, multicasting, and forensic zooming
- PoE and 12-48 VDC / 24 VAC auxiliary power
- Total PoE solution—no external power required for IR LEDs
- IP66 outdoor-rated and IK10 vandal-resistant housing
In the Box Arecont Vision MegaDome G3 AV2356PMIR-S 1080p Outdoor Network Dome Camera Dome Cover Mounting Plate Mounting Hardware Mounting Template Magnetic Core I/O Cable AC & DC Auxiliary Power Cable Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaDome G3 AV2356PMIR-S 1080p Outdoor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV2356 Specs | | | Sensor | 2.1 MP 1/2.7" CMOS | | Focal Length | 2.8 to 8mm | | Maximum Aperture | f/1.2 | | Zoom | Optical: 2.9x
Digital: 20x | | Lens Field of View | Horizontal: 86 to 32° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.2 Lux
B&W: 0.02 Lux | | Shutter Speed | 1/1000 to 1/2 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 77° | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 8 Streams | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | DHCP, HTTP, IPv4/v6, ONVIF Profile S, RTP, RTSP, TCP, UDP | | | | Application Programming Interface (API) | ONVIF | | Event Trigger | Yes | | Event Action | Recording | | Data Streaming | Yes | | | | Recording Media | SD (Up to 32 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 12 x 850 nm | | IR Range | 50' / 15.24 m at 60/80° | | Certifications | EN 55024, FCC (Part 15 Class A), UL, as per Manufacturer | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 2.28 W (With Heater) | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
