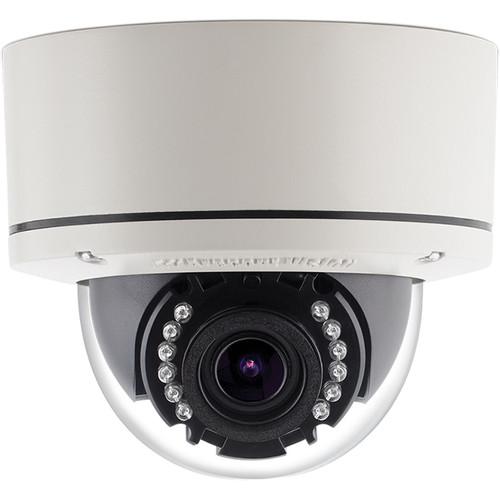

User Manual for Arecont Vision MegaDome G3 AV3356PMTIR-S 3MP Outdoor Vandal-Resistant Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaDome G3 AV3356PMTIR-S 3MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaDome G3 AV3356PMTIR-S 3MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description Keep a sharp eye on your property around the clock with the MegaDome G3 AV3356PMTIR-S 3MP Outdoor Vandal-Resistant Network Dome Camera from Arecont Vision at video resolutions up to 2048 x 1536 at 21 fps. Featuring LED illumination, a P-iris lens, and a WDR up to 100 dB, this camera is equipped to handle a variety of challenging lighting conditions indoors and outdoors. The built-in IR cut filter can be set to automatically switch to night mode as light levels drop, boosting IR sensitivity and allowing the camera to deliver high-quality black-and-white images during nighttime.
The MegaDome G3 AV3356PMTIR-S uses a motorized telephoto varifocal 8-22mm lens to give you remote control over zoom and focus. A built-in SDHC slot allows for up to 32GB of onboard storage so you don't have to worry about losing crucial footage in the event of network loss. Bandwidth and storage efficiency are optimized without compromising video quality using H.264 and MJPEG compression. Designed to be easy to install, the camera can be powered directly via its network connection and is ONVIF-compliant to ensure compatibility with a wide range of surveillance devices. The camera's housing is rated IK10 and IP66 to withstand impact, corrosion, dust, rain, and snow. - Motorized remote zoom and focus
- P-iris lens optimizes depth of field and image clarity
- SNAPstream capability reduces bandwidth use without compromising image quality
- True WDR up to 100 dB at full resolution for clarity in scenes combining intensely lit and shaded areas
- True day/night functionality with mechanical IR cut filter and IR LEDs
- Binning mode for strong low-light performance
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Privacy masking, motion detection, flexible cropping, bit rate control, multi-streaming, multicasting, and forensic zooming
- Supports PoE and auxiliary power of 12 to 48 VDC / 24 VAC
- Easily adjustable 3-axis gimbal
In the Box Arecont Vision MegaDome G3 AV3356PMTIR-S 3MP Outdoor Vandal-Resistant Network Dome Camera with Night Vision Dome Cover Mounting Hardware Security L-Key L-Key Mounting Template Magnetic Core I/O Cable AC & DC Auxiliary Power Cable Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaDome G3 AV3356PMTIR-S 3MP Outdoor Vandal-Resistant Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3356 Specs | | | Sensor | 3 MP 1/3.2" CMOS | | Focal Length | 8 to 22mm | | Maximum Aperture | f/1.6 | | Zoom | Optical: 2.8x
Digital: 20x | | Lens Field of View | Horizontal: 32 to 12° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.2 Lux
B&W: 0.02 Lux | | Shutter Speed | 1/1000 to 1/2 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 77° | | | | Streaming Resolution | 2048 x 1536 at 21 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 8 Streams | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | DHCP, HTTP, ONVIF Profile S, RTP, RTSP, TCP, TFTP, UDP | | | | Application Programming Interface (API) | ONVIF | | Event Trigger | Yes | | Event Action | Alarm | | Data Streaming | Yes | | | | Recording Media | SD (Up to 32 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x Power
1 x RJ45 | | IR Illuminators | 12 x 850 nm | | IR Range | 120' / 36.58 m at 40° | | Certifications | EN 55022 Class A, EN 55024, FCC (Part 15 Class A), IEC 61000-3-2, IEC 61000-3-3, IEC60950-1, REACH, RoHS, UL, WEEE, as per Manufacturer | | Internal Storage | None | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | 14.2 W | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
