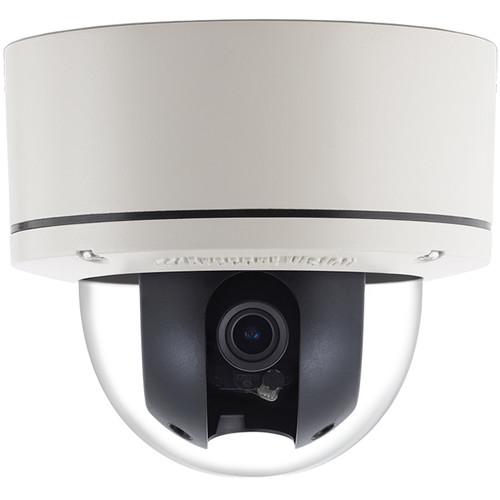

User Manual for Arecont Vision MegaDome G3 RS AV3355RS 3MP Outdoor PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaDome G3 RS AV3355RS
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaDome G3 RS AV3355RS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaDome G3 RS AV3355RS 3MP Outdoor PTZ Network Dome Camera from Arecont Vision supports video at resolutions up to 2048 x 1536 at 21 fps. It has an IR corrected 2.8-6mm motorized varifocal lens with remote pan, tilt, and zoom. This camera features a 3MP 1/3" CMOS sensor, a 69.5 dB dynamic range, and a maximum SNR of 49 dB. An SDHC card slot supports up to 32GB of onboard storage (available separately).
The MegaDome G3 RS can be powered via PoE or a 12 to 48 VDC or 24 VAC power supply. It is ONVIF (Open Network Video Interface Forum) series S compliant, providing interoperability between network video products regardless of the manufacturer. - Remote focus/zoom capable
- SNAPstream capability to reduce bandwidth without impacting image quality
- True day/night functionality with mechanical IR cut filter
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Binning mode for strong low light performance
- Privacy mask, motion detection, flexible cropping, bit rate control, multi-streaming, multi-casting, forensic zooming, and non-integer scaling
- Total PoE solution (no external power required for heater)
- Outdoor rated IP66 and IK10 impact-resistant housing
- Integrated with VMS/NVR platforms
- Using the camera interface or the AV IP Utility, security updates and both new or enhanced features can be applied to the cyber-hardened MegaDome G3 RS's Massively Parallel Image Processing (MPIP) architecture
- Field Programmable Gate Array (FPGA) integrated circuit
In the Box Arecont Vision MegaDome G3 RS AV3355RS 3MP Outdoor PTZ Network Dome Camera with Night Vision Mounting Hardware Insertion Tool Auxiliary Power Cable Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaDome G3 RS AV3355RS 3MP Outdoor PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3355 Specs | | | Sensor | 3 MP 1/3" CMOS | | Focal Length | 2.8 to 6mm | | Maximum Aperture | f/2 | | Zoom | Optical: 2.1x
Digital | | Lens Field of View | Horizontal: 94 to 45° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.1 Lux
B&W: 0.02 Lux | | Shutter Speed | 1/1000 to 1/2 Seconds | | | | Streaming Resolution | 2048 x 1536 at 21 fps
1920 x 1080 at 30 fps
1280 x 1024 at 30 fps
1024 x 768 at 46 fps
960 x 540 at 64 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 8 Streams | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | DHCP, HTTP, IPv4/v6, ONVIF Profile S, RTP, RTSP, TCP, TFTP, UDP | | | | Application Programming Interface (API) | ONVIF | | Event Trigger | Yes | | Event Action | Recording, Alarm | | Data Streaming | Yes | | | | Recording Media | SD (Up to 32 GB) | | Pan/Tilt | Manual Pan: 359°
Manual Tilt: 90° | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x Power
1 x RJ45 | | IR Illuminators | None | | Certifications | EN 55022 Class A, EN 55024, FCC (Part 15 Class A), IEC 61000-3-2, IEC 61000-3-3, IEC60950-1, REACH, RoHS, UL, WEEE, as per Manufacturer | | Internal Storage | None | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | 10.1 W
2.28 W (With Heater) | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
