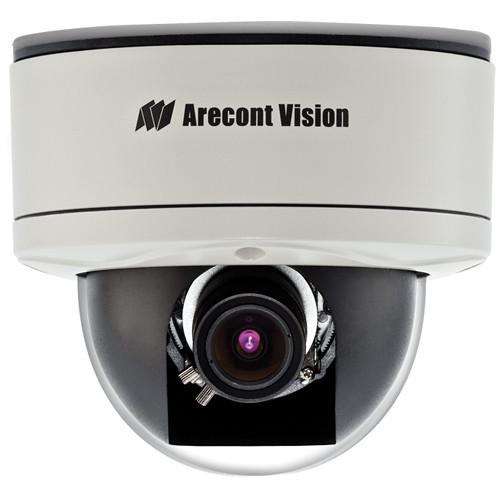

User Manual for Arecont Vision MegaDome2 AV1255DN-H 1.3 Mp IP Day Night PoE Camera with 3.4 to 10.5mm Varifocal Lens & Heater Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaDome2 AV1255DN-H 1.3 Mp
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaDome2 AV1255DN-H 1.3 Mp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision MegaDome2 AV1255DN-H 1.3 Mp IP Day/Night Camera with 3.4 to 10.5mm Varifocal Lens & Heater features H.264 (MPEG 4, Part 10) compression and provides full 1280 x 1024 megapixel resolution at a full video frame rate of 42 fps. This all-in-one monitoring solution comes with an integrated 1.3 Mp camera and an IP66 and vandal-resistant dome enclosure. This high-sensitivity, PoE (IEEE 802.3af) compliant camera features PSIA compliance, privacy masking, extended motion detection, and flexible cropping. Built with massively-parallel MegaVideo technology, this camera offers over four times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver high-quality megapixel imaging for both indoor and outdoor applications.
It features a built-in heater that is triggered by an internal thermostat when the ambient temperature drops to 32.9°F. The heater allows the camera to be used in low temperatures for uninterrupted surveillance.
The camera delivers superior resolution to capture every detail whether viewing live or recorded/ archived video. With the ability to digitally Pan-Tilt-Zoom (PTZ) images, you can view the details you need to see at any time, such as license plates, faces and other objects of interest. The superior resolution of MegaDome 2 megapixel camera along with its varying field of view allows it to do the work of multiple conventional cameras and provide critical forensic information all without the need and associated expense of system operators having to catch activities of interest as they occur.
H.264 compliant compression allows full frame rates and full resolution without sacrificing image quality and offers H.264 and MJPEG dual compression support with simultaneous streaming. With bit rate control, the CPU load is decreased at both the client (decompression) side and the server/storage side, allowing lower bandwidth and storage relative to MJPEG. Real-Time Streaming Protocol (RTSP) allows for compatibility with media players such as Apple QuickTime, VLC, and others. - Imaging
-
- 1.3 Mp effective CMOS image sensor
- Progressive scan
- 1/2.7" optical format
- 3μm pixel pitch
- Dynamic range 69 dB
- Maximum SNR 45 dB
- Programmability
-
- Casino Mode, flexible cropping and low light noise filter control
- Shutter Speed: 1 to 500ms
- Backlight compensation
- Auto multi-matrix white balance
- On-camera motion detection and privacy mask w/ 1024 detection zones
- 50/60Hz selectable flicker control
- Electronic pan, tilt, zoom (PTZ) and image flip180° rotation
- MoonLight mode extended exposure & proprietary noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Bit rate and bandwidth limitation control
- FCC, CE Mark, UL listed
- Multi-streaming 8 non-identical streams
- Motion detection 1024 zones
- Other Features
-
- Easily adjustable 3-axis gimbal
- Privacy mask
- Motion detection
- Flexible cropping
- Forensic zooming
- Fine tuning for a better image after installation
- Ability to choose wide or telephoto field of view depending on application requirements
In the Box Arecont Vision MegaDome2 AV1255DN-H 1.3 Mp IP Day/Night PoE Camera with 3.4 to 10.5mm Varifocal Lens & Heater MD-2HK MegaDome 2 Optional Heater Kit Mounting Template CD with AV100 Software (License Key Required for Recording) AC & DC Power Cable Input / Output Cable 4 x Wood Screw 4 x Dry Wall Anchors Security L-Key Double-Sided Hex Key Single-Sided Hex Key Magnetic Core Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaDome2 AV1255DN-H 1.3 Mp IP Day Night PoE Camera with 3.4 to 10.5mm Varifocal Lens & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV1255 Specs | | | Image Sensor | 1.3 Mp, 1/2.7" CMOS | | Maximum Resolution | 1280 (H) x 1024 (V) 1/4 Resolution: 640 (H) x 512 (V) | | Minimum Illumination | Day/Night: 0 lux, IR sensitive | | Maximum Frame Rate | 42 fps @ 1280 x 1024 | | Dynamic Range | 69 dB | | Compression | H.264 (MPEG4, part 10)
Motion JPEG
21 levels of quality | | Protocols | TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP, DHCP | | Shutter Speed | 1 to 500 ms | | Input/Output | 1/1 | | Network Interface | 100Base-T Ethernet network interface | | Electrical | General purpose opto-coupled input and output PoE 802.3af for camera, IR LED | | Power | PoE: PoE 802.3af
DC Input: Auxiliary 12 to 48 VDC
AC Input: Auxiliary 24 VAC
6.1 W maximum | | Power Consumption | 10.7 W | | Heater | Power Consumption: 2.28 W maximum
Switch: On 32.9°F (4°C), Off: 43.7°F (6.5°C) | | Certifications | Day/Night Models: Class B FCC, Part 15; EN55022 Class B
IR Models: Class A FCC, Part 15; EN55022 Class A EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RoHS, REACH, IP66 (EN60529) | | | | IR Distance | 49.2' (15.0 m) | | IR Illuminator | Illuminator: 24, 850 nm LEDs
No external power required
IR Angle: 40°
MTBF: 82,442 hours | | | | Operating Temperature | -4 to 122°F (20 to 50°C) without Heater | | Humidity | 0 to 90% (non-condensing) | | | | Lens Type | 3.4 to 10.5 mm varifocal lens | | Aperture | F1.6 (maximum) | | Field of View | Horizontal: 93 to 36° | | | | Casing | Die-cast aluminum chassis with 4" polycarbonate dome bubble, IP66 weatherproof standard, vandal-resistant, IK10 rated | | Dimensions (Ø x H) | 5.5 x 4.9" (139.7 x 124.4 mm)
Bubble only: 4.0 x 2.4" (101.6 x 60.9 mm) | | Weight | 2.25 lb (1.02 kg) |
