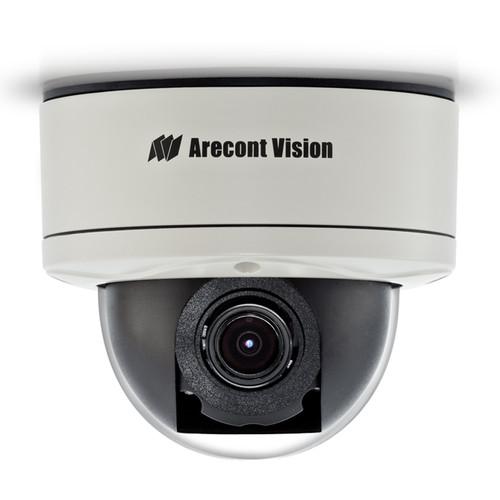

User Manual for Arecont Vision MegaDome2 AV1255PM-S 1.2MP H.264 All-in-One Motorized P-Iris Lens True Day Night Indoor Outdoor Dome IP Camera with STELLAR Technology Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaDome2 AV1255PM-S 1.2MP H.264
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaDome2 AV1255PM-S 1.2MP H.264 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaDome2 AV1255PM-S 1.2MP H.264 All-in-One Motorized P-Iris Lens Day/Night Indoor/Outdoor Dome IP Camera with STELLAR Technology from Arecont Vision delivers 1280 x 960 resolution at a 37 fps frame rate to capture every detail whether viewing live or recorded/archived video. It comes with a 3 to 9mm wide angle motorized P-Iris lens that offers depth-of-field and image clarity. This true day/night camera comes with a removable IR-cut filter that allows the camera to select between color and B&W modes depending on the lighting conditions.The 1.2MP MegaDome 2 camera comes with STELLAR (Spatio Temporal Low Light Architecture) technology, which allows for color imaging in near complete darkness. STELLAR technology utilizes an algorithm that reduces noise, motion blur, bit rate, and storage requirements. Along with adaptive contrast enhancement, this camera has superior low light sensitivity, making it capable of covering areas where very little light is present.For easy installation, the camera can be installed without locally adjusting the field of view or focus, thanks to the remote focus and zoom feature. Focus and zoom function can be controlled remotely through the camera webpage. The added P-Iris functionality provides automatic, precise iris control. Short or full range focus scan functions analyze the local or full scene to determine the optimum focus for the chosen field of view.With CorridorView, the MegaDome 2 camera can rotate or flip pixels in 90° increments, which makes it suitable for installation in narrow hallways where pixels are often wasted capturing the surrounding walls. It is a total PoE solution eliminating additional power wiring for the camera. The camera is packed into an IP66 environmental-rated and IK-10 impact-resistant dome housing, making it suitable for a variety of indoor and outdoor applications. - Motorized P-Iris lens with remote focus/zoom function
- P-Iris control to get best depth-of-field and image clarity
- Frame rate of 37 fps at 1280 x 960 resolution
- STELLAR low-light technology reduces motion blur, noise and storage requirements, while enhancing contrast and allowing color imaging in near complete darkness
- True day/night functionality with mechanical IR-cut filter
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Privacy masking, motion detection, flexible cropping, bit rate control, multi-streaming, and forensic zooming
- SDHC card slot for onboard storage
- Total PoE solution (no external power required for IR LEDs)
- Outdoor-rated IP66 and IK10 impact-resistant housing
- PoE and auxiliary power (12 to 48 VDC/24 VAC)
- Easily adjustable 3-axis gimbal
In the Box Arecont Vision MegaDome2 AV1255PM-S 1.2MP H.264 All-in-One Motorized P-Iris Lens True Day/Night Indoor/Outdoor Dome IP Camera with STELLAR Technology (3-9mm Wide Angle Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaDome2 AV1255PM-S 1.2MP H.264 All-in-One Motorized P-Iris Lens True Day Night Indoor Outdoor Dome IP Camera with STELLAR Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV1255 Specs | | | Image Sensor | 1.2 MP (CMOS) | | Optical Format | 1/3" | | Pixel Pitch | 3.75 μm | | Minimum Illumination | Color (Day Mode): 0.02 lux
B&W (Night Mode): 0.002 lux (IR off), 0 lux (IR sensitive) | | Resolution | Full FOV (H x V): 1280 x 960
1/4 Resolution (H x V): 640 x 480 | | Dynamic Range | 83.5 dB | | Signal to Noise Ratio | 54 dB maximum | | Frame Rates | At Maximum Resolution: 37 fps (1280 x 960) | | Lens | Wide Angle Motorized Lens: 3 to 9 mm, f/1.2, RZ, RF, P-Iris
H-FOV = 92° to 31° | | | | Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG, 21 levels of quality | | Transmission Protocol | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP
100Base-T Ethernet Network Interface | | Multi-Streaming | 8 non-identical streams | | Programmability | Remote focus, remote zoom, and P-Iris
Motion detection and privacy masking with up to 1024 detection zones
Non-integer scaling down to 128 x 96
Programmable shutter speed to help control motion blur
Flexible Cropping (resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264)
Low-light noise filter control
Bit rate and bandwidth limitation control
Backlight compensation and multi-matrix white balance
50/60 Hz selectable flicker control
Electronic PTZ (Pan, Tilt, Zoom)
180° image flip or CorridorView (90°, 180°, and 270° image rotation)
Programmable resolution, brightness, saturation, gamma, sharpness, tint | | Onboard Storage | SDHC slot; up to 32 GB cards supported (card not included) | | | | Alarm I/O | General-purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Input | 12 to 48 VDC, 24 VAC | | Maximum Power Consumption | DC: 10.9 W | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Humidity | 0 to 90% (non-condensing) | | | | Compliance | Industry Standard: ONVIF Profile S and PSIA Conformant
UL (CB) listed
FCC Compliance: 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
(CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 | | Impact Resistance | IK10 (EN62262) | | IP Rating | IP66 (EN60529) | | Casing | Die-cast aluminum chassis with 4.0" (10.2 cm) polycarbonate dome bubble | | Gimbal | Easily adjustable 3-axis camera gimbal with 360° pan, 90° tilt and 360° z-axis | | Dimensions (Ø x H) | 5.5 x 4.9" (14.0 x 12.50 cm) | | Weight | 2.25 lb (1.02 kg) |
