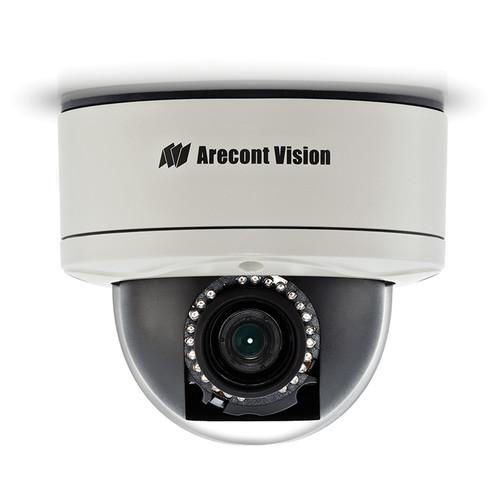

User Manual for Arecont Vision MegaDome2 AV2255PMIR-SAH 1080p H.264 All-in-One Motorized P-Iris Lens Day Night IR Indoor Outdoor Dome IP Camera with 2-Way Audio Support Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaDome2 AV2255PMIR-SAH 1080p H.264
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaDome2 AV2255PMIR-SAH 1080p H.264 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaDome2 AV2255PMIR-SAH 1080p H.264 All-in-One Motorized P-Iris Lens Day/Night IR Indoor/Outdoor Dome IP Camera with 2-Way Audio Support from Arecont Vision delivers 1920 x 1080 resolution at 30 fps frame rate to capture every detail whether viewing live or recorded/archived video. It comes with a 2.8 to 8mm wide angle motorized P-Iris lens that offers depth of field and image clarity. This true day/night camera comes with a removable IR-cut filter that allows the camera to select between color and B&W modes depending on the lighting conditions. It also features 24 IR LEDs that are effective up to 50' (15m), allowing the camera to adapt to constantly changing lighting conditions and capture high-quality images. For easy installation, the camera can be installed without locally adjusting the field of view or focus, thanks to the remote focus and zoom feature. Focus and zoom function can be controlled remotely through the camera webpage. The added P-iris functionality provides an automatic, precise iris control. Short or full range focus scan functions analyze the local or full scene to determine the optimum focus for the chosen field of view. With the ability to digitally Pan-Tilt-Zoom (PTZ) images, you can view the details you need to see at any time, such as license plates, faces, and other objects of interest. With CorridorView, the MegaDome 2 camera can rotate or flip pixels in 90° increments, which makes it suitable for installation in narrow hallways where pixels are often wasted capturing the surrounding walls. It is a total PoE solution eliminating additional power wiring for the camera, integrated heater, and IR LED ring. The camera's Casino Mode ensures continuous 30 fps frame rate required by gaming industry regulations. The camera is packed into an IP66 environmental rated and IK-10 impact-resistant dome housing, making it suitable for a variety of indoor and outdoor applications. - Motorized P-iris lens with remote focus/zoom function
- 2.8 to 8mm wide angle lens
- P-iris control to get best depth of field and image clarity
- Frame rate of 30 fps at resolution 1920 x 1080
- True day/night functionality with mechanical IR-cut filter and 24 IR LEDs
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Casino Mode ensures continuous 30 fps frame rate required by gaming industry regulations
- Privacy masking, motion detection, flexible cropping, bit rate control, multi-streaming, forensic zooming, and non-integer scaling
- Supports two-way audio communication
- SDHC card slot for onboard storage
- Total PoE solution (no external power required for heater and IR LEDs)
- Outdoor-rated IP66 and IK10 impact-resistant housing
- PoE and auxiliary power (12 to 48 VDC/24 VAC)
- Easily adjustable 3-axis gimbal
- User-friendly Web interface
In the Box Arecont Vision MegaDome2 AV2255PMIR-SAH 1080p H.264 All-in-One Motorized P-Iris Lens Day/Night IR Indoor/Outdoor Dome IP Camera with 2-Way Audio Support (2.8-8mm Wide Angle Lens) Mounting Template CD with AV100 Software AC & DC Power Cable I/O Cable 4 x Screw 4 x Anchor Security L-Key Double-Sided Hex Key Single-Sided Hex Key Magnetic Core Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaDome2 AV2255PMIR-SAH 1080p H.264 All-in-One Motorized P-Iris Lens Day Night IR Indoor Outdoor Dome IP Camera with 2-Way Audio Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV2255 Specs | | | Image Sensor | 1080p (CMOS) | | Optical Format | 1/2.7" | | Pixel Pitch | 3 μm | | Minimum Illumination | Color (Day Mode): 0.1 lux
B&W (Night Mode): 0 lux (IR sensitive) | | Resolution | Full FOV (H x V): 1920 x 1080
1/4 Resolution (H x V): 960 x 540 | | Dynamic Range | 69 dB | | Signal to Noise Ratio | 45 dB maximum | | Frame Rates | At Maximum Resolution: 30 fps (1920 x 1080)
Cropped: 42 fps (1280 x 1024) | | Lens | Wide Angle Motorized Lens: 2.8 to 8 mm, f/1.2, RZ, RF, P-iris
H-FOV = 120° to 44° | | IR LED | 24 (850 nm)
Maximum Distance: 50' (15 m)
IR Angle: 40° Total PoE solution (no external power requirement). | | | | Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG, 21 levels of quality | | Transmission Protocol | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP
100Base-T Ethernet Network Interface | | Multi-Streaming | 8 non-identical streams | | Programmability | Remote focus, remote zoom, and P-iris
Motion detection and privacy masking with up to 1024 detection zones
Non-integer scaling down to 128 x 96
Programmable shutter speed to help control motion blur
Casino Mode maintains 30 fps
Flexible Cropping (resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264)
Low light noise filter control
Bit rate and bandwidth limitation control
Backlight compensation and multi-matrix white balance
50/60 Hz selectable flicker control
Electronic PTZ (Pan, Tilt, Zoom)
180° image flip or CorridorView (90°, 180°, and 270° image rotation)
Programmable resolution, brightness, saturation, gamma, sharpness, tint | | Onboard Storage | SDHC slot; up to 32 GB cards supported (card not included) | | | | Alarm I/O | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 2 | | Auxiliary Power Input | 12 to 48 VDC, 24 VAC | | Maximum Power Consumption | DC: 12.1 W | | Audio | Streaming: Two-way
Compression: G.711 PCM 8 kHz
Input/Output: Microphone in or line in / line output | | Heater | Power Consumption: 2.28 W (maximum)
Switch On: 32.9°F (4°C), Off: 43.7°F (6.5°C) Total PoE solution (no external power requirement). | | | | Operating Temperature | -40 to 122°F (-40 to 50°C) with heater | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Humidity | 0 to 90% (non-condensing) | | | | Compliance | Industry Standard: ONVIF Profile S and PSIA Conformant
UL (CB) listed
FCC Compliance: 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
(CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 | | Impact Resistance | IK10 (EN62262) | | IP Rating | IP66 (EN60529) | | Casing | Die-cast aluminum chassis with 4.0" (10.2 cm) polycarbonate dome bubble | | Gimbal | Easily adjustable 3-axis camera gimbal with 360° pan, 90° tilt and 360° z-axis | | Dimensions (Ø x H) | Without Bubble: 5.5 x 2.48" (13.97 x 6.30 cm)
With Bubble: 5.5 x 4.92" (13.97 x 12.50 cm) | | Weight | 2.25 lb (1.02 kg) |
