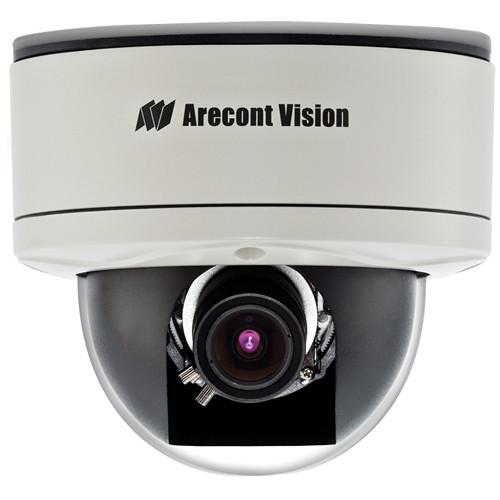

User Manual for Arecont Vision MegaDome2 Series 2MP Outdoor Dome Camera with Heater Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaDome2 Series 2MP Outdoor
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaDome2 Series 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaDome2 Series 2MP Outdoor Dome Camera from Arecont Vision features 1920 x 1080 resolution at 30 fps for high-quality video in real time. Furthermore, a casino mode will maintain 30 fps frame rates so that you do not miss any details. The camera uses a 3.4-10.5mm varifocal lens with an f/1.6 aperture for a 93° to 36° field of view. A mechanical IR cut filter provides true day/night functionality, automatically switching between color and B&W images for maximum clarity. The camera is housed in a single IP66-rated weatherproof and IK10-rated impact-resistant dome cover, and it comes with a built-in heater for use in cold climates. ONVIF Profile S compliance provides compatibility with a wide variety of surveillance items for connecting the camera to an NVR or NAS.
The camera features backlight compensation and auto multi-matrix white balance for capturing high-quality images in ambient lighting. Additionally, programmable resolution, brightness, saturation, gamma, sharpness, and tint enable you to configure your camera based on various environments. A programmable shutter speed assists in controlling motion blur, and a flexible cropping setting allows you to crop the picture down to 1x1 pixel using JPEG formatting and down to 2x2 pixels using H.264 formatting. There are up to 1024 detection zones per sensor for real-time motion detection, and privacy masking offers customization of your viewing field. The camera can be powered using PoE technology for a minimum of wires during setup, or it can be powered with a traditional auxiliary power cord. - 1080p resolution at 30 fps for high-quality video in real-time
- Non-integer scaling down to 128 x 96 resolution
- Easily adjustable 3-axis gimbal with 360° panning, 90° tilting, and a 360° z-axis
- Mechanical IR cut filter provides true day/night imaging for use in low-light situations
- Forensic Zooming offers live zooming or zooming in after an event while recording full field-of-view in HD
- Dual encoder supports H.264 and MJPEG formatting with multi-streaming
- On-camera real-time motion detection with up to 1,024 detection zones (per sensor)
- Privacy masking and flexible cropping features as well as bit rate and bandwidth limit control
- Casino mode maintains a constant 30 fps, required by gaming industry regulations
- Backlight compensation and multi-matrix white balance
- 50 / 60 Hz selectable flicker control
- Offers electronic PTZ (Pan, Tilt, Zoom)
- Programmable shutter speed to help control motion blur
- Programmable resolution, brightness, saturation, gamma, sharpness, and tint
- Saves bandwidth and storage by running at 1/4 resolution
- Supports PoE and 12 to 48 VDC / 24 VAC auxiliary power
- Built-in heater and blower for maximum performance in cold and hot temperatures
- IP66 outdoor-rated and IK10 impact-resistant housing
- Various mounting options for use in a a wide range of settings
In the Box Arecont Vision MegaDome2 Series 2MP Outdoor Dome Camera with Heater MD-2HK MegaDome 2 Optional Heater Kit buzwwuafasveaxavbetxstct Mounting Template CD with AV100 Software (License Key Required for Recording) AC & DC Power Cable Input / Output Cable 4 x Wood Screw 4 x Dry Wall Anchors Security L-Key Double-Sided Hex Key Single-Sided Hex Key Magnetic Core Limited 3-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaDome2 Series 2MP Outdoor Dome Camera with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV2255 Specs | | | Image Sensor | 1/2.7" CMOS | | Day/Night | True Day/Night with automatic removable IR cut filter | | Pixel Pitch | 3 μm | | Minimum Illumination | Color (Day Mode): 0.1 lux
B/W (Night Mode): 0 lux, IR sensitive | | Resolution | Full Field of View: 1920 (H) x 1080 (V)
1/4 Resolution: 960 (H) x 540 (V) | | Dynamic Range | 69 dB | | Signal to Noise Ratio | 45 dB | | Frame Rates | At Max Resolution: 30 fps (1920 x 1080)
Cropped: 42 fps (1280 x 1024) | | Lens | 3.4-10.5mm | | Aperture | f/1.6 | | Field of View | Horizontal: 93° to 24° | | | | Compression | H.264 (MPEG-4, part 10) / MJPEG
21 levels of quality | | Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Motion Detection | Up to 1024 detection zones (per sensor) | | Privacy Masking | Yes | | Cropping | Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264 | | Shutter Speed | Programmable | | Backlight Compensation | Yes | | White Balance | Multi-matrix | | Casino Mode | Maintains 30 fps | | Control | 50/60 Hz selectable flicker control
Bit rate and bandwidth limitation control
Low light noise filter control | | PTZ | Electronic | | | | Industry Standards | ONVIF Profile S and PSIA conformant | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Marking | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 | | Environmental | IP66-rated weather proof standard
IK10-rated vandal resistant | | | | Operating Temperature | -40 to 122°F (-40 to 50°C) with heater | | Humidity | 0 to 90% (non-condensing) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | | | Alarm Input / Output | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Required | 12 to 48 VDC, 24 VAC | | Power Consumption | 10.2 W (max) | | Switch | Heater:
On: 39°F / 4°C
Off: 44°F / 7°C | | | | Casing | Die-cast aluminum chassis with 4.0" / 10.2 cm polycarbonate dome bubble | | Gimbal | 3-axis camera gimbal with 360° pan, 90° tilt, and 360° z-axis | | Dimensions (Ø x H) | Camera: 5.5 x 4.9" (139.7 x 124.4 mm)
Bubble Only: 4.0 x 2.4" (101.6 x 60.9 mm) | | Weight | 2.25 lb (1.02 kg) | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 8.3 x 7.8 x 6.0" |
