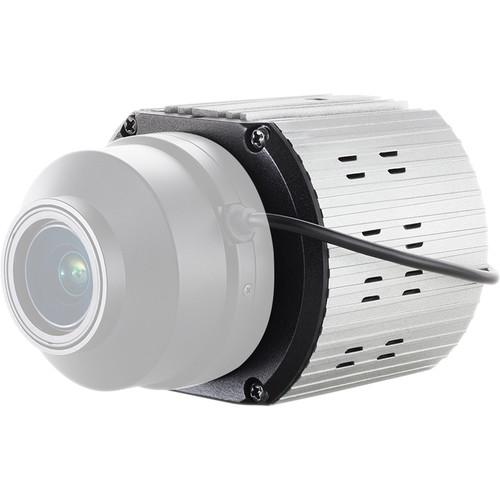

User Manual for Arecont Vision MegaVideo 8.3MP H.264 Network Box Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaVideo 8.3MP H.264 Network
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaVideo 8.3MP H.264 Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaVideo 8.3MP H.264 Network Box Camera from Arecont Vision provides full 3840 x 2160 megapixel resolution at full video frame rates of 30 fps at 8MP and 60 fps while in 1080p binning mode. It features a day/night mechanical IR cut filter and accepts P-iris lenses (sold separately). In addition, the camera comes with NightView technology for improved low-light performance.
The camera comes with a host of features such as SNAPstream (Smart Noise Adaptation and Processing) to reduce bandwidth use without impacting image quality, scaling, binning mode, privacy masking, extended motion detection, flexible cropping, and PoE. Built-in SDHC card slot accepts cards up to 32GB. The camera can be powered via a PoE-compliant network cable connection or from a 12 to 24 VDC / 24 VAC power supply. - 4K UHD/1080p dual mode with 1080p at 60 fps
- SNAPstream capability to reduce bandwidth without impacting the image quality
- Compatible with P-iris lenses (sold separately)
- WDR: See clearly in shaded and bright light conditions simultaneously
- NightView and Binning mode for improved low-light performance
- True day/night functionality with mechanical IR cut filter
- Privacy masking, motion detection, flexible cropping, bit rate control, multi-streaming, multicasting, forensic zooming, and non-integer scaling
- Network protocols include SNMP, HTTPS, 802.1x, IPv4, DHCP, and more
- SDHC card slot for onboard storage (SD card sold separately)
In the Box Arecont Vision MegaVideo 8.3MP H.264 Network Box Camera (No Lens) Software CD C to CS Lens Adapter 0.5mm Lens Spacer Ring 7-Position External Power and IO Plug 0.05" Hex L-Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaVideo 8.3MP H.264 Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV08ZMV Specs | | | Image Sensor | 1/1.7" 8.3 MP CMOS | | Pixel Pitch | 1.85 μm | | Minimum Illumination | Color (Day Mode): 0.03 lux
Color Binning (Day Mode): 0.015 lux
B&W (Night Mode): 0.003 lux, IR sensitive | | Resolution | Full FOV: 3840 x 2160
1/4: 1920 x 1080 | | Scaling | Non-integer scaling down to 128x96 | | Dynamic Range | 70.7 dB (WDR) | | SNR | 40.1 dB | | Frame Rates | Maximum Resolution: 30 fps (3840 x 2160)
Binning Mode: 60 fps (1920 x 1080) | | | | Optics | Remote focus, remote zoom, and P-iris control (when remote focus/zoom lens is used) | | Low Light Capability | NightView
Pixel Binning mode | | Picture-in-Picture | Simultaneous delivery of full field-of-view and zoomed images | | Shutter Speed | Controls motion blur, 1 to 500 ms | | Motion Detection | Real-time, 1024 detection zones | | Privacy Masking | Unlimited | | Casino Mode | Maintains 30 fps or higher | | Cropping | Flexible Cropping: Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 | | Backlight Compensation | Multi-matrix white balance | | Flicker Filter Control | 5 Hz to 255 Hz adjustable | | Image Rotation | 180° image flip | | Noise Reduction | Low-light noise filter control | | Efficiency | SNAPstream (Smart Noise Adaptation and Processing)
Bit rate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint electronic pan, tilt, zoom (PTZ) | | | | Compression Type | H.264 MPEG-4, Part 10 ISO/IEC 14496-10 AVC
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP1.0, HTTP1.1, TFTP, DHCP, SNMP, HTTPS, IPv4, 802.1x | | Network Interface | 100/1000Base-T Ethernet | | Multi-Streaming | 4 non-identical streams | | | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Marking | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 | | | | Operating Temperature | 23 to 113°F (-5 to 45°C)
Auxiliary Power: 23 to 104°F (-5 to 40°C) | | Humidity | 0 to 90% non-condensing | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | | | Alarm I/O | 1/1 | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Input | 12 to 24 VDC/24 VAC | | Power Consumption | 10.7 W maximum (auxiliary DC power) | | | | Casing | Die-cast aluminum chassis
C/CS lens mount | | Storage | SDHC card slot up to 32 GB (card sold separately) | | Dimensions (W x D x H) | 3 x 2.4 x 2.6" (76 x 61 x 65 mm) | | Weight | 0.62 lb (0.28 kg) without lens |
