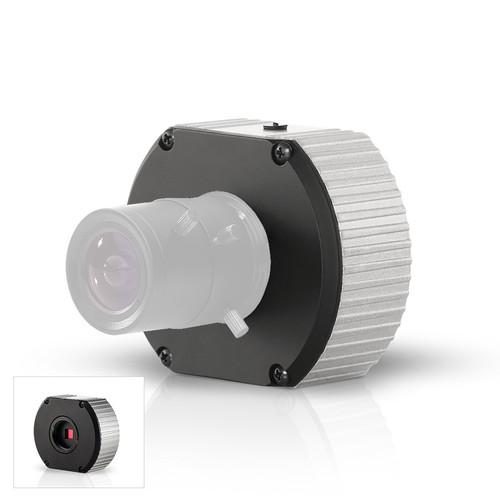

Product description The MegaVideo G5 Series AV3215DN 3MP PTZ IP Box Camera from Arecont Vision is a 1/3" sensor camera that supports video resolutions up to 2048 x 1536 at 21 fps. It features true day and night functionality with a mechanical IR cut filter and is compatible with select lenses (available separately). This camera has a 100Base-T Ethernet interface and features an alarm input and output. Power can be supplied via a Power-over-Ethernet-compliant network cable connection or a 12-48 VDC or 24 VAC power supply. This camera is ONVIF and Profile S compliant. - SNAPstream capability reduces bandwidth without impacting image quality
- Binning mode for strong low light performance
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Privacy mask, motion detection, flexible cropping, bit rate control, multi-streaming, multi-casting, and forensic zooming
- Small size for flexible mounting options
- Can be used with Arecont Vision housings (available separately) or as a standalone camera
- Electronic PTZ pan, tilt, and zoom
UPC: 847778000944 In the Box Arecont Vision MegaVideo AV3215DN G5 Series 3MP PTZ IP Box Camera with Night Vision (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaVideo AV3215DN G5 Series 3MP PTZ IP Box Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3215 Specs | | | Sensor | 3 MP 1/3" | | Lens Mount | CS | | Zoom | Digital | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.2 Lux
B&W: 0.02 Lux | | Shutter Speed | 1/1000 to 1/2 Seconds | | | | Streaming Resolution | 2048 x 1536 at 21 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 8 Streams | | | | Security | IEEE 802.1X | | Supported Protocols | DHCP, HTTP, IPv4/v6, QoS Layer 3 DiffServ, RTP, RTSP, TCP, TFTP, UDP | | | | Application Programming Interface (API) | ONVIF | | Event Trigger | Yes | | Event Action | Alarm | | | | Recording Media | None | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x Power
1 x RJ45 | | Certifications | EN 55022 Class A, EN 55024, FCC (Part 15 Class A), IEC 61000-3-2, IEC 61000-3-3, IEC60950-1, UL, as per Manufacturer | | Internal Storage | None | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | DC: 5 W | | Material of Construction | Aluminum | | Operating Temperature | 23 to 122°F / -5 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 90% | | Dimensions |
