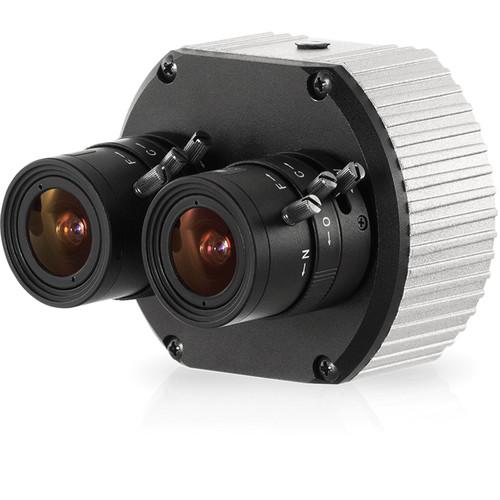

User Manual for Arecont Vision MegaVideo AV3236DN Indoor Day Night IP Box Camera with WDR & Dual Sensors Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaVideo AV3236DN Indoor Day
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaVideo AV3236DN Indoor Day contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaVideo AV3236DN Indoor Day/Night IP Box Camera with WDR & Dual Sensors from Arecont Vision is a H.264 camera that can be programmed to use the 3MP WDR color sensor in daylight conditions and the 1.2MP monochrome sensor in low light conditions. It can also stream video from both sensors simultaneously. It also features the binning mode that allows you to capture color images at illumination levels as low as 0.2 lux in the color mode. In addition, the true day/night capability with IR-cut filter and the 1.3MP monochrome sensor allow capturing B&W images in complete darkness.With the ability to digitally pan, tilt, and zoom images, you can view the details you need to see at any time, such as license plates, faces, and other objects of interest. This camera features a wide dynamic range of up to 100 dB at full resolution, which balances light and dark areas in the same scene such as in the lobby of an office building or the loading dock at a distribution facility.This camera provides ample resolution to zoom in for details in live or recorded video. H.264 compression reduces network bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing image quality. With bit rate control, the CPU load is decreased at both the client (decompression) side and the server/storage side, allowing lower bandwidth and storage relative to MJPEG. Real Time Streaming Protocol (RTSP) allows for compatibility with media players such as Apple QuickTime, VLC, and others. - Compact size for flexible mounting options
- 3MP WDR and 1.2MP B&W dual sensors
- Offers strong performance in low light and high contrast lighting conditions
- True WDR up to 100 dB at full resolution
- Wide dynamic range switch control
- Binning mode for strong low light performance
- True day/night functionality with removable IR-cut filter
- Privacy masking, motion detection, flexible cropping, bit-rate control, multi-streaming, and forensic zooming
- On-camera, real-time motion detection and privacy masking with 1024 detection zones
- Auto multi-matrix white balance
- 50/60Hz selectable flicker control
- Electronic pan, tilt, zoom (PTZ)
- Electronic Image Flip: 180° rotation
- Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264
- Programmable shutter speed to help control motion blur
- MoonLight mode for extended exposure and noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, and tint
- Simultaneous delivery of full field-of-view and zoomed images
- Bandwidth and storage savings by running at 1/4 resolution
- Bit rate and bandwidth limitation control
In the Box Arecont Vision MegaVideo AV3236DN Indoor Day/Night IP Box Camera with WDR & Dual Sensors CD with AV100 Software (License Key Required for Recording) D. C to CS Lens Adapter 0.5mm Lens Spacer Ring 6-Position External Power& IO Plug 0.05" Hex L-Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaVideo AV3236DN Indoor Day Night IP Box Camera with WDR & Dual Sensors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3236 Specs | | | Sensor | 3 MP color and 1.2 MP B&W CMOS image sensors | | Optical Format | 1/3.2" @ 3 MP
1/3" @ 1.2 MP | | Minimum Illumination | Color: 0.2 lux
Day & Night: 0 lux, IR sensitive | | Resolution | Full Field of View: 2048 x 1536 @ 3 MP, 1280 x 1024 @ 1.2 MP
1/4 Resolution: 1024 x 768, 640 x 512 @ 3 MP | | Wide Dynamic Range | Up to 100 dB | | Frame Rates | Full Resolution: 40 fps, 1.2 MP (1280 x 960), 18 fps, 3 MP (2048 x 1536)
Upscaled: 18 fps, 1.2 MP (2048 x 1536)
Dual Stream: 11 fps, 1.2 MP (1280 x 960), 3 MP (2048 x 1536)
Dual Stream Upscaled: 8 fps, 1.2 MP (2048 x 1536), 3 MP (2048 x 1536) | | | | Compression | H.264 (MPEG-4, part 10)/Motion JPEG, 21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Input/Output | General purpose opto-coupled input and output | | Power Over Ethernet | PoE 802.3af, Class 3 | | Power Consumption | DC: 4.5 W | | | | Operating Temperature | 23 to 122°F (-5 to 50°C) | | Humidity | 0 to 90% (non-condensing) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Compliance | Industry Standard: PSIA Conformant
Listings: UL (CB)
FCC Compliance: 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
Markings: (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1
Mechanical: IK-10 (EN62262), IP66 (EN60529) | | | | Casing | Die-cast aluminum chassis
C/CS lens mount | | Dimensions (W x H x D) | 3.00 x 2.50 x 1.25" (7.60 x 6.35 x 3.17 cm) without lens | | Weight | 5.8 oz (164.0 g) without lens |
