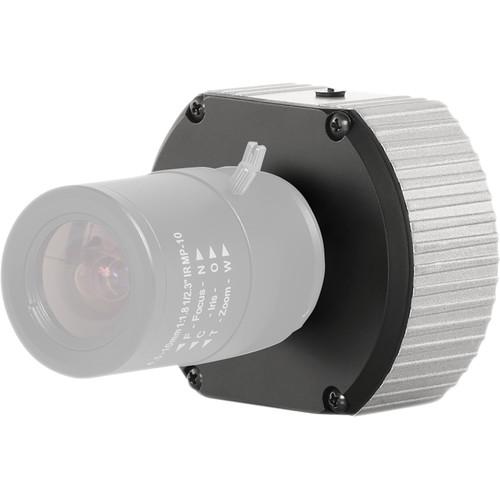

User Manual for Arecont Vision MegaVideo G5 AV5215DN 5MP Network Box Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaVideo G5 AV5215DN 5MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaVideo G5 AV5215DN 5MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description Capture video evidence at up to 2560 x 1920 resolution with the MegaVideo G5 AV5215DN 5MP Network Box Camera from Arecont Vision. Featuring a mechanical IR cut filter, this camera is designed to deliver high image quality both during the day and at night, even under challenging lighting conditions. The camera incorporates SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth use without impacting image quality. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
The camera is compatible with C-mount lenses, and includes a CS adapter, so you can choose the lens that best suits your needs. - SNAPstream technology reduces bandwidth use without impacting image quality
- True day/night functionality with mechanical IR cut filter
- Binning mode enhances performance under low-light conditions
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Privacy mask, motion detection, flexible cropping, bit rate control, multi-streaming, multicasting, and forensic zooming
- Network protocols include 802.1x, DHCP, QoS, and IPv6
- PoE and 12-48 VDC / 24 VAC auxiliary power
- Wide range of compatible lenses available separately
- Compact design and flexible mounting options
- Can be used as standalone camera or with separately available housings
In the Box Arecont Vision MegaVideo G5 AV5215DN 5MP Network Box Camera (No Lens) C to CS Lens Adapter 0.5mm Lens-Spacer Ring 6-Position External Power & I/O Plug 0.05 Hex L-Key Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaVideo G5 AV5215DN 5MP Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV5215 Specs | | | Sensor | 5 MP 1/2.5" | | Lens Mount | CS | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.15 Lux
B&W: 0.03 Lux | | Shutter Speed | 1/1000 to 1/2 Seconds | | | | Streaming Resolution | 2560 x 1920 at 14 fps
2048 x 1536 at 21 fps
1920 x 1080 at 29 fps
1280 x 1024 at 40 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 8 Streams | | | | Security | IEEE 802.1X | | Supported Protocols | DHCP, HTTP, IPv4/v6, ONVIF Profile S, QoS Layer 3 DiffServ, RTP, RTSP, TCP, UDP | | | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Alarm | | Data Streaming | Yes | | | | Recording Media | None | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | None | | Video Management Software | AV200 | | Certifications | UL, EN 55024, FCC (Part 15 Class A), as per Manufacturer | | Internal Storage | None | | Power Source | DC, PoE 802.3af | | Power Consumption | 5.3 W | | Material of Construction | Aluminum | | Operating Temperature | 23 to 122°F / -5 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 90% | | Dimensions | H: 2.6 x W: 3.0 x L: 1.3" / H: 6.6 x W: 7.6 x L: 3.3 cm | | Weight | 0.6 lb / 272 g |
