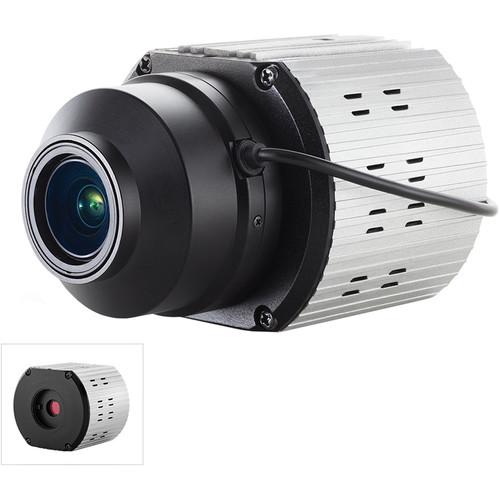

User Manual for Arecont Vision MegaVideo Ultra HD AV12ZMV-301 12MP Outdoor PTZ Network Box Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaVideo Ultra HD AV12ZMV-301
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaVideo Ultra HD AV12ZMV-301 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaVideo Ultra HD AV12ZMV-301 Outdoor PTZ Network Box Camera from Arecont Vision is a tri-mode network camera that supports 12MP resolution at 20 fps, 4K UHD resolution at 30 fps, and 1080p resolution at 60 fps. It features a day/night mechanical IR cut filter and is designed to be used with UHD4.4-10MPI, UHD12-50MPI, or UHD30-120MPI ultra high definition P-iris lenses (available separately). This camera features NightView for strong low-light performance. The SDHC memory card slot supports up to 32GB of local storage. This camera can be powered via PoE or by using a 12-24 VDC power supply (available separately). - 70.7 dB wide dynamic range
- SNAPstream (Smart Noise Adaptation and Processing) reduces bandwidth without impacting image quality
- Extended motion detection
- Small size for flexible mounting options
- 5-255 Hz adjustable flicker control
In the Box Arecont Vision MegaVideo Ultra HD AV12ZMV-301 12MP Outdoor PTZ Network Box Camera (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaVideo Ultra HD AV12ZMV-301 12MP Outdoor PTZ Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV12ZMV Specs | | | Sensor | 12 MP 1/1.7" CMOS | | Lens Mount | CS | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.03 Lux
B&W: 0.003 Lux | | Shutter Speed | 1/1000 to 1/2 Seconds | | | | Streaming Resolution | 3968 x 2992 at 20 fps
3840 x 2160 at 30 fps
1920 x 1080 at 60 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 4 Streams | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | DHCP, HTTP, IPv4/v6, RTP, RTSP, SNMP v1/v2c/v3 (MIB-II), SNTP, TCP, TFTP, UDP | | | | Event Trigger | Yes | | Event Action | Alarm | | Data Streaming | Yes | | | | Recording Media | SD (Up to 32 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x Power | | Certifications | EN 55022 Class A, EN 55024, FCC (Part 15 Class A), IEC 61000-3-2, IEC 61000-3-3, IEC60950-1, REACH, RoHS, UL, WEEE, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | DC: 10.7 W | | Material of Construction | Aluminum | | Operating Temperature | 23 to 113°F / -5 to 45°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 90% | | Dimensions | H: 2.6 x W: 3.0 x L: 2.4" / H: 6.6 x W: 7.6 x L: 6.1 cm | | Weight | 0.6 lb / 0.3 kg |
