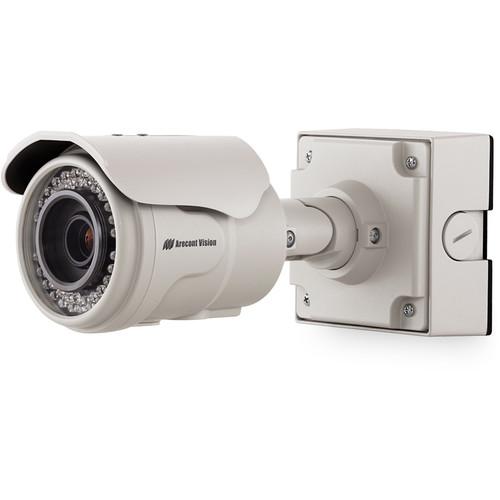

User Manual for Arecont Vision MegaView 2 Series 10MP Indoor Outdoor Weatherproof IR Day Night Bullet IP Camera with 12 to 22mm Telephoto P-Iris Lens Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaView 2 Series 10MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaView 2 Series 10MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaView 2 Series 10MP Indoor/Outdoor Weatherproof IR Day/Night Bullet IP Camera with 12 to 22mm Telephoto P-Iris Lens from Arecont Vision is capable of capturing images up to 3648 x 2752 at 7 fps and 1920 x 1080 at 25 fps. It offers H.264 and MJPEG dual compression support with simultaneous streaming for reduced bandwidth and storage requirements while delivering full frame rates and resolution without sacrificing image quality. The camera features CorridorView that allows 90° image rotation for better coverage in hallways and corridors and has an SDHC card slot for onboard storage.The camera features 4 IR LEDs that allow you to view clearly up to 200’ in complete darkness. The MegaView 2 series camera combines features remote focus, remote zoom, day/night, and P-iris capabilities. The camera can be installed without locally adjusting the field of view or focus. P-iris functionality provides better depth-of-field in varying lighting conditions. It is housed in a cylindrical enclosure with IP66-rated weatherproofing and is PoE (IEEE 802.3af) compliant. The camera is PSIA compliant and features privacy masking, extended motion detection, and flexible cropping. - Enhanced Low-Light Performance: Capture images even in total darkness with IR corrected lens
- Supports H.264 and MJPEG dual compression with simultaneous streaming
- Dual mode operation (1080p or 10MP)
- Remote focus/zoom motorized P-Iris Lens
- P-Iris control for maximum depth of field in almost any lighting condition to ensure optimum image quality
- Binning mode for efficient low-light performance
- IP66 weatherproof and tamper-resistant housing
- Supports PoE and requires no external power
- 4 IR LEDs for vision up to 200' in complete darkness
- Motion detection and privacy mask
- Multi-streaming and forensic zooming
- True day/night functionality with mechanical IR cut filter
- Programmable shutter speed to help control motion blur
- Flexible cropping (resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264)
- Low light noise filter control
- Bit rate and bandwidth limitation control
- Backlight compensation and multi-matrix white balance
- 50/60 Hz selectable flicker control
- Electronic pan, tilt, zoom (PTZ), and image flip 180°
- Programmable resolution, brightness, saturation, gamma, sharpness, and tint
- Easily adjustable 3-axis wall mount, junction box included
- User-friendly web interface
In the Box Arecont Vision MegaView 2 Series 10MP Indoor/Outdoor Weatherproof IR Day/Night Bullet IP Camera with 12 to 22mm Telephoto P-Iris Lens Junction Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaView 2 Series 10MP Indoor Outdoor Weatherproof IR Day Night Bullet IP Camera with 12 to 22mm Telephoto P-Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV10225 Specs | Image Sensor | 10 MP CMOS | | Optical Format | 1/2.3" | | Pixel Pitch | 1.67 μm | | Minimum Illumination | Color (Day Mode): 0.42 lux
Color Binning (Day Mode): 0.21 lux
B/W (Night Mode): 0 lux, IR sensitive | | Resolution | Full FOV: 3648 H x 2752 V
1/4 Resolution: 1824 H x 1376 V | | Dynamic Range | 57.2 dB | | SNR | 40 dB maximum | | Frame Rates | At Maximum Resolution: 7 fps (3648 x 2752)
Cropped: 12 fps (2592 x 1944), 18 fps (2048 x 1536), 25 fps (1920 x 1080), & 37 fps (1280 x 1024)
Binning Mode: 29 fps (1920 x 1080), 26 fps (1824 x 1376), 43 fps (1296 x 972), & 54 fps (1024 x 768) | | Lens | Motorized 12 to 22 mm, 1/2.3", F2.2 P-iris, H-FOV: 30 to 17° | | Compression Type | H.264 (MPEG-4, Part 10) / Motion JPEG
21 levels of quality | | Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet Network Interface | | Multi-Streaming | 8 non-identical streams | | Compliance | Industry Standard: PSIA Conformant
Listings: UL (CB)
FCC Compliance: 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
Markings: (CE) EN55022 Class A, EN55024,EN61000-3-2, EN61000-3-3, EN60950-1
Mechanical: IP66 (EN60529) | | IR Illuminator | 4 x 850nm LEDs
IR Angle: 33° (no external power required) | | IR Distance | 200' (61 m) maximum | | Power Consumption | 11.3 W maximum | | Alarm Input / Output | General purpose opto-coupled input | | Power Over Ethernet | PoE 802.3af, Class 2 | | Auxiliary Power Input | 12 to 48 VDC, 24 VAC | | Casing | Die-cast aluminum cylindrical (bullet-style) housing
IP66 weather-proof standard | | Mount | Easily adjustable 3-axis mount with 360° pan, 90° tilt, and 360° z-axis adjustment | | Temperature | Operating: -40 to 122°F (-40 to 50°C)
Stable Image: 32 to 122°F (0 to 50°C)
Storage: -40 to 140°F (-40 to 60°C) | | Humidity | 0 to 90% (non-condensing) | | Dimensions (H x W x D) | 4.7 x 4.7 x 11.1" (11.9 x 11.9 x 28.2 cm) | | Weight | 3.9 lb (1.8 kg) |
