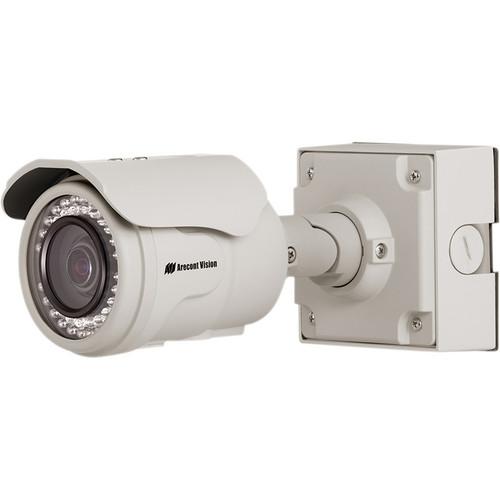

User Manual for Arecont Vision MegaView 2 Series 2.07MP Day Night IR Bullet Camera with 3-9mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaView 2 Series 2.07MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaView 2 Series 2.07MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaView 2 Series 2.07MP Day/Night IR Bullet Camera from Arecont Vision is capable of capturing images in 1080p resolution at full video frame rates of 31 fps. It offers H.264 and MJPEG dual compression with simultaneous streaming for reduced bandwidth and storage requirements, delivering full frame rates and resolution without sacrificing image quality. With bit rate control, the CPU load is decreased at both the client (decompression) side and the server/storage side, allowing lower bandwidth and storage relative to MJPEG. Real Time Streaming Protocol (RTSP) allows for compatibility with media players such as Apple QuickTime, VLC, and similar devices. The camera features integrated day/night capability with adaptive noise-cancellation that automatically switches from color to black/white operation, increasing sensitivity at night or in unlit spaces. In addition, the 48 IR LEDs allow you to clearly view up to 100’ in complete darkness. Focus scan functions analyze the local or full scene to determine the best focus for the chosen field of view, and P-iris functionality provides better depth of field in varying lighting conditions. The camera is PSIA compliant and features a Casino Mode, privacy masking, extended motion detection, and flexible cropping.
The camera can be installed without locally adjusting the field of view or focus. All lens operations can be remotely controlled from the head end, allowing you to refine the field of view and focus for easy local installation. The camera is housed in a vandal-resistant aluminum cylindrical enclosure with IP66-rated weatherproofing and is PoE (IEEE 802.3af) compliant. - Enhanced Low-Light Performance: Capture images even in total darkness with IR corrected lens
- Supports H.264 and MJPEG dual compression with simultaneous streaming
- Remote focus/zoom motorized P-Iris Lens
- Ability to choose wide or telephoto field of view depending on application requirements
- P-Iris control for maximum depth of field in almost any lighting condition to ensure optimum image quality
- Vandal-resistant and tamper-resistant housing with IP66 rating for use outdoors
- Supports PoE and requires no external power
- 48 IR LEDs for vision up to 100' in complete darkness
- Motion detection and privacy mask with up to 1024 detection zones
- Multi-streaming and forensic zooming
- True Day/Night functionality with mechanical IR cut filter
- Casino mode guarantees continuous 30 fps frame rate, required by gaming industry regulations
- Programmable shutter speed to help control motion blur
- Flexible Cropping (resolution windowing down to 1 x 1 pixel for MJPEG and 2 x 2 pixels for H.264)
- Low light noise filter control
- Bit rate and bandwidth limitation control
- Backlight compensation and multi-matrix white balance
- 50/60 Hz selectable flicker control
- Electronic pan, tilt, and zoom (PTZ) as well as image flip 180°
- Programmable resolution, brightness, saturation, gamma, sharpness, and tint
- Easily adjustable 3-axis wall mount; junction box included
- User-friendly web interface
In the Box Arecont Vision MegaView 2 Series 2.07MP Day/Night IR Bullet Camera with 3-9mm Varifocal Lens Junction Box Adapter Mounting Template Mounting Template for Junction Box Adapter CD with AV100 Software (License Key Required for Recording) Security L-Key Mounting Hardware Limited 3-Year Warranty Specification PDF 662.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaView 2 Series 2.07MP Day Night IR Bullet Camera with 3-9mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV2225 Specs | | | Image Sensor | 1/2.7" 2.07 MP CMOS | | Resolution | Full FOV: 1920 x 1080
1/4 Resolution: 960 x 540 | | Pixel Pitch | 3 μm | | Lens | 3-9mm, f/1.2 | | Frame Rates | 1920 x 1080: 31 fps
1280 x 1024: 42 fps | | Field of View | Horizontal: 115° to 37° | | Minimum Illumination | Color (Day Mode): 0.1 lux
B/W (Night Mode): 0 lux, IR sensitive | | IR Illuminator | 48 x 850 nm LEDs
IR Angle: 50° | | IR Distance | Up to 100.0' / 30.5 m | | Dynamic Range | 69 dB | | Signal to Noise Ratio | Maximum: 45 dB | | | | Compression Type | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Interface | 100Base-T Ethernet Network Interface | | Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Multi-Streaming | 8 non-identical streams | | | | Storage | None | | Power Consumption | 11.3 W (max) | | Power Over Ethernet | 802.3af, Class 2 | | Auxiliary Power Input | 12 to 48 VDC, 24 VAC | | Alarm Input / Output | General purpose opto-coupled input | | Temperature | Operating: -40 to 122°F (-40 to 50°C)
Stable Image: 32 to 122°F (0 to 50°C)
Storage: -40 to 60°F (-40 to 60°C) | | Humidity | 0 to 90% (non-condensing) | | Compliance | Industry Standard: PSIA Conformant
Listings: UL (CB)
FCC Compliance: 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
Markings: (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1
Mechanical: IP66 (EN60529) | | Mount | Easily adjustable 3-axis mount with 360° pan, 90° tilt, and 360° z-axis adjustment | | Casing | Die-cast aluminum, cylindrical
IP66-rated, weather proof
Vandal resistant | | Dimensions (H x W x D) | 4.7 x 4.7 x 11.1" (11.9 x 11.9 x 28.2 cm) | | Weight | 3.9 lb (1.76 kg) | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 13.6 x 7.7 x 7.2" |
