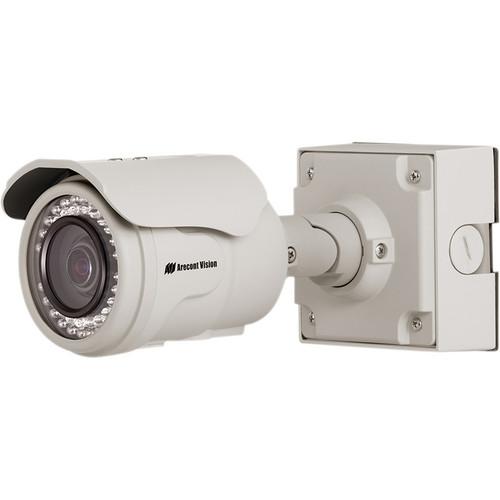

User Manual for Arecont Vision MegaView 2 Series 3MP Indoor Outdoor Vandal-Resistant IR Day Night Bullet IP Camera with 3 to 9mm P-Iris Lens Click to enlarge the picture
Contents of the user manual for the Arecont Vision MegaView 2 Series 3MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MegaView 2 Series 3MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MegaView 2 Series 3MP Indoor/Outdoor Vandal-Resistant IR Day/Night Bullet IP Camera with 3 to 9mm P-Iris Lens from Arecont Vision is capable of capturing images up to 2048 x 1536 at 21 fps and 1920 x 1080 at 29 fps with MegaVideo processing technology. It offers H.264 and MJPEG dual compression support with simultaneous streaming for reduced bandwidth and storage requirements while delivering full frame rates and resolution without sacrificing image quality. With bit rate control, the CPU load is decreased at both the client (decompression) side and the server/storage side, allowing lower bandwidth and storage relative to MJPEG. Real Time Streaming Protocol (RTSP) allows for compatibility with media players such as Apple QuickTime, VLC, and others.The camera features integrated Day/Night capability with adaptive noise-cancellation that automatically switches from color to black/white operation to increase sensitivity at night or in unlit spaces. In addition, the 48 IR LEDs allow you to view clearly up to 82’ in complete darkness. The MegaView 2 series camera combines features remote focus, remote zoom, Day/Night, and P-iris capabilities. The camera can be installed without locally adjusting the field of view or focus. All lens operations can be remotely controlled from the head end to refine the field of view and focus of the scene for easy local installation. Short or full range focus scan functions analyze the local or full scene to determine the best focus for the chosen field of view. P-iris functionality provides better depth of field in varying lighting conditions.The camera is housed in a vandal-resistant aluminum cylindrical enclosure with IP66-rated weatherproofing and is PoE (IEEE 802.3af) compliant. The camera is PSIA compliant and features privacy masking, extended motion detection, and flexible cropping. - Enhanced Low-Light Performance: Capture images even in total darkness with IR corrected lens
- Supports H.264 and MJPEG dual compression with simultaneous streaming
- Remote focus/zoom motorized P-Iris Lens
- Ability to choose wide or telephoto field of view depending on application requirements
- P-Iris control for maximum depth of field in almost any lighting condition to ensure optimum image quality
- Binning mode for efficient low-light performance
- IP66 vandal-resistant and tamper-resistant housing
- Supports PoE and requires no external power
- 48 IR LEDs for vision up to 82' in complete darkness
- Motion detection and privacy mask with up to 1024 detection zones
- Multi-streaming and forensic zooming
- True Day/Night functionality with mechanical IR cut filter
- Programmable shutter speed to help control motion blur
- Flexible Cropping (resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264)
- Low light noise filter control
- Bit rate and bandwidth limitation control
- Backlight compensation and multi-matrix white balance
- 50/60 Hz selectable flicker control
- Electronic pan, tilt, zoom (PTZ) and image flip 180°
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Easily adjustable 3-axis wall mount, junction box included
- User-friendly web interface
In the Box Arecont Vision MegaView 2 Series 3MP Indoor/Outdoor Vandal-Resistant IR Day/Night Bullet IP Camera with 3 to 9mm P-Iris Lens Junction Box Adapter Mounting Template Mounting Template for Junction box Adapter CD with AV100 software (License Key Required for Recording) Security L-key Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MegaView 2 Series 3MP Indoor Outdoor Vandal-Resistant IR Day Night Bullet IP Camera with 3 to 9mm P-Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3225 Specs | Image Sensor | CMOS 3 MP (effective) | | Optical Format | 1/2.5" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (Day Mode): 0.3 lux
Color Binning (Day Mode): 0.15 lux
B/W (Night Mode): 0 lux, IR sensitive | | Resolution | Full FOV: 2048 H x 1536 V
1/4 Resolution: 1024 H x 768 V | | Dynamic Range | 70.1 dB | | SNR | 45 dB maximum | | Frame Rates | At Maximum Resolution: 21 fps (2048 x 1536)
Cropped: 29 fps (1920 x 1080) & 41 fps (1280 x 1024)
Binning Mode: 46 fps (1024 x 768) & 64 fps (960 x 540) | | Lens | Motorized 3 to 9 mm, 1/2.7", F1.2, RZ, RF, P-iris H-FOV: 27 to 92° | | Compression Type | H.264 (MPEG-4, Part 10) / Motion JPEG
21 levels of quality | | Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet Network Interface | | Multi-Streaming | 8 non-identical streams | | Compliance | Industry Standard: PSIA Conformant
Listings: UL (CB)
FCC Compliance: 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
Markings: (CE) EN55022 Class A, EN55024,EN61000-3-2, EN61000-3-3, EN60950-1
Mechanical: IP66 (EN60529) | | IR Illuminator | 48 x 850 nm LEDs
IR Angle: 50° (no external power required) | | IR Distance | 82' (25 m) maximum | | Power Consumption | 11.5 W maximum | | Alarm Input / Output | General purpose opto-coupled input | | Power Over Ethernet | PoE 802.3af, Class 2 | | Auxiliary Power Input | 12 to 48 VDC, 24 VAC | | Casing | Die-cast aluminum cylindrical (bullet-style) housing
IP66 weather proof standard
Vandal resistant | | Mount | Easily adjustable 3-axis mount with 360° pan, 90° tilt, and 360° z-axis adjustment | | Temperature | Operating: -40 to 122°F (-40 to 50°C)
Stable Image: 32 to 122°F (0 to 50°C)
Storage: -40 to 60°F (-40 to 60°C) | | Humidity | 0 to 90% (non-condensing) | | Dimensions (H x W x D) | 4.7 x 4.7 x 11.1" (11.9 x 11.9 x 28.2 cm) | | Weight | 3.9 lb (1.76 kg) | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 13.6 x 7.6 x 7.2" |
