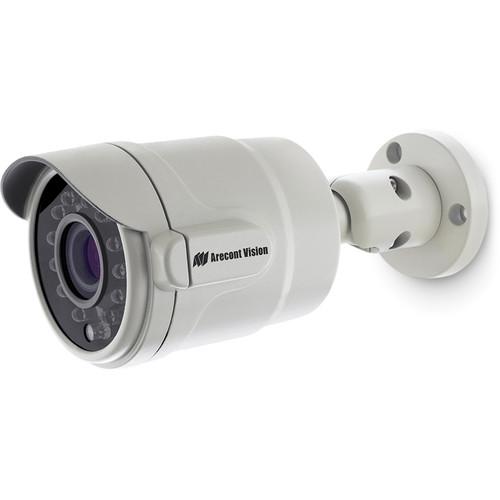

User Manual for Arecont Vision MicroBullet AV3325DNIR 3MP Outdoor Network Bullet Camera with SNAPstream & Night Vision Click to enlarge the picture
Contents of the user manual for the Arecont Vision MicroBullet AV3325DNIR 3MP Outdoor
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MicroBullet AV3325DNIR 3MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MicroBullet AV3325DNIR 3MP Outdoor Network Bullet Camera from Arecont Vision utilizes a 1/3" CMOS image sensor and 2.8 to 8mm varifocal lens. With a built-in IR cut filter and integrated IR LEDs, this camera can capture images in complete darkness at a distance up to 50'. It features CorridorView for better coverage of hallways and corridors. The camera uses SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting the image quality.
The camera's built-in remote focus capability allows for rapid set up by simply clicking on short-range focus or full-range focus. The three-axis lens adjustment provides multiple camera placement options, allowing the camera to be easily mounted on a wall or ceiling, while allowing you to pan, tilt, and rotate the lens in a variety of directions for a precise field of view. Its installer-friendly enclosure shortens the installation process.
The MicroBullet camera comes in an IP66-rated surface mount, suitable for indoor as well as outdoor applications. It also features an IK10-rated impact-resistant cast-aluminum housing, capable of withstanding the equivalent of 120 lb of force. The camera is ONVIF Profile S (Open Network Video Interface Forum) and and PSIA compliant, providing interoperability between network video products. - 3MP, 2048 x 1536 resolution
- SNAPstream (Smart Noise Adaptation and Processing) capability to reduce bandwidth without impacting image quality
- True day/night functionality with mechanical IR cut filter
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Privacy mask, motion detection, flexible cropping, bit rate control, multi-streaming, multicasting, and forensic zooming
- 2.8 to 8mm varifocal lens
- Easily adjustable 3-axis wall mount
- Network protocols include 802.1x, IPv6, QoS, DHCP, and more
- H.264 PoE (Power over Ethernet) solution
- IK10 impact-resistant housing
In the Box Arecont Vision MicroBullet AV3325DNIR 3MP Outdoor Network Bullet Camera with SNAPstream & Night Vision (2.8 to 8mm Varifocal Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MicroBullet AV3325DNIR 3MP Outdoor Network Bullet Camera with SNAPstream & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3325 Specs | | | Image Sensor | 1/3" 3 MP CMOS | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (Day Mode): 0.2 lux
Color Binning (Day Mode): 0.1 lux
B&W (Night Mode): 0.02 lux, IR sensitive | | Resolution | Full FOV Resolution (H x V): 2048 x 1536
1/4 Resolution (H x V): 1024 x 768 | | Dynamic Range | 69.5 dB | | Frame Rates | 2048 x 1536 at 21 fps (maximum resolution)
1920 x 1080 at 30 fps (cropped)
1280 x 1024 at 41 fps (cropped)
1024 x 768 at 46 fps (binning mode)
960 x 540 at 64 fps (binning mode) | | Lens | 2.8 to 8mm, 1/2.5", f/1.6, integrated | | Horizontal Field-of-View | 100° to 49° | | | | LEDs | 12 x 850 nm LEDs | | Projection Distance | 50' / 15 m | | Projection Angle | 60° and 75° | | | | Optics | Remote focus and remote zoom | | Performance | Pixel binning mode | | Picture-in-Picture | Simultaneous delivery of full field of view and zoomed images | | Shutter Speed | Programmable: Controls motion blur, 1 to 500 ms | | Motion Detection | Real-time, 1024 detection zones | | Privacy Masking | Unlimited | | Casino Mode | Maintains 30 fps or higher | | Cropping | Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264 | | Backlight Compensation | Reference windows for auto exposure and white balance | | Flicker Rate | 5 to 255 Hz adjustable | | Image Rotation | CorridorView (90°, 180°, and 270° image rotation) | | Noise Reduction | SNAPstream (Smart Noise Adaptation and Processing) technology | | Efficiency | Bit rate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | Other Features | Programmable resolution, brightness, saturation, gamma, and tint
Electronic pan, tilt, and zoom (PTZ) | | | | Compression Type | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, QoS, IPv4, IPv6, 802.1x | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Standard | ONVIF Profile S and PSIA conformant | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, and WEEE | | Certifications | EN55022 Class A (CE), EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 | | Ratings | IP66 (EN60529), IK10 | | | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -40 to 140°F / -40 to 60°C | | | | Power Over Ethernet | PoE 802.3af, Class 3 | | | | Casing | Die-cast aluminum cylindrical (bullet-style) housing | | Mount | Easy 3-axis camera adjustment with 359° pan, 90° tilt, and 360° z-axis | | Dimensions | 2.8 x 3.4 x 6.8" / 71 x 86 x 173 mm | | Weight | 1.01 lb / 0.46 kg |
