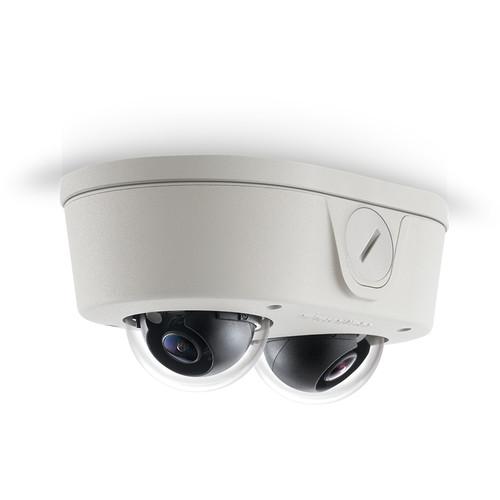

User Manual for Arecont Vision MicroDome Duo-Series 10MP Indoor Outdoor IP Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Arecont Vision MicroDome Duo-Series 10MP Indoor
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MicroDome Duo-Series 10MP Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MicroDome Duo-Series 10MP IP Dome Camera from Arecont Vision features twin 5MP cameras in a compact housing, providing a total of 10MP resolution. Each camera comes with a 2.8mm fixed lens for a horizontal field of view of 114°. The MicroDome Duo camera offers true day/night functionality via dual mechanical IR cut filters. It also features CorridorView for better coverage of hallways and corridors. The camera uses SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting the image quality. The camera's built-in remote focus capability allows for rapid set up by simply clicking on short-range focus or full-range focus. The three-axis lens adjustment provides multiple camera placement options, allowing the camera to be easily mounted on a wall or ceiling, while allowing you to pan, tilt, and rotate the lens in a variety of directions for a precise field of view. Its installer-friendly enclosure shortens the installation process. The MicroDome Duo camera comes in an IP66-rated surface mount, suitable for indoor as well as outdoor applications. It also features an IK10-rated impact-resistant cast-aluminum housing with dual polycarbonate bubbles, capable of withstanding the equivalent of 120 lb of force. This camera is suitable for applications like coverage of a hallway or walkway, monitoring POS terminals or ATMs, or for viewing of a single wide area or two distinct regions. - Two 5MP sensors combine to give a total of 10MP resolution
- Each camera comes with a 2.8mm lens
- SNAPstream (Smart Noise Adaptation and Processing) technology reduces bandwidth without impacting image quality
- Strong low-light performance with binning mode
- True day/night functionality with mechanical IR cut filter
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Privacy mask, motion detection, flexible cropping, bitrate control, multi-streaming, multicasting, and forensic zooming
- Network protocols include DHCP, and more
- All-in-one H.264 total PoE solution
- Easily adjustable 3-axis gimbal
- Ultra low-profile design / small size
- IK10 impact-resistant housing
- IP66-rated for ingress protection, suitable for indoor as well as outdoor applications
In the Box Arecont Vision MicroDome Duo-Series 10MP Indoor/Outdoor IP Dome Camera with Night Vision (2.8mm Lens) Mounting Plate Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MicroDome Duo-Series 10MP Indoor Outdoor IP Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV10655 Specs | | | Image Sensor | 10 MP (2 x 5 MP) CMOS | | Optical Format | 1/2.5" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (Day Mode): 0.3 lux
Color Binning (Day Mode): 0.15 lux
B/W (Night Mode): 0.03 lux, IR sensitive | | Resolution | Full FOV Resolution (H x V):
Total: 5120 x 1920
Per Sensor: 2560 x 1920
1/4 Resolution (H x V):
Total: 2560 x 960
Per Sensor: 1296 x 960 | | Dynamic Range | 70.1 dB | | Frame Rates | At Maximum Resolution:
7 fps (5120 x 1920)
At 1/4 Resolution:
10 fps (2560 x 960)
Frame Rates Binning Mode:
26 fps (2560 x 960) | | Lens | 2 x 2.8mm, f/1.8 | | Horizontal Field-of-View | 114° | | | | Optics | M12 lens and remote focus module | | Low Light Capability | Pixel binning mode | | Picture-in-Picture | Simultaneous delivery of full field of view and zoomed images | | Shutter Speed | Programmable, controls motion blur (1 to 500 ms) | | Motion Detection | Real-time, 1024 detection zones | | Privacy Masking | Unlimited | | Cropping | Flexible Cropping:
Any resolution multiple of 2 for H.264
Any image width multiple of 64 for JPEG full resolution
Any image width multiple of 128 for JPEG half resolution
No restriction on image height for JPEG | | Backlight Compensation | Reference windows for auto exposure and white balance | | Flicker Frequency | 50 / 60 Hz selectable | | Image Rotation | CorridorView (90°, 180°, and 270° image rotation) | | Noise Reduction | SNAPstream (Smart Noise Adaptation and Processing) technology | | Efficiency | Bitrate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | PTZ | Electronic | | Miscellaneous Features | Programmable resolution, brightness, saturation, gamma, tint | | | | Compression Type | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Alarm Input / Output | 1 x Input
1 x Output
General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 3 | | Maximum Power Consumption | 7.9 W (DC power) | | | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Humidity | 0 to 90% (non-condensing) | | | | Industry Standards | ONVIF Profile S | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Mechanical | IP66 (EN60529), IK-10 | | Marking | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 | | | | Casing | Surface mount with die-cast aluminum housing and 2" / 5.1 cm polycarbonate dome bubble
Tamper-resistant housing
IK10-rated impact-resistant and IP66-rated weather-resistant
3/4" NPT | | Mount | Mount plate with electrical box adapter holes (included) | | Gimbal | Easily adjustable, 3-axis with 360° pan, 90° tilt, and 360° z-axis | | Dimensions | 2.83 x 4.06 x 6.42" / 71.9 x 103 x 163 mm | | Weight | 1.95 lb / 0.88 kg | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 7.2 x 5.0 x 3.7" |
