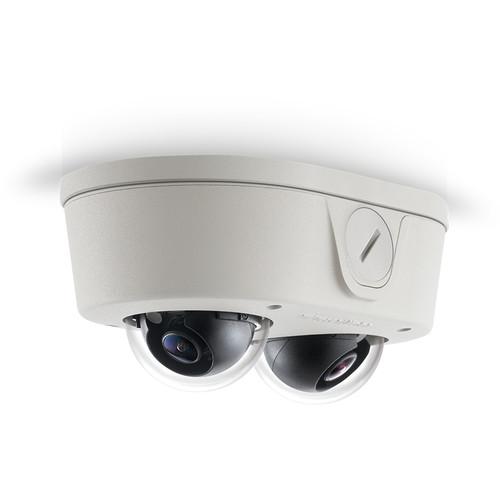

Product description The MicroDome Duo-Series 4MP IP Dome Camera from Arecont Vision features twin 1080p cameras in a compact housing, providing a total of 4MP resolution. Each camera comes with a 2.8mm fixed lens for a horizontal field of view of 83°. The MicroDome Duo camera offers true day/night functionality via dual mechanical IR cut filters. Thanks to the Wide Dynamic Range (WDR) feature, this MicroDome Duo camera can produce clear images when used in areas having strong backlight, reflections from wet flooring/puddles, or contrast due to fog, mist, or glare. It also features CorridorView for better coverage of hallways and corridors. The camera uses SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting the image quality. The camera's built-in remote focus capability allows for rapid set up by simply clicking on short-range focus or full-range focus. The three-axis lens adjustment provides multiple camera placement options, allowing the camera to be easily mounted on a wall or ceiling, while allowing you to pan, tilt, and rotate the lens in a variety of directions for a precise field of view. Its installer-friendly enclosure shortens the installation process. The MicroDome Duo camera comes in an IP66-rated surface mount, suitable for indoor as well as outdoor applications. It also features an IK10-rated impact-resistant cast-aluminum housing with dual polycarbonate bubbles, capable of withstanding the equivalent of 120 lb of force. This camera is suitable for applications like coverage of a hallway or walkway, monitoring POS terminals or ATMs, or for viewing of a single wide area or two distinct regions. - Two 1080p sensors combine to give a total of 4MP resolution
- Each camera comes with a 2.8mm lens
- SNAPstream (Smart Noise Adaptation and Processing) technology reduces bandwidth without impacting image quality
- True day/night functionality with mechanical IR cut filter
- True WDR up to 100 dB at full resolution
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Privacy mask, motion detection, flexible cropping, bitrate control, multi-streaming, multicasting, and forensic zooming
- Network protocols include DHCP, and more
- All-in-one H.264 total PoE solution
- Easily adjustable 3-axis gimbal
- Ultra low-profile design / small size
- IK10 impact-resistant housing
- IP66-rated for ingress protection, suitable for indoor as well as outdoor applications
In the Box Arecont Vision MicroDome Duo-Series 4MP Indoor/Outdoor IP Dome Camera with Night Vision & WDR (2.8mm Lens) Mounting Plate Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MicroDome Duo-Series 4MP Indoor Outdoor IP Dome Camera with Night Vision & WDR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV4656 Specs | | | Image Sensor | 4 MP (2 x 1080p) CMOS | | Optical Format | 1/3.2" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (Day Mode): 0.2 lux
B/W (Night Mode): 0.02 lux, IR sensitive | | Resolution | Full FOV Resolution (H x V):
Total: 3840 x 1080
Per Sensor: 1920 x 1080
1/4 Resolution (H x V):
Total: 1920 x 540
Per Sensor: 960 x 540 | | Dynamic Range | WDR up to 100 dB | | Frame Rates | At Maximum Resolution:
15 fps (3840 x 1080)
At 1/4 Resolution:
24 fps (1920 x 590) | | Lens | 2 x 2.8mm, f/1.8 | | Horizontal Field-of-View | 83° | | | | Optics | M12 lens and remote focus module | | Picture-in-Picture | Simultaneous delivery of full field of view and zoomed images | | Shutter Speed | Programmable, controls motion blur (1 to 500 ms) | | Motion Detection | Real-time, 1024 detection zones | | Privacy Masking | Unlimited | | Cropping | Flexible Cropping:
Any resolution multiple of 2 for H.264
Any image width multiple of 64 for JPEG full resolution
Any image width multiple of 128 for JPEG half resolution
No restriction on image height for JPEG | | Backlight Compensation | Reference windows for auto exposure and white balance | | Flicker Frequency | 50 / 60 Hz selectable | | Image Rotation | CorridorView (90°, 180°, and 270° image rotation) | | Wide Dynamic Range | Auto switch control adjustment between WDR and LDR modes | | Noise Reduction | SNAPstream (Smart Noise Adaptation and Processing) technology | | Efficiency | Bitrate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | PTZ | Electronic | | Miscellaneous Features | Programmable resolution, brightness, saturation, gamma, tint | | | | Compression Type | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Alarm Input / Output | 1 x Input
1 x Output
General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 3 | | Maximum Power Consumption | 7.9 W (DC power) | | | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Humidity | 0 to 90% (non-condensing) | | | | Industry Standards | ONVIF Profile S | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Mechanical | IP66 (EN60529), IK-10 | | Marking | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 | | | | Casing | Surface mount with die-cast aluminum housing and 2" / 5.1 cm polycarbonate dome bubble
Tamper-resistant housing
IK10-rated impact-resistant and IP66-rated weather-resistant
3/4" NPT | | Mount | Mount plate with electrical box adapter holes (included) | | Gimbal | Easily adjustable, 3-axis with 360° pan, 90° tilt, and 360° z-axis | | Dimensions | 2.83 x 4.06 x 6.42" / 71.9 x 103 x 163 mm | | Weight | 1.95 lb / 0.88 kg | | | | Box Dimensions (LxWxH) | 7.0 x 4.9 x 3.9" |
